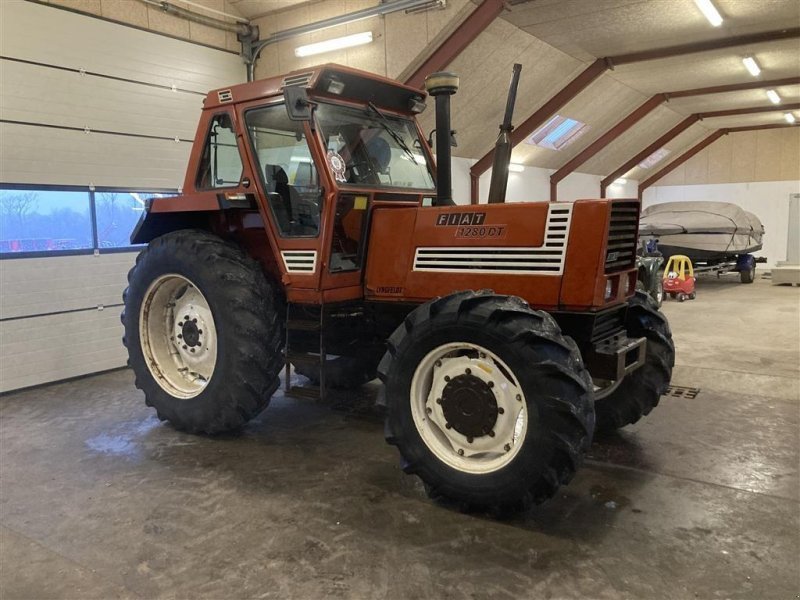

Fiat Trattori 1280 (DT)
Built: 1979–1984 · Series: 80 er-Baureihe
More machines from model year 1979
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Fiat 80 series (1976–1984) – 580 to 1880: the successor to the Nastro d'Oro, the first digits as hp, DT for four-wheel drive, the five-cylinder 880-5 and the 1880 with 8.1-litre turbo, 43 to 133 kW
The 80 series replaced the Nastro d'Oro types from 1976 and was Fiat Trattori's programme until the renaming to Fiatagri in 1984 – the range with which Fiat rose to become Europe's largest tractor maker. The type logic: the first digits roughly give the output in hp, the 80 the series – 580 about 55 hp, 880 about 88 hp, 1180 about 110 hp, 1880 about 180 hp – DT stands for Doppia Trazione, four-wheel drive. The engines are Fiat's own direct-injection units with three to six cylinders; the 880-5 is the range's special case, a five-cylinder of 4.6 litres Fiat derived from the four-cylinder modular family, and the 1880 with its 8.1-litre turbo six was the strongest Fiat standard tractor of its time.
Read on 3 more paragraphs
The register lists 11 versions with 42.7 to 132.5 kW, 2,750 to 8,102 cm³ with three to six cylinders, torque from 179 to 684 Nm, unladen weights from 2,335 to 6,500 kg, lengths from 3,298 to 4,365 mm, widths from 1,750 to 2,360 mm and heights from 2,504 to 2,865 mm – all diesel.
The 80s brought the cab as standard equipment and the eighteen-speed transmissions with which Fiat sold in France, Spain, Germany and the Eastern Bloc; their design lived on in the 90 series that followed in 1984 under the Fiatagri name.
Used 80s are common farmyard tractors in southern Europe with good parts supply; when buying, engine condition, gearbox and clutch, hydraulics and the front axle on DT models and the cab, whose sheet metal rusts on older examples, are what count.
Sources: SpecCodex register, model data: Fiat Trattori 80er-Baureihe, Fiat Trattori (Wikipedia)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 125 hp (92 kW)correct |
| Rated speed | 2,550 rpmcorrect |
| Torque | 403 Nmcorrect |
| Speed at max. torque | 1,450 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 5,499 cm³correct |
| Bore | 103 mmcorrect |
| Stroke | 110 mmcorrect |
| Compression ratio | 15.7correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,182 mmcorrect |
|---|---|
| Width | 2,360 mmcorrect |
| Height | 2,842 mmcorrect |
| Wheelbase | 2,750 mmcorrect |
| Ground clearance | 500 mmcorrect |
| Unladen weight | 5,450 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 12 V/4 R, 24 V/8 R or 12 V/12 Rcorrect |
| Front tyres | 11.00-16 ASF (DT: 14.9 R 28 AS)correct |
| Rear tyres | 18.4 R 38 AScorrect |
| Top speed | 25 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 16.9 kW/t (92 kW / 5.5 t)
Power class: Large (100–180 hp)
Stronger than 76% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Fiat Trattori 1280 (DT) have?
The Fiat Trattori 1280 (DT) delivers 125 hp.
How much does the Fiat Trattori 1280 (DT) weigh?
The unladen weight is 5,450 kg.
What engine does the Fiat Trattori 1280 (DT) have?
6 cylinders, 5,499 cm³ displacement, Diesel.
How fast does the Fiat Trattori 1280 (DT) go?
Top speed is 25 km/h.
What are the dimensions of the Fiat Trattori 1280 (DT)?
4,182 mm × 2,360 mm × 2,842 mm.
When was the Fiat Trattori 1280 (DT) built?
Production years: 1979–1984.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
