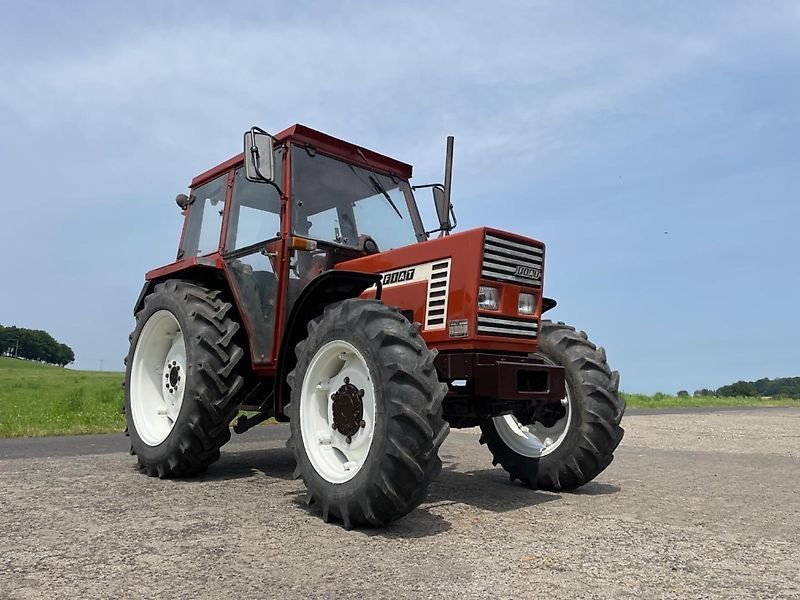

Fiat Trattori 566 (DT)
Lata produkcji: 1982–1986 · Seria: 66 er-Baureihe
Dane techniczne
| Construction | Blockbauweise |
| Cooling | Wasserkühlung |
| Cylinders | 3 |
| Displacement cm3 | 2750 cm3 |
| Drive type | Heck- oder Allradantrieb |
| Fuel | Diesel |
| Gearbox | 12 V/4 R, 20 V/8 R und 12 V/12 R |
| Ground clearance mm | 525 mm |
| Height mm | 2390 mm |
| Length mm | 3249 mm |
| Power km | 58 KM |
| Power kw | 42.7 kW |
| Rated rpm | 2.500 obr./min |
| Tires front | 7.50-16 ASF (DT: 9.5-24 AS) |
| Tires rear | 16.9-28 AS |
| Top speed kmh | 25 km/h |
| Weight kg | 2380 kg |
| Wheelbase mm | 2175 mm |
| Width mm | 1920 mm |
