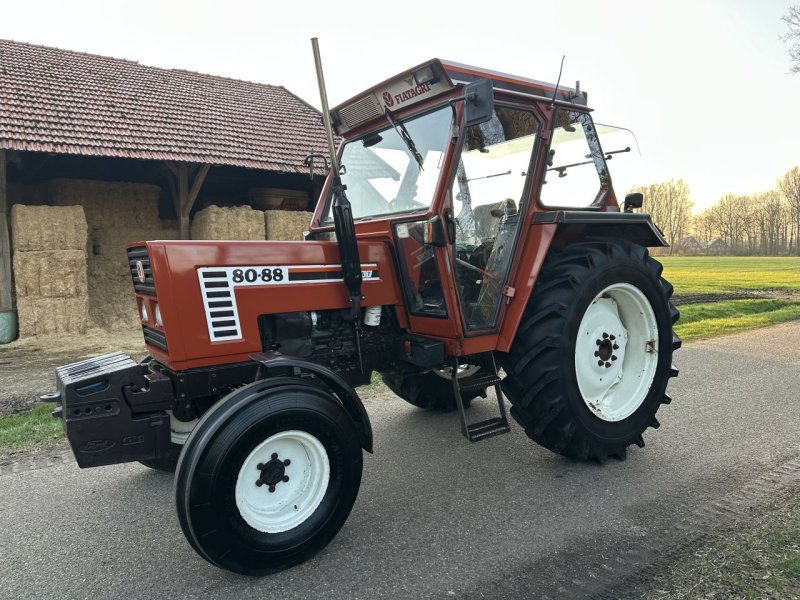

Fiat 80-88/80-88 DT
Built: 1989–1993 · Series: 88
More machines from model year 1989
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Fiat 80-88/80-88 DT: water-cooled four-cylinder diesel tractor from the 88 series, 3,908 cc, 58.8 kW, also with four-wheel drive (DT), built 1989 to 1993
Fiat was an Italian vehicle manufacturer based in Turin whose agricultural machinery division was among Europe's significant tractor makers before becoming independent as Fiatagri and later being absorbed into New Holland. Among Italian manufacturers, the designation DT stands for doppia trazione, meaning four-wheel drive; the 80-88 was offered both with and without it.
Read on 3 more paragraphs
The Fiat 80-88 is powered by a water-cooled four-cylinder diesel engine of 3,908 cc, producing 80 hp, or 58.8 kW, and 267 Nm of torque at 2,500 rpm. At a weight of 3,430 kg, a length of 3,680 mm, a height of 2,610 mm and a width of 2,200 mm, the machine reaches a top speed of 38 km/h.
A four-cylinder diesel engine of nearly 3.9 litres and around 59 kW belonged, at the end of the 1980s, to the upper mid-range of field tractors, suited to tillage with larger implements and trailer work. The four-wheel-drive DT version improves traction on loose or sloping ground compared with the rear-wheel-drive version, for instance during spring tillage.
When buying a Fiat 80-88 in DT form secondhand, the condition of the front axle differential and the four-wheel-drive joints matters most, since these assemblies carry considerably higher loads than on a tractor without four-wheel drive. Also worth checking are the clutch and gearbox, the cooling system of the water-cooled engine, and the brakes; spare parts for this common series are readily available through the open parts trade.
Sources: SpecCodex-Register: Kennwerte des Modells Fiat 80-88/80-88 DT
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 80 hp (58.8 kW)correct |
| Rated speed | 2,500 rpmcorrect |
| Torque | 267 Nmcorrect |
| Cylinders | 4correct |
| Displacement | 3,908 cm³correct |
| Bore | 104 mmcorrect |
| Stroke | 115 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,680 mmcorrect |
|---|---|
| Width | 2,200 mmcorrect |
| Height | 2,610 mmcorrect |
| Ground clearance | 430 mmcorrect |
| Unladen weight | 3,430 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Front tyres | 340/65 R 24correct |
| Rear tyres | 420/65 R 34correct |
| Top speed | 38 km/hcorrect |
Where this model stands
Power-to-weight ratio: 17.1 kW/t (59 kW / 3.4 t)
Power class: Universal (40–100 hp)
Stronger than 54% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Fiat 80-88/80-88 DT have?
The Fiat 80-88/80-88 DT delivers 80 hp.
How much does the Fiat 80-88/80-88 DT weigh?
The unladen weight is 3,430 kg.
What engine does the Fiat 80-88/80-88 DT have?
4 cylinders, 3,908 cm³ displacement, Diesel.
How fast does the Fiat 80-88/80-88 DT go?
Top speed is 38 km/h.
What are the dimensions of the Fiat 80-88/80-88 DT?
3,680 mm × 2,200 mm × 2,610 mm.
When was the Fiat 80-88/80-88 DT built?
Production years: 1989–1993.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 19 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Sources: [1]
