Fendt 615 LSA
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

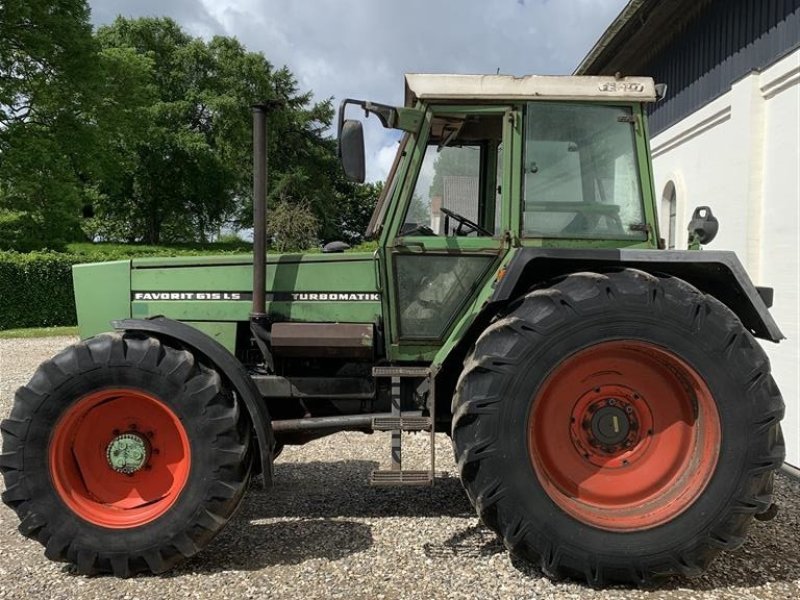

The Fendt 615 LSA is part of the tractor line produced by Fendt. It belongs to the L series and was built in recent years. The machine is equipped with a 6‑cylinder engine and a 20/9 full‑synchronised fine‑step gearbox.
With a rated speed of 2 400 rpm and a maximum torque of 630 Nm, the engine provides high start‑up and pulling torque, which is valuable for heavy field tasks. The unit offers 20 forward and 9 reverse gears, allowing fine speed adjustment from low field speeds up to the top speed of 40 km/h. A wheelbase of 2 690 mm and a width of 2 380 mm give a compact footprint suitable for tight rows, while the height of 2 898 mm provides sufficient clearance for implements. The 222‑l fuel tank enables long work periods without frequent refuelling, and the pump speed of 750/1000 rpm supports lifting heavy loads.
The 615 LSA is intended for typical work in the middle to large tractor class. With its high gear count and robust Cat III lift category, it is well suited for heavy implements such as ploughs, harvesters or mulcher systems. The combination of strong torque, wide gear range and adequate top speed makes it a fitting choice for extensive field operations where both pulling power and speed are required.
Fendt – other models: the collective page of tractors outside the named ranges, from the Farmer and Favorit types of the LS and LSA era (308 LSA, 312 LSA) through the narrow-track 200 V/F/P to the Vario generations 300
This page gathers the Fendt tractors the register could not assign to a named range – the brand from Marktoberdorf in the Allgäu that began in 1930 with the Dieselross, presented with the Vario in 1995 the first production-ready stepless transmission in farm machinery and has belonged to AGCO since 1997. The type logic: the Farmer and Favorit ranges of the 1970s to 1990s give the range and size in the three-digit number (Farmer 308 as a 300, Favorit 612 as a 600), LS, LSA and Turbomatik the equipment, cab and turbo-clutch drive; since 1995 all tractors are called Vario, with the first digit as range (200 to 1000) and the following ones as power step – 312 Vario about 120 hp, 724 Vario about 240 hp, 1050 Vario about 500 hp – the suffixes V, F and P mark the narrow-track models of the 200s for vineyard, orchard and plantation, Gen3 to Gen7 the generations, Profi and Power the equipment lines. The engines came from MWM and Deutz in the old, Sisu and AGCO Power in the medium and MAN in the big 900 and 1000 ranges.
Read on 3 more paragraphs
The register lists here 204 versions with 3 to 368 kW from one- to six-cylinders of 308 to 12,419 cm³, PTO outputs from 106 to 300 hp on the recorded big tractors, torque from 204 to 2,400 Nm, unladen weights from 510 to 23,000 kg, lengths from 2,750 to 6,157 mm and widths from 1,073 to 3,000 mm.
Fendt is the premium brand of European farm machinery with the highest resale value and Germany's market leader for years; the 1050 Vario is the most powerful standard wheeled tractor, the 200 V the best-selling vineyard tractor.
On used tractors, operating hours, Vario transmission (oil history, calibration), engine and exhaust aftertreatment, front-axle and cab suspension, electronics and terminal, on the LS and LSA types turbo clutch and gearbox count; parts run through the AGCO network.
Sources: SpecCodex register, model data: Fendt (weitere Modelle), Fendt (AGCO, Hersteller, Marktoberdorf)
Technical data
Engine
| Rated speed | 2,400 rpmcorrect |
|---|---|
| Torque | 630 Nmcorrect |
| Cylinders | 6correct |
Dimensions and weights
| Width | 2,380 mmcorrect |
|---|---|
| Height | 2,898 mmcorrect |
| Wheelbase | 2,690 mmcorrect |
Drivetrain and chassis
| Gearbox | 20/9-Vollsynchron-Feinstufen-Getriebecorrect |
|---|---|
| Forward gears | 20correct |
| Reverse gears | 9correct |
| Top speed | 40 km/hcorrect |
Working data
| Fuel tank capacity | 222 lcorrect |
|---|
Other data
| Linkage category | Cat IIIcorrect |
|---|---|
| PTO speed | 750/1000 rpmcorrect |
Frequently asked questions
What engine does the Fendt 615 LSA have?
6 cylinders.
How fast does the Fendt 615 LSA go?
Top speed is 40 km/h.
What are the dimensions of the Fendt 615 LSA?
2,380 mm × 2,898 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
