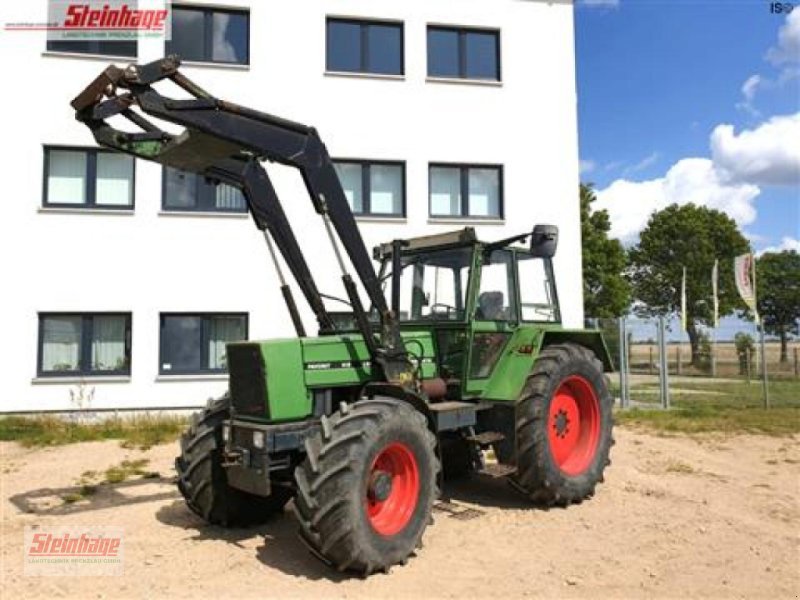

Fendt 610LS
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Fendt 610LS is part of the tractor group and features six cylinders with a displacement of 5 652 cm³. It belongs to the medium‑size tractor series and operates at a nominal speed of 2 300 rpm. The maximum engine output is 95 hp (69,5 kW) and the peak torque reaches 352 Nm. Overall dimensions are 4 700 mm in length, 2 204 mm in width and 2 809 mm in height.
A 12/5 full‑synchronised gearbox provides twelve forward and five reverse gears, allowing fine adjustment of working speed. With a top speed of 30 km/h the machine can be moved quickly on fields and public roads. The fuel tank holds 220 l, enabling long periods of operation without frequent refuelling. The Cat III lifting category permits handling of heavy implements, while the spindle speed range of 540/1000 rpm is suitable for rotary tools.
Within Fendt’s tractor lineup the 610LS occupies the medium class. It delivers more power than smaller models with fewer cylinders while remaining more compact than the largest tractors in the series. The combination of six cylinders, a 5 652 cm³ displacement and 352 Nm torque makes it appropriate for tasks that require both strength and precision.
Fendt – other models: the collective page of tractors outside the named ranges, from the Farmer and Favorit types of the LS and LSA era (308 LSA, 312 LSA) through the narrow-track 200 V/F/P to the Vario generations 300
This page gathers the Fendt tractors the register could not assign to a named range – the brand from Marktoberdorf in the Allgäu that began in 1930 with the Dieselross, presented with the Vario in 1995 the first production-ready stepless transmission in farm machinery and has belonged to AGCO since 1997. The type logic: the Farmer and Favorit ranges of the 1970s to 1990s give the range and size in the three-digit number (Farmer 308 as a 300, Favorit 612 as a 600), LS, LSA and Turbomatik the equipment, cab and turbo-clutch drive; since 1995 all tractors are called Vario, with the first digit as range (200 to 1000) and the following ones as power step – 312 Vario about 120 hp, 724 Vario about 240 hp, 1050 Vario about 500 hp – the suffixes V, F and P mark the narrow-track models of the 200s for vineyard, orchard and plantation, Gen3 to Gen7 the generations, Profi and Power the equipment lines. The engines came from MWM and Deutz in the old, Sisu and AGCO Power in the medium and MAN in the big 900 and 1000 ranges.
Read on 3 more paragraphs
The register lists here 204 versions with 3 to 368 kW from one- to six-cylinders of 308 to 12,419 cm³, PTO outputs from 106 to 300 hp on the recorded big tractors, torque from 204 to 2,400 Nm, unladen weights from 510 to 23,000 kg, lengths from 2,750 to 6,157 mm and widths from 1,073 to 3,000 mm.
Fendt is the premium brand of European farm machinery with the highest resale value and Germany's market leader for years; the 1050 Vario is the most powerful standard wheeled tractor, the 200 V the best-selling vineyard tractor.
On used tractors, operating hours, Vario transmission (oil history, calibration), engine and exhaust aftertreatment, front-axle and cab suspension, electronics and terminal, on the LS and LSA types turbo clutch and gearbox count; parts run through the AGCO network.
Sources: SpecCodex register, model data: Fendt (weitere Modelle), Fendt (AGCO, Hersteller, Marktoberdorf)
Technical data
Engine
| Power | 95 hp (69.5 kW)correct |
|---|---|
| Rated speed | 2,300 rpmcorrect |
| Torque | 352 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 5,652 cm³correct |
Dimensions and weights
| Length | 4,700 mmcorrect |
|---|---|
| Width | 2,204 mmcorrect |
| Height | 2,809 mmcorrect |
Drivetrain and chassis
| Gearbox | 12/5-Vollsynchrongetriebecorrect |
|---|---|
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 220 lcorrect |
|---|
Other data
| Linkage category | Cat IIIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Frequently asked questions
How much power does the Fendt 610LS have?
The Fendt 610LS delivers 95 hp.
What engine does the Fendt 610LS have?
6 cylinders, 5,652 cm³ displacement.
How fast does the Fendt 610LS go?
Top speed is 30 km/h.
What are the dimensions of the Fendt 610LS?
4,700 mm × 2,204 mm × 2,809 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 14 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
