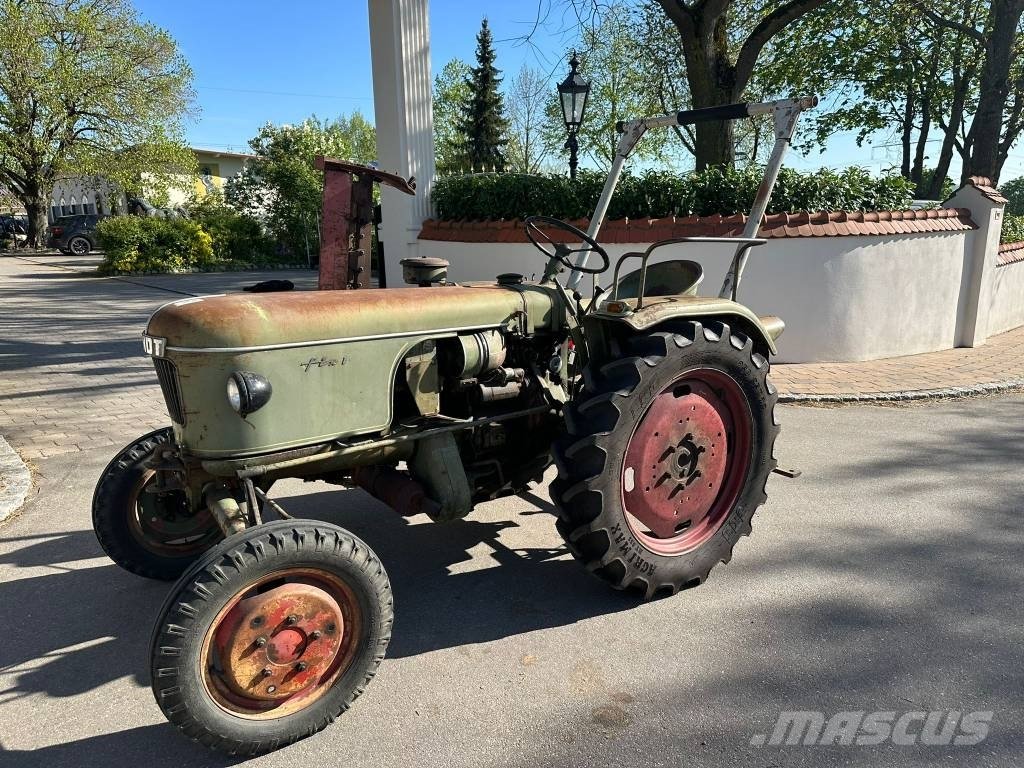

Fendt Fix 1 (W oder L)
Built: 1958–1960 · Series: Fix („ff“-Reihe)
More machines from model year 1958
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Fendt Fix (the 'ff' range) – small tractors of the 1950s/60s: single- and twin-cylinder diesels at 1,032 to 1,700 cc, 10.2 to 16 kW, types Fix 1, Fix 16, Fix 2 and Fix 2 E
The Fix range was Fendt's entry class of the 1950s and 1960s for smaller holdings, built alongside the larger Favorit and Dieselross series at the Bavarian Marktoberdorf plant. The four recorded types Fix 1, Fix 16, Fix 2 and Fix 2 E reflect the gradual increase in power within the range; Fendt offered the small tractors in various body variants. They were powered by single- and twin-cylinder diesel engines, typical for this class for simple maintenance and low fuel consumption.
Read on 3 more paragraphs
The register lists 4 versions with 10.2 to 16 kW from single- to twin-cylinders of 1,032 to 1,700 cc displacement at 2,000 to 2,050 rpm. Unladen weights range from 1,250 to 1,610 kg, lengths from 2,545 to 3,180 mm, widths from 1,518 to 1,520 mm, and heights without canopy from 1,430 to 1,490 mm.
Small tractors such as the Fix range filled the gap in the 1950s and 1960s between single-axle carriers and the larger, more expensive standard tractors, aimed at smallholdings and special crops such as viticulture and orchards, where manoeuvrability and low weight mattered more than high pulling power.
On a used purchase of such a small tractor, check the condition and tightness of the injection system, wear on the clutch and steering, and corrosion on sheet metal and the frame; parts for the old single- and twin-cylinder engines are now only available through specialists and tractor exchanges.
Sources: SpecCodex register, model data: Fendt Fix („ff“-Reihe), Fendt (AGCO, Hersteller)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 15 hpcorrect |
| Rated speed | 2,000 rpmcorrect |
| Cylinders | 1correct |
| Displacement | 1,032 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 2,545 mmcorrect |
|---|---|
| Width | 1,520 mmcorrect |
| Height | 1,490 mm (without canopy)correct |
| Wheelbase | 1,608 mmcorrect |
| Ground clearance | ca. 380 mmcorrect |
| Unladen weight | 1,250 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 6/2-manual gearbox gearboxcorrect |
| Front tyres | 4.00-15, 5.00-16correct |
| Rear tyres | 7-30, 8-28correct |
| Top speed | 20 km/hcorrect |
Origin and approval
| Construction | frameless unit constructioncorrect |
|---|---|
| Units built | 2757 (davon 1650 W und 1107 L)correct |
Where this model stands
Power-to-weight ratio: 8.8 kW/t (11 kW / 1.2 t)
Power class: Compact (< 40 hp)
Stronger than 4% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Fendt Fix 1 (W oder L) have?
The Fendt Fix 1 (W oder L) delivers 15 hp.
How much does the Fendt Fix 1 (W oder L) weigh?
The unladen weight is 1,250 kg.
What engine does the Fendt Fix 1 (W oder L) have?
1 cylinders, 1,032 cm³ displacement, Diesel.
How fast does the Fendt Fix 1 (W oder L) go?
Top speed is 20 km/h.
What are the dimensions of the Fendt Fix 1 (W oder L)?
2,545 mm × 1,520 mm × 1,490 mm.
When was the Fendt Fix 1 (W oder L) built?
Production years: 1958–1960.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 20 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
