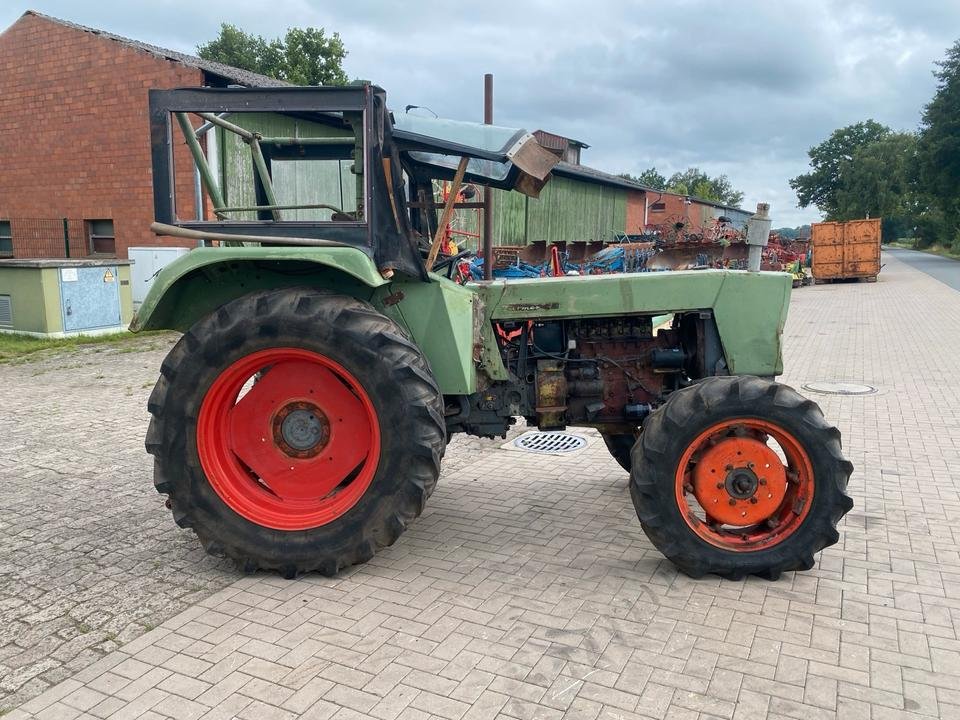

Fendt Farmer 4 S/SA
Built: 1968–1972 · Series: Farmer
More machines from model year 1968
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Fendt Farmer – Base Name Spanning Several Decades, 1963 Into the 2000s: two- to four-cylinder diesels with 18.3 to 82 kW, 1,700 to 4,314 cm³ displacement, air- and water-cooled
Fendt used the name Farmer as a base designation for tractors across several decades, documented in the register from the 1Z in 1963 to Farmer models from 2009. Output of the recorded models ranges from 18.3 to 82 kW, using two- to four-cylinder engines with displacement from 1,700 to 4,314 cm³.
Read on 3 more paragraphs
Recorded operating weight runs from 1,500 to 4,850 kg, wheelbase from 1,775 to 2,333 mm, and top speed of the listed models spans 19.6 to 40 km/h. This wide spread reflects the fact that both early post-war models and modern cabbed tractors with higher travel speeds carried the Farmer name.
At Fendt, the Farmer name consistently denoted the mid power class between the more compact models and the large Favorit tractors. For a used Farmer tractor, the exact generation matters most, as technology and equipment changed fundamentally over this long span.
The two-speed PTO with 540 and 1,000 rpm only became widespread in Europe from the 1970s; early 1960s Farmer models therefore usually had only the single-speed 540 rpm PTO, while later model years offered both speeds. The three-point hitch matched category I at the lower end of the power range and already category II under ISO 730 at the upper end above 55 kW. The exact category therefore follows from the model year rather than the power rating alone, since Fendt introduced the change model by model.
Sources: SpecCodex register, model data: Fendt Farmer, Fendt
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 55 hp (40 kW)correct |
| Rated speed | 2,400 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 2,976 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,808 mmcorrect |
|---|---|
| Width | 1,868 mmcorrect |
| Height | 1,797 mmcorrect |
| Wheelbase | 2,247 mmcorrect |
| Ground clearance | 410 mmcorrect |
| Unladen weight | 2,455 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 13V/4Rcorrect |
| Front tyres | 6, 5-20 ASF ( A: 7, 50-18 ASF)correct |
| Rear tyres | 12-36 AS ( A: 14-30 AS)correct |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 83 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 4871 ( A: 1347 )correct |
Other data
| Linkage category | Cat IIcorrect |
|---|
Where this model stands
Power-to-weight ratio: 16.3 kW/t (40 kW / 2.5 t)
Power class: Universal (40–100 hp)
Stronger than 37% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Fendt Farmer 4 S/SA have?
The Fendt Farmer 4 S/SA delivers 55 hp.
How much does the Fendt Farmer 4 S/SA weigh?
The unladen weight is 2,455 kg.
What engine does the Fendt Farmer 4 S/SA have?
4 cylinders, 2,976 cm³ displacement, Diesel.
How fast does the Fendt Farmer 4 S/SA go?
Top speed is 30 km/h.
What are the dimensions of the Fendt Farmer 4 S/SA?
3,808 mm × 1,868 mm × 1,797 mm.
When was the Fendt Farmer 4 S/SA built?
Production years: 1968–1972.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 23 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
1 current listings for Fendt Farmer 4 S/SA on Hutnia.com.
View offers on Hutnia.com →
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
