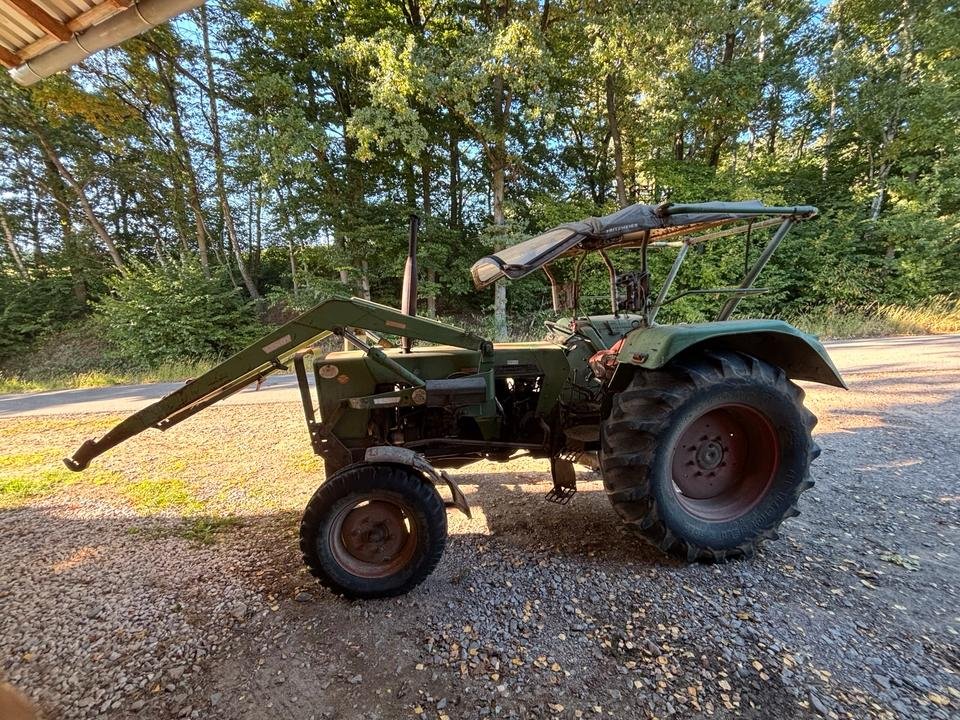

Fendt Farmer 5 S/SA
Built: 1970–1972 · Series: Farmer, Erste Generation
More machines from model year 1970
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Fendt Farmer 5 S/SA (Farmer, first generation, 1970–1972): four-cylinder diesel with 3,402 cm³, 47.6 kW and a weight of 2,945 kg
The Farmer 5 S/SA also belongs to the first generation of Fendt's Farmer range, built in Marktoberdorf, Bavaria, in which the brand placed a four-cylinder, more powerful Farmer alongside the smaller two-cylinder versions. The Farmer 5 S/SA was built from 1970 to 1972.
Read on 3 more paragraphs
The Fendt Farmer 5 S/SA carries a water-cooled four-cylinder diesel engine with 3,402 cm³ of displacement, producing 65 hp, or 47.6 kW, at 2,400 rpm. At 2,945 kg, 3,820 mm long, 2,450 mm high, 1,980 mm wide and with a 2,246 mm wheelbase, the machine reaches a top speed of 20 km/h.
With four cylinders and 47.6 kW, the Farmer 5 S/SA was the stronger choice within the early Farmer range for farms needing more pulling power than the simple two-cylinder versions, for example for ploughing and cultivating on medium-sized areas. The 20 km/h design top speed falls under German driving licence class L.
When buying an early four-cylinder Farmer used, the condition of the injection system and the cooling system under full load matters, along with the tightness of the hydraulic connections for implements. Also worth checking is corrosion damage to the frame and mudguards, and the condition of the clutch and gearbox, which can be worn on tractors of this age after decades of use. Also worth checking before purchase are the condition of the tyres and the lighting system.
Sources: SpecCodex-Register: Kennwerte des Modells Fendt Farmer 5 S/SA, Fendt (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 65 hp (47.6 kW)correct |
| Rated speed | 2,400 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,402 cm³correct |
| Bore | 95 mmcorrect |
| Stroke | 120 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,820 mmcorrect |
|---|---|
| Width | 1,980 mmcorrect |
| Height | 2,450 mmcorrect |
| Wheelbase | 2,246 mmcorrect |
| Ground clearance | 410 mmcorrect |
| Unladen weight | 2,945 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 13V/4Rcorrect |
| Front tyres | 6.50-20 / 7.50-18 ( A: 9-24 )correct |
| Rear tyres | 13.6/12-36, 16.9/14-34 ( A: 12-36 )correct |
| Top speed | 20 km/hcorrect |
Working data
| Fuel tank capacity | 83 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 1976 ( A: 1491 )correct |
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 16.2 kW/t (48 kW / 2.9 t)
Power class: Universal (40–100 hp)
Stronger than 44% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Fendt Farmer 5 S/SA have?
The Fendt Farmer 5 S/SA delivers 65 hp.
How much does the Fendt Farmer 5 S/SA weigh?
The unladen weight is 2,945 kg.
What engine does the Fendt Farmer 5 S/SA have?
4 cylinders, 3,402 cm³ displacement, Diesel.
How fast does the Fendt Farmer 5 S/SA go?
Top speed is 20 km/h.
What are the dimensions of the Fendt Farmer 5 S/SA?
3,820 mm × 1,980 mm × 2,450 mm.
When was the Fendt Farmer 5 S/SA built?
Production years: 1970–1972.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
