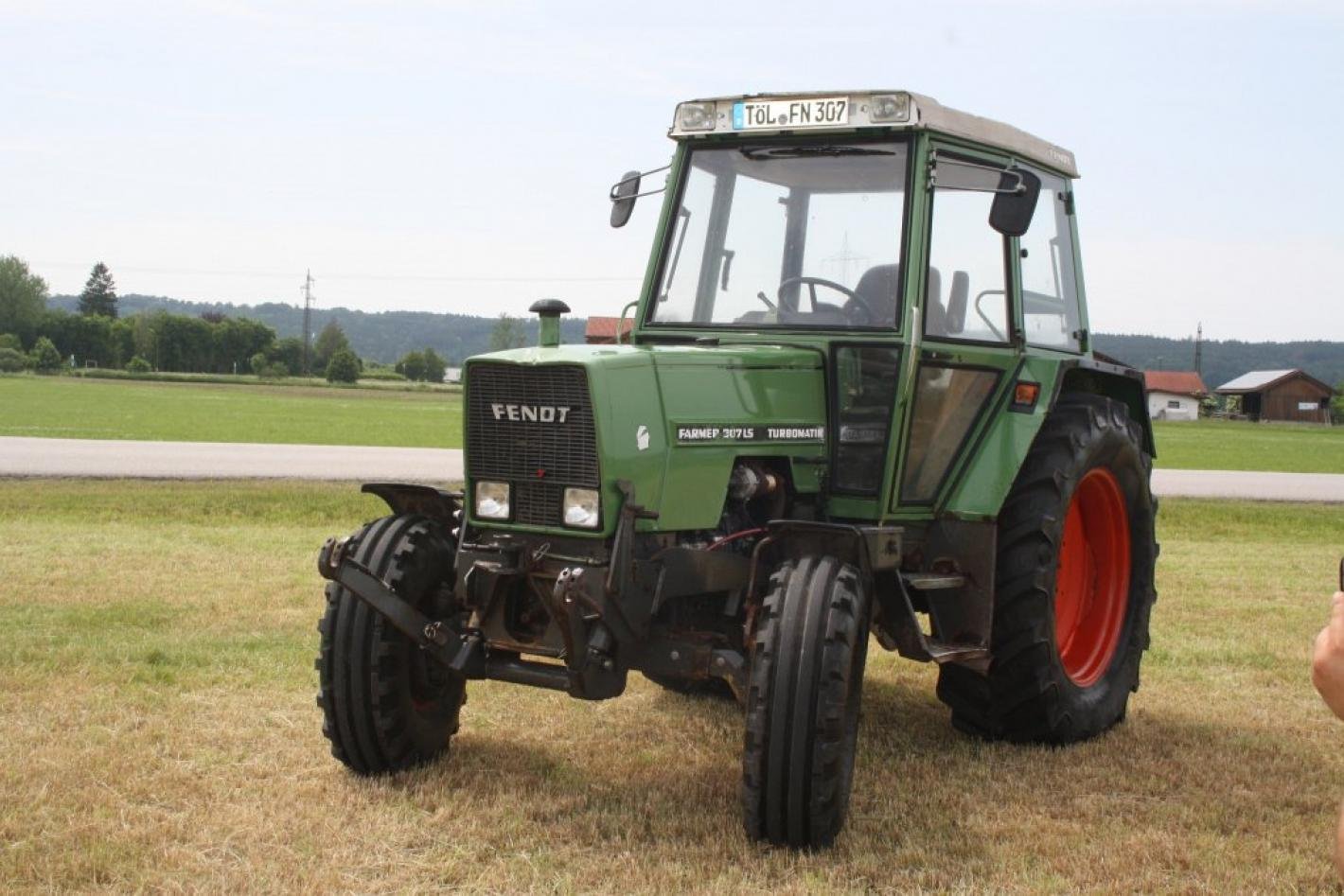

Fendt Farmer 307 LS
Built: 1985–1993 · Series: Farmer 300er-Reihe
More machines from model year 1985
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Fendt Farmer 300 LS and LSA (1980–1993) – the mid-range from Marktoberdorf before the Vario: Farmer 303 to 307, the last digit as power step, LS for the equipment with turbo clutch, LSA for four-wheel drive
The Farmer 300 of the LS generation were Fendt's bread-and-butter tractors of the 1980s: presented in 1980 as successors to the Farmer 200 and the 100 range, built in Marktoberdorf and, with over 100,000 units up to the replacement by the Farmer 300 Ci and C in 1993, the most-built Fendt range of its time. The type logic: Farmer marks the mid-range, 3 the series, the last digit the power step – 303 about 52 hp, 304 about 60, 305 about 65, 306 about 70, 307 about 75 hp – LS the equipment with the Fendt turbo clutch, the hydrodynamic starting element that allowed starting under load without clutch wear, LSA the four-wheel-drive version. The engines are MWM diesels from Mannheim: the three-cylinder D 226-3 of 3.1 litres in the small, the four-cylinder D 226-4 of 4.2 litres in the big models, at 2,175 to 2,350 rpm – water-cooled, robust and with mechanical injection pump.
Read on 3 more paragraphs
The register lists 7 versions with 38 to 51.2 kW from three- and four-cylinders of 3,117 to 4,154 cm³, torque from 201 to 272 Nm, unladen weights from 2,950 to 3,630 kg, lengths from 3,780 to 3,952 mm, widths from 1,885 to 1,975 mm and heights from 2,552 to 2,610 mm.
The Farmer 300 LS are today the most sought-after used tractors of their class in southern Germany and Austria – grassland farms value the turbo clutch, the agility and the parts supply, and prices for good 306 LSAs lie far above those of comparable brands.
On used tractors, operating hours, turbo clutch (leaks, oil level), MWM engine and injection pump, gearbox and four-wheel-drive clutch, hydraulics, cab and rust count; parts run through AGCO and Fendt specialists, MWM engine parts through Deutz.
Sources: SpecCodex register, model data: Fendt Farmer 300 LS/LSA, Fendt (AGCO, Hersteller, Marktoberdorf)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 553 hpcorrect |
| Rated speed | 2,250 rpmcorrect |
| Torque | 272 Nmcorrect |
| Cylinders | 3correct |
| Displacement | 3,117 cm³correct |
| Bore | 105 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,780 mmcorrect |
|---|---|
| Width | 1,926 mmcorrect |
| Height | 2,610 mmcorrect |
| Wheelbase | 2,260 mmcorrect |
| Ground clearance | 470 mmcorrect |
| Unladen weight | 3,105 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 21V/6Rcorrect |
| Front tyres | 10.00-16correct |
| Rear tyres | 16.9 R 34correct |
Working data
| Fuel tank capacity | 107 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 749correct |
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 540/750/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 131 kW/t (407 kW / 3.1 t)
Power class: Heavy (> 180 hp)
Stronger than 100% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Fendt Farmer 307 LS have?
The Fendt Farmer 307 LS delivers 553 hp.
How much does the Fendt Farmer 307 LS weigh?
The unladen weight is 3,105 kg.
What engine does the Fendt Farmer 307 LS have?
3 cylinders, 3,117 cm³ displacement, Diesel.
What are the dimensions of the Fendt Farmer 307 LS?
3,780 mm × 1,926 mm × 2,610 mm.
When was the Fendt Farmer 307 LS built?
Production years: 1985–1993.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
