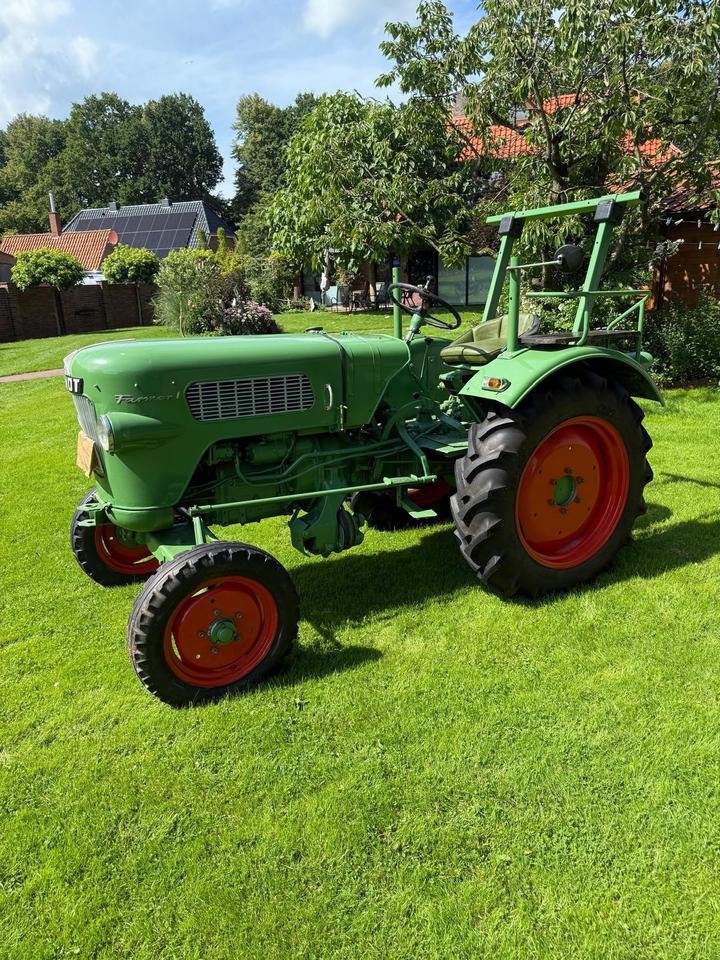

Fendt Farmer 1
Built: 1958–1961 · Series: Farmer (1)
More machines from model year 1958
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Fendt Farmer 1 (1958–1961): light two-cylinder farm tractor with a 1,700 cm³ diesel engine, 25 hp, or 18.3 kW, and a weight of 1,445 kg
With the Farmer name, Fendt, built in Marktoberdorf, Bavaria, introduced one of its longest-running tractor ranges for medium and smaller farms. The Farmer 1, the first version of this range, was built from 1958 to 1961.
Read on 3 more paragraphs
The Fendt Farmer 1 carries a two-cylinder diesel engine with 1,700 cm³ of displacement, producing 25 hp, or 18.3 kW, at 2,000 rpm, and was water- or air-cooled depending on the version. At 1,445 kg, 2,945 mm long, 1,590 mm high, 1,575 mm wide and with a 1,810 mm wheelbase, the machine reaches a top speed of 20 km/h.
At 18.3 kW and just under 1,450 kg, the Farmer 1 was a light all-purpose tractor for smaller farms that did not need a large, heavy tractor for field work, haulage and yard tasks. The 20 km/h design top speed falls under German driving licence class L.
When buying such an old two-cylinder tractor used, the condition of the cooling system matters, whether water- or air-cooled, along with the condition of the injection pump. Also worth checking are rust on the frame and mudguards, the function of the mechanical brakes, and the condition of the tyres, as spare parts for tractors of this age are often available only used. On such an old vehicle, the condition of the lighting system and the wear of the clutch and steering linkage are also worth checking closely.
Sources: SpecCodex-Register: Kennwerte des Modells Fendt Farmer 1, Fendt (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 25 hp (18.3 kW)correct |
| Rated speed | 2,000 rpmcorrect |
| Cylinders | 2correct |
| Displacement | 1,700 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 2,945 mmcorrect |
|---|---|
| Width | 1,575 mmcorrect |
| Height | 1,590 mmcorrect |
| Wheelbase | 1,810 mmcorrect |
| Ground clearance | 350 mmcorrect |
| Unladen weight | 1,445 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 6/2-Getriebecorrect |
| Forward gears | 6correct |
| Reverse gears | 2correct |
| Front tyres | 5.00-16, 5.50-16correct |
| Rear tyres | 8-32, 10-28correct |
| Top speed | 20 km/hcorrect |
Working data
| Fuel tank capacity | 28 lcorrect |
|---|
Origin and approval
| Construction | frameless unit constructioncorrect |
|---|---|
| Units built | 4,623correct |
Where this model stands
Power-to-weight ratio: 12.7 kW/t (18 kW / 1.4 t)
Power class: Compact (< 40 hp)
Stronger than 12% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Fendt Farmer 1 have?
The Fendt Farmer 1 delivers 25 hp.
How much does the Fendt Farmer 1 weigh?
The unladen weight is 1,445 kg.
What engine does the Fendt Farmer 1 have?
2 cylinders, 1,700 cm³ displacement, Diesel.
How fast does the Fendt Farmer 1 go?
Top speed is 20 km/h.
What are the dimensions of the Fendt Farmer 1?
2,945 mm × 1,575 mm × 1,590 mm.
When was the Fendt Farmer 1 built?
Production years: 1958–1961.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
