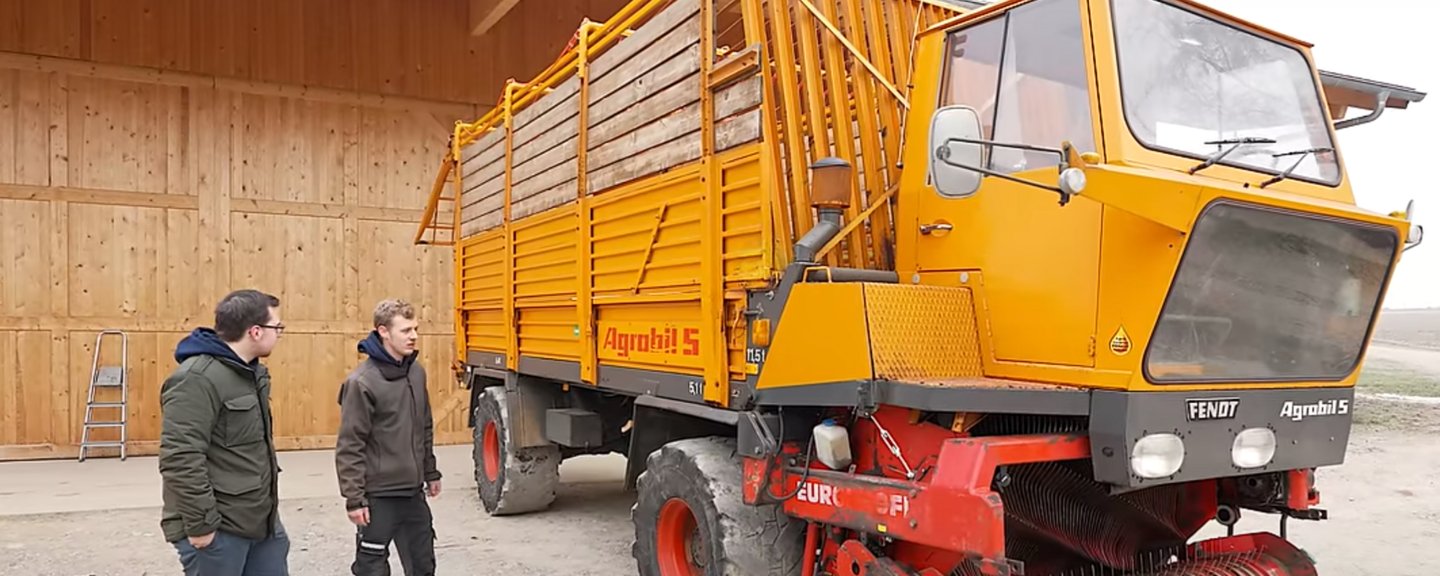

Fendt Agrobil S
Built: 1972–1982 · Series: Agrobil
More machines from model year 1972
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Fendt Agrobil S (1972–1982): air-cooled four-cylinder diesel with 3,768 cm³, 59 kW and a 60 km/h top speed that is high for a tractor
Alongside its classic farm tractors, Fendt built the Agrobil range in Marktoberdorf, Bavaria. The Agrobil S was built from 1972 to 1982.
Read on 3 more paragraphs
The Fendt Agrobil S carries an air-cooled four-cylinder diesel engine with 3,768 cm³ of displacement, producing 80 hp, or 59 kW, at 2,800 rpm. At 4,000 kg, 7,600 mm long, 3,600 mm high, 2,300 mm wide and with a 3,440 mm wheelbase, the machine reaches a top speed of 60 km/h.
At 60 km/h, the Agrobil S's design top speed clearly exceeds the 20 to 40 km/h of many classic farm tractors of its time and falls under German driving licence class T; its 7,600 mm length likewise far exceeds the dimensions of ordinary wheeled tractors. This combination of high speed and elongated build points to a transport role, for which an ordinary, short farm tractor is less suited.
When buying such a long and fast vehicle used, the condition of the frame along its full length matters, as long chassis are more exposed to torsional stress than compact tractors. Also worth checking are the cooling fins of the air-cooled engine, the braking system given the higher travel speed, and the condition of the steering and steering knuckles. Also worth checking before purchase are the function of the lighting system and the condition of the tyres, given the vehicle's higher travel speed and long wheelbase.
Sources: SpecCodex-Register: Kennwerte des Modells Fendt Agrobil S, Fendt (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 80 hp (59 kW)correct |
| Rated speed | 2,800 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,768 cm³correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 7,600 mmcorrect |
|---|---|
| Width | 2,300 mmcorrect |
| Height | 3,600 mmcorrect |
| Wheelbase | 3,440 mmcorrect |
| Unladen weight | 4,000 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 18/6-Vollsynchrongetriebecorrect |
| Forward gears | 18correct |
| Reverse gears | 6correct |
| Front tyres | 12, 5-20, 14, 5-20, 16-20correct |
| Rear tyres | 12, 5-20, 14, 5-20, 16-20correct |
| Top speed | 60 km/hcorrect |
Origin and approval
| Units built | 112correct |
|---|
Where this model stands
Power-to-weight ratio: 14.8 kW/t (59 kW / 4 t)
Power class: Universal (40–100 hp)
Stronger than 55% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Fendt Agrobil S have?
The Fendt Agrobil S delivers 80 hp.
How much does the Fendt Agrobil S weigh?
The unladen weight is 4,000 kg.
What engine does the Fendt Agrobil S have?
4 cylinders, 3,768 cm³ displacement, Diesel.
How fast does the Fendt Agrobil S go?
Top speed is 60 km/h.
What are the dimensions of the Fendt Agrobil S?
7,600 mm × 2,300 mm × 3,600 mm.
When was the Fendt Agrobil S built?
Production years: 1972–1982.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
