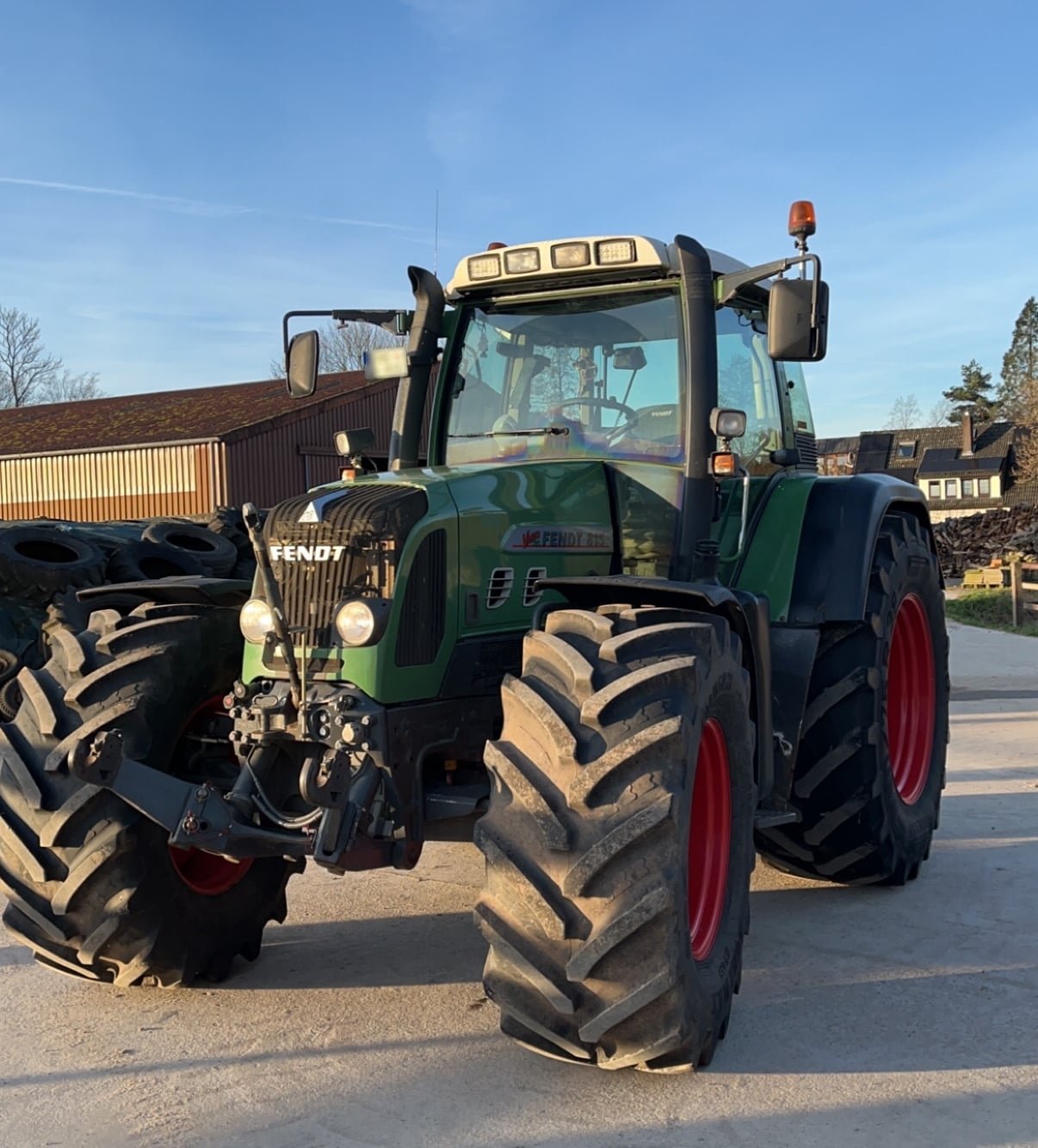

Fendt 815 Vario / TMS
Built: 2003–2009 · Series: 800 Vario
More machines from model year 2003
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Fendt 800 Vario (since 2000) – the Marktoberdorf large tractors between 700 and 900: 815 to 818, 819 and 820, 822 to 828, TMS, greentec with SCR, Deutz six-cylinders of 6.06 litres, 110 to 205 kW
At Fendt the 800 Vario fills the gap between the 700 Vario and the 900 Vario: the large tractor for arable farms and contractors, which appeared in 2000 as the 815 to 818 Vario and has run in three generations since. The type logic: the 8 stands for the series, the following digits order the power step in ascending order – 815 about 150 hp, 820 about 200 hp, 828 about 280 hp – Vario for the continuously variable transmission Fendt had introduced in the 926 in 1995, TMS for the tractor management system that automatically matches engine and transmission. The first generation 815 to 818 ran until 2005, the second 819 and 820 from 2006 to 2010, the third 822 to 828 from 2010 with the suffix greentec on the 820, which denotes SCR aftertreatment with AdBlue – in 2008 Fendt was the first tractor maker to bring SCR into series production. The engines are Deutz six-cylinders of 6.06 litres in all generations.
Read on 3 more paragraphs
The register lists 10 versions with 110 to 205 kW (180 to 280 hp), 5,702 to 6,057 cm³ with six cylinders, torque from 730 to 1,210 Nm at 2,100 rpm, unladen weights from 6,650 to 9,450 kg, gross weights up to 14,000 kg, lengths from 4,700 to 5,274 mm, widths from 2,550 to 2,620 mm and heights from 3,020 to 3,270 mm; the fuel approvals name diesel, RME and AdBlue.
The 828 Vario with 280 hp from six litres is Fendt's example of the high specific output of modern tractor engines; the Vario transmission with clutchless reversing and the suspended cab are the reasons the 800s hold high prices on the used market.
On used tractors, operating hours, the condition of the Vario transmission (oil analysis, behaviour when reversing), engine and aftertreatment on greentec and 822 models, front-axle suspension, hydraulics and the electronics of the Varioterminal cab are what count.
Sources: SpecCodex register, model data: Fendt 800 Vario, Fendt 800 Vario (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 150 hp (110 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Torque | 730 Nmcorrect |
| Speed at max. torque | 1,450 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 5,702 cm³correct |
| Bore | 98 mmcorrect |
| Stroke | 126 mmcorrect |
| Compression ratio | 18.5correct |
| Injection pressure | 850 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,700 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Height | 3,020 mmcorrect |
| Wheelbase | 2,720 mmcorrect |
| Ground clearance | 570 mmcorrect |
| Unladen weight | 6,650 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | continuously variablecorrect |
| Front tyres | 480/70 R 30correct |
| Rear tyres | 580/70 R 42correct |
| Top speed | 50 km/hcorrect |
Origin and approval
| Construction | cast semi-framecorrect |
|---|---|
| Units built | 305correct |
Where this model stands
Power-to-weight ratio: 16.5 kW/t (110 kW / 6.7 t)
Power class: Large (100–180 hp)
Stronger than 83% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Fendt 815 Vario / TMS have?
The Fendt 815 Vario / TMS delivers 150 hp.
How much does the Fendt 815 Vario / TMS weigh?
The unladen weight is 6,650 kg.
What engine does the Fendt 815 Vario / TMS have?
6 cylinders, 5,702 cm³ displacement, Diesel.
How fast does the Fendt 815 Vario / TMS go?
Top speed is 50 km/h.
What are the dimensions of the Fendt 815 Vario / TMS?
4,700 mm × 2,550 mm × 3,020 mm.
When was the Fendt 815 Vario / TMS built?
Production years: 2003–2009.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 26 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
