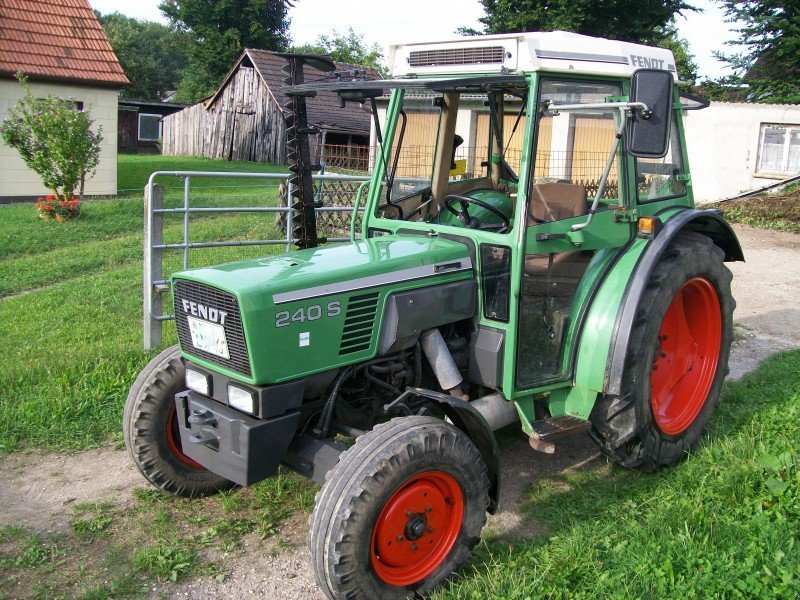

Fendt 240 S
Built: 1987–1993 · Series: 200er-Reihe
More machines from model year 1987
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Fendt 200 Series – Compact Class Across Three Decades, 1981 to 2009: three- and four-cylinder diesels with 29.3 to 66 kW (40 to 90 hp), 2,826 to 4,314 cm³ displacement
The 200 series covers Fendt's compact power class and is documented in the register from 1981 to 2009, from the early Farmer 204 V to modern models such as the 209 VA. Output of the recorded models ranges from 29.3 to 66 kW, with models rated in horsepower spanning 40 to 90 hp, using three- and four-cylinder engines with displacement from 2,826 to 4,314 cm³.
Read on 3 more paragraphs
Recorded operating weight runs from 2,030 to 3,130 kg, wheelbase from 2,027 to 2,221 mm, and top speed of the listed models spans 30 to 40 km/h. Suffixes such as V, F or P in model names denote different body and mounting variants, such as narrow-track models for vineyards.
The 200 series consistently targeted smaller farms, specialty crops and grassland operations. For a used model, the exact production year matters most, as cab, hydraulics and engine technology differ considerably between the early 1980s and late 2000s model years.
Across the long production run from 1981 to 2009, later 200-series models already fell under the European emissions stages, which from 1999 introduced step-by-step limits on soot and nitrogen oxides for new tractors, while early model years still ran without any emissions certification. For PTO and lift, this power class consistently used the 540 rpm standard with a category I three-point hitch, needed by narrow-track vineyard versions just as much as by the wider standard models.
Sources: SpecCodex register, model data: Fendt 200er-Reihe, Fendt
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 40 hp (29.3 kW)correct |
| Rated speed | 2,000 rpmcorrect |
| Torque | 164 Nmcorrect |
| Speed at max. torque | 1,450 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,826 cm³correct |
| Bore | 100 mmcorrect |
| Stroke | 120 mmcorrect |
| Compression ratio | 19correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 3,535 mmcorrect |
|---|---|
| Width | 1,675 mmcorrect |
| Height | 2,290 mmcorrect |
| Wheelbase | 2,050 mmcorrect |
| Ground clearance | 353 mmcorrect |
| Unladen weight | 2,285 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 21V/6Rcorrect |
| Front tyres | 7.50-16correct |
| Rear tyres | 12.4-32correct |
| Top speed | 40 km/hcorrect |
Working data
| Fuel tank capacity | 60 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 416correct |
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 540/750 rpmcorrect |
Where this model stands
Power-to-weight ratio: 12.8 kW/t (29 kW / 2.3 t)
Power class: Compact (< 40 hp)
Stronger than 25% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Fendt 240 S have?
The Fendt 240 S delivers 40 hp.
How much does the Fendt 240 S weigh?
The unladen weight is 2,285 kg.
What engine does the Fendt 240 S have?
3 cylinders, 2,826 cm³ displacement, Diesel.
How fast does the Fendt 240 S go?
Top speed is 40 km/h.
What are the dimensions of the Fendt 240 S?
3,535 mm × 1,675 mm × 2,290 mm.
When was the Fendt 240 S built?
Production years: 1987–1993.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 29 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
