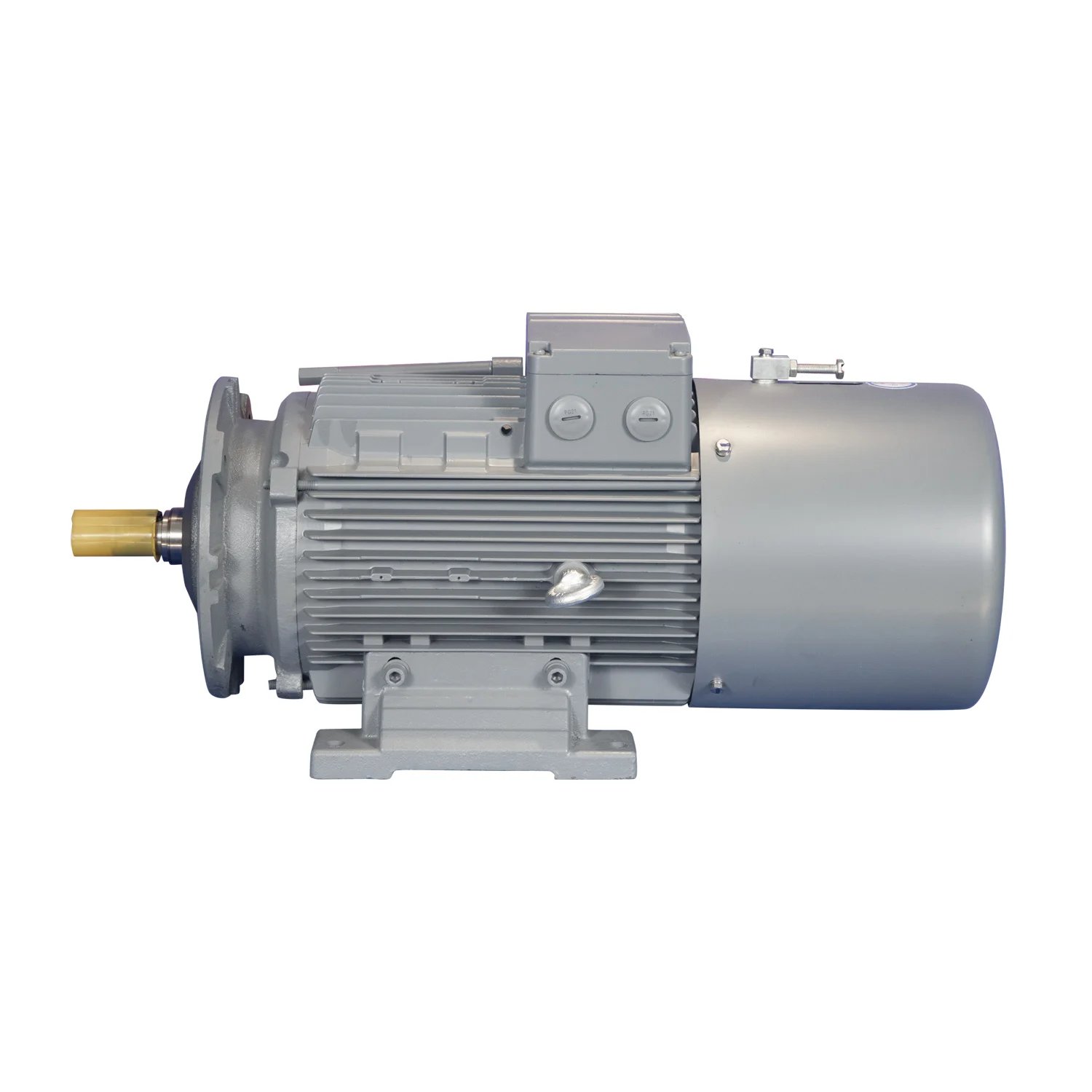

EMZ YE2-132M-4 – specifications
Series: Other models
EMZ lists the YE2-132M-4 as a three-phase induction motor. The rated output is 7.5 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The housing is frame size 132 M in foot-mounted form. The protection class is IP54. The efficiency is 89.4 per cent at full load, 90.5 per cent at 75 per cent load and 89 per cent at half load. Mounting arrangements to IEC 60034-7: B3, B5, B14, B34 and B35. The motor is built in China. The data is based on the Australian MEPS registration under the GEMS Determination 2019; measured to IEEE 112-B(USA). Rated output across the EMZ range ranges from 3 to 15 kW; the YE2-132M-4 sits in the lower part of that range with 7.5 kW. Its immediate neighbours are the YE3-132S1-2 below it with 5.5 kW and the YE2-160M-4 above it with 11 kW. 24 EMZ models are on record.
Build year not documented · Data origin: Official register · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
EMZ – other models: the collective page of YE2/YE3 three-phase motors outside the named ranges, 3 to 15 kW, 2- to 4-pole, IP54, frame sizes 100 to 160, made in China
This page gathers the EMZ three-phase motors the Australian energy-efficiency register (GEMS/MEPS) could not assign to a named range. The model names follow the Chinese standard-motor scheme YE2 and YE3, marking the older and the newer, more efficient winding standard respectively, followed by frame size and pole count, for example YE3-132M1-2 for the two-pole YE3 version of frame size 132M.
Read on 3 more paragraphs
The register lists here 24 versions with 3 to 15 kW, two- to four-pole. Full-load efficiencies range from 87.3 to 92.17% and at 75% load from 87.6 to 92.5%. Frame sizes run from 100 to 160 under IEC, protection rating is IP54, with nine versions additionally recorded with IP55, the mounting code is uniform: B3/B5/B14/B34/B35. Mains voltages recorded are the combinations 400/690 V and 240/415 V. Manufacturing is entirely in China, tested to the GEMS 2019 determinations with test methods A, B and 2-1-1B. Nine versions reach the High Efficiency Level 2018 classification, one further the older 2005 classification.
In the 3 to 15 kW power range, the YE2/YE3 programme covers the classic demand of small and medium industrial drives for pumps, fans and conveyors, which numerous Chinese manufacturers offer in parallel under their own brand names.
When buying used, what matters is bearing condition and a checked insulation resistance of the winding, visible overheating marks on the terminal box and fan cover, the condition of shaft and key, and a legible nameplate with frame size, pole count and the YE2 or YE3 designation. Spares are usually available independent of manufacturer thanks to the widely used frame size.
Sources: SpecCodex register, model data: EMZ (weitere Modelle, MEPS-Registrierungen)
Technical data
Engine
| Rated output | 7.5 kWcorrect |
|---|
Electrical data
| Rated voltage | 400/690 Vcorrect |
|---|---|
| Number of poles | 4correct |
| Protection class | IP54correct |
| Frame size | 132 M (foot)correct |
| Mounting (IEC 60034-7) | B3, B5, B14, B34, B35correct |
| Efficiency at full load | 89.41 %correct |
| Efficiency at 75 % load | 90.52 %correct |
| Efficiency at half load | 89.01 %correct |
Origin and approval
| Country of manufacture | Chinacorrect |
|---|
Other data
| Standard applied | Greenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2019correct |
|---|---|
| Test method | IEEE 112-B(USA)correct |
Frequently asked questions
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- Check the ingress rating against the installation site — outdoors or in dust the demands differ.
- Hold the mounting form and dimensions against the existing seat before ordering.
- The pole count sets the speed — when replacing an older unit, compare this first.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 22 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Are you the manufacturer or a dealer of this machine? Check the data and add missing figures — we mark your correction as manufacturer or dealer information.
Check and complete the data →Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
