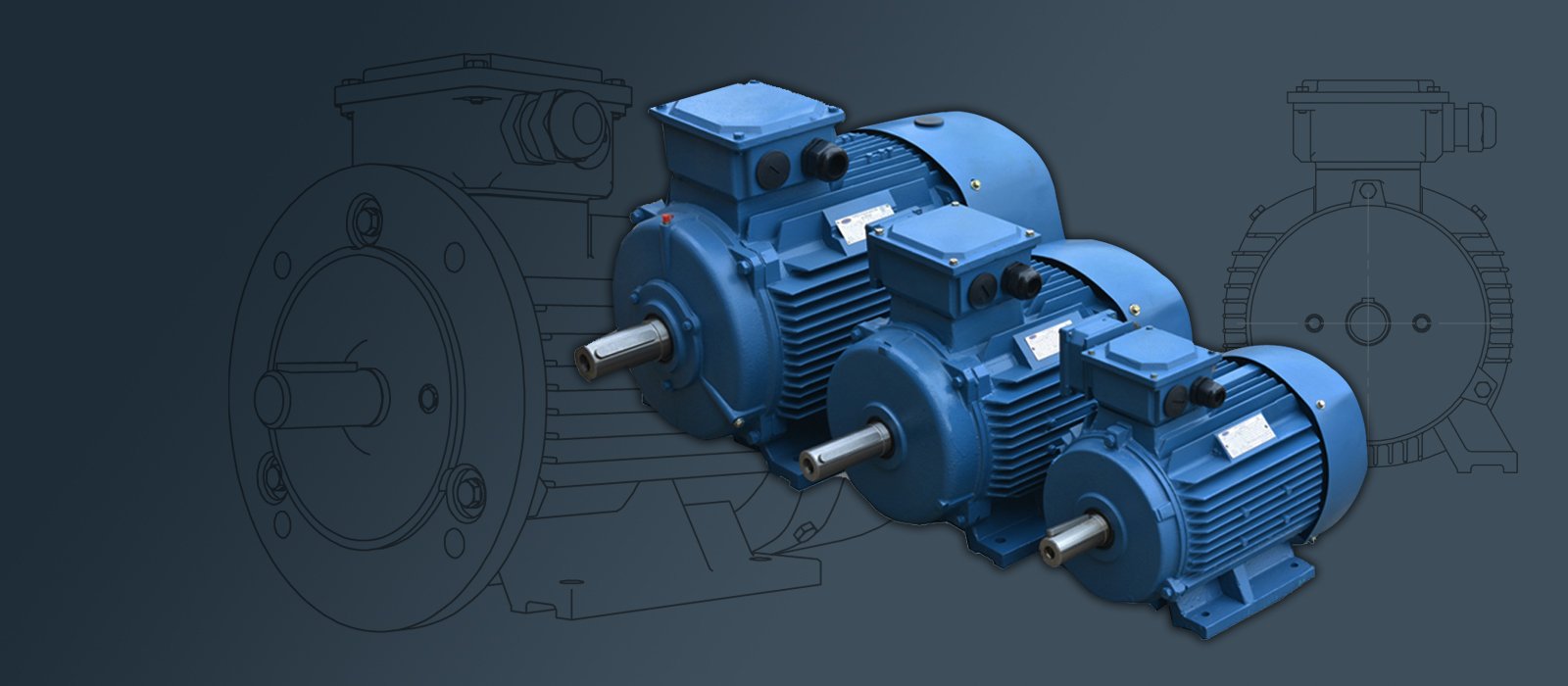

Emtomec HE 112M4
Series: HE
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Emtomec HE – three-phase standard motors from China: MEPS-registered HE range, frame sizes 100L to 112M, 2.2 to 4 kW, 2- to 6-pole, IP55/IP56 protection, efficiency up to 88.54%
Emtomec is a Chinese manufacturer of three-phase standard motors whose HE range is listed on the Australian energy-efficiency register MEPS. The type designation, for example HE 100L4 or HE 112M6, is made up of the frame size (100L, 100LX or 112M) and the pole count as the final digit; this matches the frame-size and pole-count values carried in the register.
Read on 3 more paragraphs
The register lists here 6 versions with 2.2 to 4 kW rated output, 2- to 6-pole, at a voltage of 400 V. Full-load efficiency ranges from 83.08 to 88.54%, and at 75% load from 83.22 to 89.46%. All six motors carry IP55/IP56 protection and are built as foot-mounted versions in frame sizes 100L, 100LX S and 112M. Testing followed the 2019 GEMS determination using test method A.
The HE range covers the lower to mid power band of three-phase standard motors used in pumps, fans and light conveying equipment, competing with Chinese as well as international standard-motor programmes. The range is manufactured in China.
When buying used, what matters is bearing condition and a checked insulation resistance of the winding, visible overheating marks on the terminal box and fan cover, and a legible nameplate with frame size, pole count and protection rating. The mounting codes B3, B5, B14, B34, B35, V1, V3 and V5 show the motors can be used in several mounting positions. Spares run through the relevant distributor.
Sources: SpecCodex register, model data: Emtomec HE
Technical data
Engine
| Rated output | 4 kWcorrect |
|---|
Electrical data
| Rated voltage | 400 Vcorrect |
|---|---|
| Number of poles | 4correct |
| Protection class | IP55, IP56correct |
| Frame size | 112M (foot)correct |
| Mounting (IEC 60034-7) | B3, B5, B14, B34, B35, V1, V3, V5correct |
| Efficiency at full load | 87.01 %correct |
| Efficiency at 75 % load | 87.51 %correct |
| Efficiency at half load | 86.39 %correct |
Origin and approval
| Country of manufacture | Chinacorrect |
|---|
Other data
| Standard applied | Greenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2019correct |
|---|---|
| Test method | IEC 61972correct |
Frequently asked questions
How much power does the Emtomec HE 112M4 have?
The Emtomec HE 112M4 delivers 4 kW.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- Check the ingress rating against the installation site — outdoors or in dust the demands differ.
- Hold the mounting form and dimensions against the existing seat before ordering.
- The pole count sets the speed — when replacing an older unit, compare this first.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
