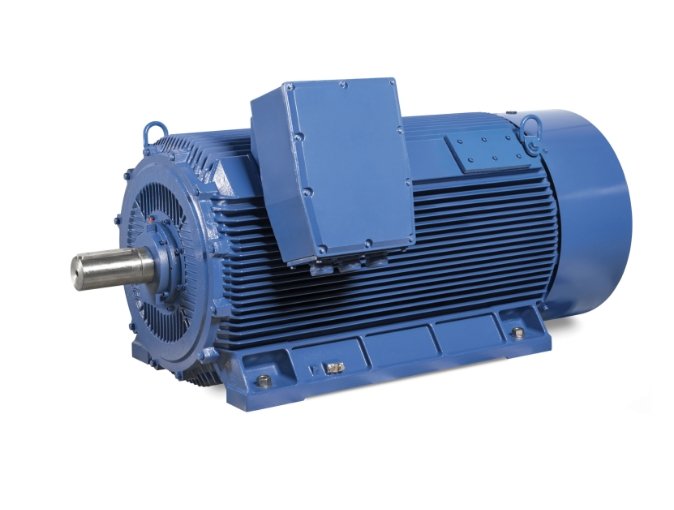

Elvem 6T2 132M4 IE2
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Elvem – other models: the collective page of MEPS-registered IE2 three-phase motors outside the named ranges, frame sizes 132 and 160, 7.5 to 11 kW, four-pole, manufactured in Italy
This page gathers the Elvem three-phase motors the Australian energy-efficiency register could not assign to a named range. The designations recorded in the register, 6T2 132M4 IE2 and 7T2 160M4 IE2, carry the IEC frame size directly in the name (132, 160), followed by the build length M, the pole count 4 and the closing IE2 code for the efficiency class under IEC 60034-30-1.
Read on 3 more paragraphs
The register lists here 2 versions with 7.5 to 11 kW rated output, both four-pole, for a 400 V supply, with full-load efficiencies from 88.7 to 90.9% and at 75% load from 89.38 to 90.4%. Protection is IP55, the mounting code B3 (foot type), testing followed AS/NZS 1359.5:2004 with test method A. Manufacturing takes place in Italy.
The measured efficiencies of around 89 to 91% correspond at this power class to the IE2 level named in the type designation; four-pole motors in frame sizes 132 and 160 run at 1,500 rpm at 50 Hz and are among the most widely fitted frame sizes in industrial pump, fan and compressor building.
When buying used, bearing condition and a checked insulation resistance of the winding, the condition of the terminal box and fan cover, the condition of shaft and key, and a legible nameplate with frame size, pole count and the IE2 mark matter. Spares run through Elvem's Italian distribution.
Sources: SpecCodex register, model data: Elvem (weitere Modelle, MEPS-Registrierungen)
Technical data
Engine
| Rated output | 7.5 kWcorrect |
|---|
Electrical data
| Rated voltage | 400 Vcorrect |
|---|---|
| Number of poles | 4correct |
| Protection class | IP55correct |
| Frame size | 56 M (foot)correct |
| Mounting (IEC 60034-7) | B3correct |
| Efficiency at full load | 88.7 %correct |
| Efficiency at 75 % load | 89.38 %correct |
| Efficiency at half load | 88.65 %correct |
Origin and approval
| Country of manufacture | Italycorrect |
|---|
Other data
| Standard applied | AS/NZS 1359.5:2004correct |
|---|---|
| Test method | IEC 61972correct |
Frequently asked questions
How much power does the Elvem 6T2 132M4 IE2 have?
The Elvem 6T2 132M4 IE2 delivers 7.5 kW.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- Check the ingress rating against the installation site — outdoors or in dust the demands differ.
- Hold the mounting form and dimensions against the existing seat before ordering.
- The pole count sets the speed — when replacing an older unit, compare this first.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
