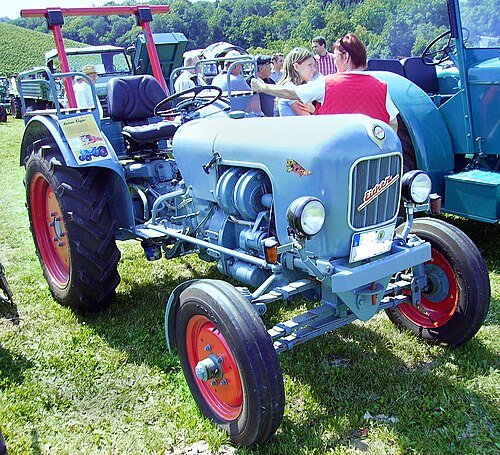

Eicher EM 200 Tiger
Built: 1958–1962 · Series: Raubtiere
More machines from model year 1958
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Eicher Raubtiere – EM 200 Tiger and EM 200/2 Tiger: the small Tiger across two generations, 18.3 to 20.5 kW, 1,962 to 1,963 cc displacement, two cylinders and 1,460 to 1,555 kg
This page lists two generations of the small Eicher Tiger, the EM 200 Tiger and the revised EM 200/2 Tiger, from Eicher's Bavarian production with plants at Forstern and Dingolfing. As the entry model of the predator range, the Tiger occupies the most compact class among Eicher's predator-named ranges.
Read on 3 more paragraphs
The register lists 2 variants with 18.3 to 20.5 kW, or 28 hp, of power from two-cylinder engines of 1,962 to 1,963 cc displacement at a rated speed of 2,000 rpm and 110 Nm of torque. Unladen weights fall between 1,460 and 1,555 kg, dimensions range from 2,990 to 3,024 mm in length, 1,510 to 1,530 mm in width and 1,400 to 1,420 mm in height.
With its small two-cylinder engine and compact dimensions, the Tiger targeted smaller farms needing a manoeuvrable, economical tractor for yard and field work, forming the affordable counterpart to the marque's larger predator-named models.
When buying used, check clutch and gearbox for wear, and the two-cylinder engine for smooth running and a tight head gasket. The bodywork deserves a check for rust around the wings and bonnet, and the hydraulics a look at delivery pressure. Steering box and front axle pivots should be checked for play, and the electrics for brittle, ageing wiring. An active network of collectors and specialist parts dealers exists for Eicher classics such as the Tiger.
Sources: SpecCodex register, model data: Eicher Raubtiere
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 25 hp (18.3 kW)correct |
| Rated speed | 2,000 rpmcorrect |
| Cylinders | 2correct |
| Displacement | 1,962 cm³correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 3,024 mmcorrect |
|---|---|
| Width | 1,510 mmcorrect |
| Height | 1,400 mmcorrect |
| Wheelbase | 1,850 mmcorrect |
| Unladen weight | 1,460 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 8/4-Getriebecorrect |
| Forward gears | 8correct |
| Reverse gears | 4correct |
| Front tyres | 5.50-16, 6.00-16correct |
| Rear tyres | 8-32, 10-28, 11-28, 9-32correct |
| Top speed | 20 km/hcorrect |
Working data
| Fuel tank capacity | 38 lcorrect |
|---|
Origin and approval
| Construction | frameless unit constructioncorrect |
|---|---|
| Units built | ca. 15.000correct |
Other data
| PTO speed | 540/1000 rpmcorrect |
|---|
Where this model stands
Power-to-weight ratio: 12.5 kW/t (18 kW / 1.5 t)
Power class: Compact (< 40 hp)
Stronger than 12% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Eicher EM 200 Tiger have?
The Eicher EM 200 Tiger delivers 25 hp.
How much does the Eicher EM 200 Tiger weigh?
The unladen weight is 1,460 kg.
What engine does the Eicher EM 200 Tiger have?
2 cylinders, 1,962 cm³ displacement, Diesel.
How fast does the Eicher EM 200 Tiger go?
Top speed is 20 km/h.
What are the dimensions of the Eicher EM 200 Tiger?
3,024 mm × 1,510 mm × 1,400 mm.
When was the Eicher EM 200 Tiger built?
Production years: 1958–1962.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
