Eicher Puma II (ES 400)
Built: 1963–1970 · Series: Puma (ES)
More machines from model year 1963
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

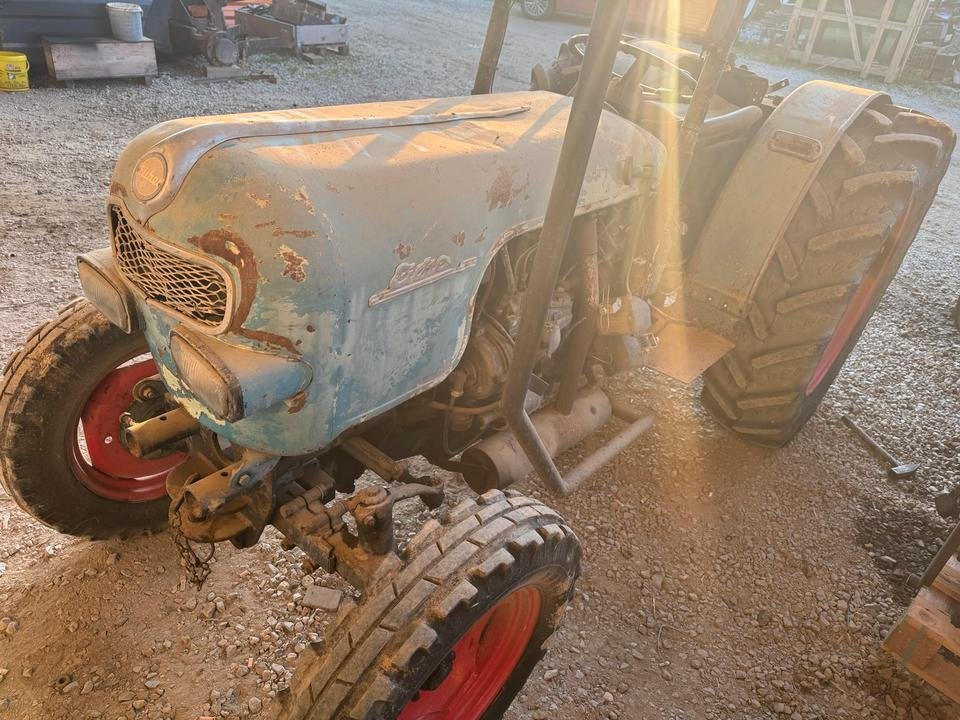

Eicher Puma II (ES 400): air-cooled three-cylinder farm tractor from Bavaria with a 2,944cc engine, 38 hp and a weight of 1,560 kg, built from 1963 to 1970
Eicher was a Bavarian tractor manufacturer based in Forstern near Amerang that built its own farm tractors with air-cooled diesel engines from the 1930s into the 1970s – a technology otherwise mainly associated in German tractor building with Deutz and Hatz. The Puma II (ES 400) belongs to the Puma range and was built between 1963 and 1970, a period when West German farms increasingly turned to compact but sufficiently powerful tractors for medium-sized holdings.
Read on 3 more paragraphs
The three-cylinder diesel engine displaces 2,944cc and produces 38 hp at 2,000 rpm. At 1,560 kg, 2,920 mm long, 1,220 mm high and 1,065 mm wide, the Puma II counts among the compact standard tractors of its era; a 1,995 mm wheelbase gives it a stable yet manoeuvrable stance. Its design top speed is 19.3 km/h.
Air-cooled diesel engines dispense with cooling water, a radiator and a water pump, which makes them frost-resistant and low-maintenance, though they run noisier than liquid-cooled units. A three-cylinder engine of this size was built for classic field work: ploughing, harrowing and driving mounted implements through the power take-off, not for the heavy drawbar work expected of tractors today.
When buying one of these tractors second-hand, the condition of the cylinder heads and cooling fins matters most, as cracks are not uncommon on air-cooled diesels of this age. Also worth checking are the clutch, the power take-off drive and the tightness of the injection pump; parts for Eicher engines today come mainly from specialist vintage-vehicle dealers rather than a regular supply network.
Sources: SpecCodex-Register: Kennwerte des Modells Puma II (ES 400)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 38 hpcorrect |
| Rated speed | 2,000 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,944 cm³correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 2,920 mmcorrect |
|---|---|
| Width | 1,065 mmcorrect |
| Height | 1,220 mmcorrect |
| Wheelbase | 1,995 mmcorrect |
| Ground clearance | 265 mmcorrect |
| Unladen weight | 1,560 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | ZF A210correct |
| Front tyres | 5.00-16correct |
| Rear tyres | 11.2-24/12.4-24correct |
| Top speed | 19.3 km/hcorrect |
Origin and approval
| Construction | frameless unit constructioncorrect |
|---|---|
| Units built | 1,171correct |
Where this model stands
Power-to-weight ratio: 17.9 kW/t (28 kW / 1.6 t)
Power class: Compact (< 40 hp)
Stronger than 23% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Eicher Puma II (ES 400) have?
The Eicher Puma II (ES 400) delivers 38 hp.
How much does the Eicher Puma II (ES 400) weigh?
The unladen weight is 1,560 kg.
What engine does the Eicher Puma II (ES 400) have?
3 cylinders, 2,944 cm³ displacement, Diesel.
How fast does the Eicher Puma II (ES 400) go?
Top speed is 19.3 km/h.
What are the dimensions of the Eicher Puma II (ES 400)?
2,920 mm × 1,065 mm × 1,220 mm.
When was the Eicher Puma II (ES 400) built?
Production years: 1963–1970.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
