Eicher/massey Ferguson MF 1132
Built: 1977–1982 · Series: Phase III-Baureihe
More machines from model year 1977
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

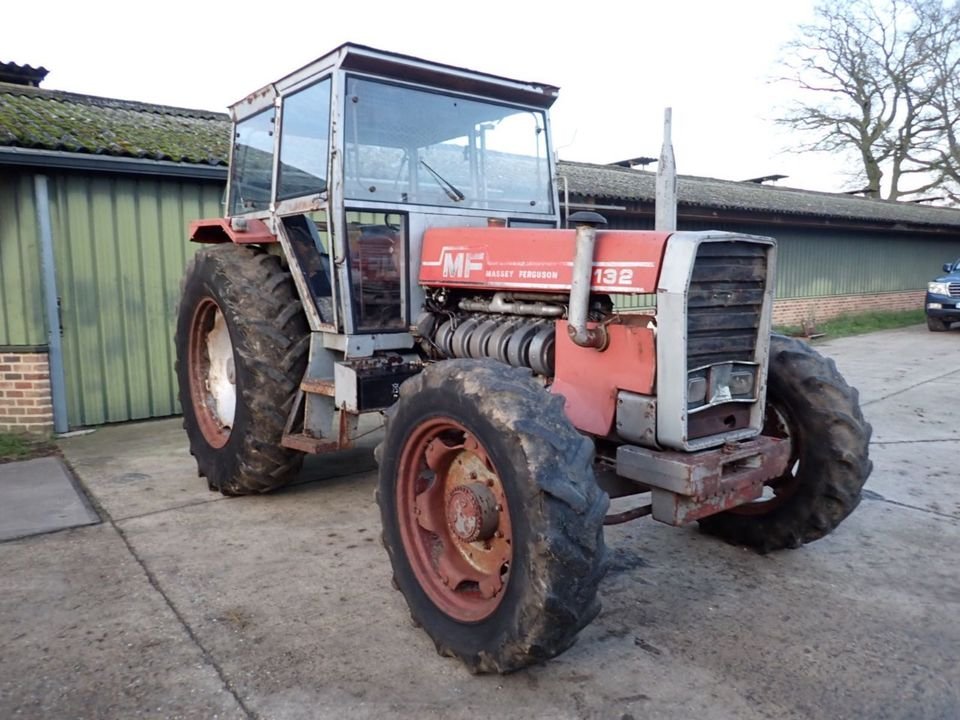

Massey Ferguson 1132 (Eicher, Phase III range): large air-cooled six-cylinder diesel with 5,890cc displacement, 133 hp and a weight of 5,860 kg, built from 1977 to 1982
The MF 1132 belongs to a range of large air-cooled tractors that the Bavarian manufacturer Eicher built in Germany for Massey Ferguson; the machines carried the joint Eicher/Massey Ferguson designation. The Phase III range was built between 1977 and 1982, a period in which large arable farms increasingly demanded tractors with considerably more power than the standard models common until then.
Read on 3 more paragraphs
The air-cooled six-cylinder diesel engine of 5,890cc produces 133 hp (97.9 kW) at 2,300 rpm and delivers 450 Nm of torque. At 5,860 kg, 4,610 mm long, 2,720 mm high and 2,330 mm wide, the MF 1132 counts among the heaviest air-cooled tractors of its time; the wheelbase is 2,730 mm and the top speed 30 km/h.
At nearly six tonnes and 133 hp, the MF 1132 was built for primary tillage of large arable areas with wide ploughs, cultivators and disc harrows, not for work with light mounted implements. Its design top speed of 30 km/h is well below the 40 km/h limit that defines Germany's tractor licence class L.
When buying one of these large air-cooled six-cylinder tractors second-hand, the condition of the cooling fan and its drive, along with possible cracks in the cylinder heads, matter most, as the large engine unit needs high cooling capacity under continuous use. Also worth checking are the three-point linkage and its couplings, given the heavy mounted implements this tractor was built for, as well as the clutch and gearbox for wear from decades of field work.
Sources: SpecCodex-Register: Kennwerte des Modells MF 1132
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 133 hp (97.9 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Torque | 450 Nmcorrect |
| Speed at max. torque | 1,860 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 5,890 cm³correct |
| Bore | 100 mmcorrect |
| Stroke | 125 mmcorrect |
| Compression ratio | 18correct |
| Injection pressure | 140 barcorrect |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 4,610 mmcorrect |
|---|---|
| Width | 2,330 mmcorrect |
| Height | 2,720 mmcorrect |
| Wheelbase | 2,730 mmcorrect |
| Ground clearance | 435 mmcorrect |
| Unladen weight | 5,860 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 16V/7Rcorrect |
| Front tyres | 14.9-26 AScorrect |
| Rear tyres | 20.8 R 38 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 16.7 kW/t (98 kW / 5.9 t)
Power class: Large (100–180 hp)
Stronger than 79% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Eicher/massey Ferguson MF 1132 have?
The Eicher/massey Ferguson MF 1132 delivers 133 hp.
How much does the Eicher/massey Ferguson MF 1132 weigh?
The unladen weight is 5,860 kg.
What engine does the Eicher/massey Ferguson MF 1132 have?
6 cylinders, 5,890 cm³ displacement, Diesel.
How fast does the Eicher/massey Ferguson MF 1132 go?
Top speed is 30 km/h.
What are the dimensions of the Eicher/massey Ferguson MF 1132?
4,610 mm × 2,330 mm × 2,720 mm.
When was the Eicher/massey Ferguson MF 1132 built?
Production years: 1977–1982.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
