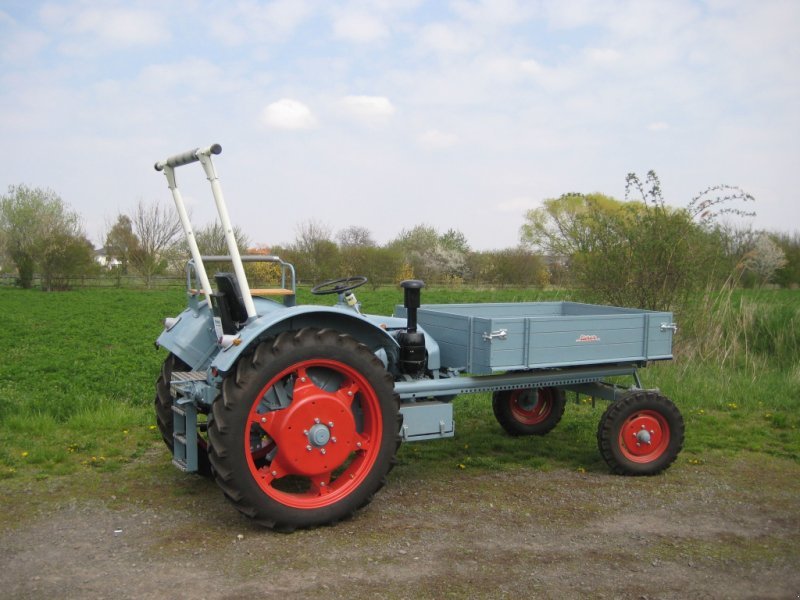

Eicher Kombi G 40
Built: 1964–1966 · Series: Kombi G
More machines from model year 1964
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Eicher Kombi G – light general-purpose tractors from Forstern: Kombi G 25 to Kombi G 280, two- and three-cylinder diesels rated 15–29 kW, 1,400–2,020 kg
The Kombi G is an early line of light general-purpose tractors from Eicher of Forstern, with type designations from Kombi G 25 to Kombi G 280. The line targeted smaller farms needing a versatile, compact tractor for field and yard work, powered by two- and three-cylinder diesel engines.
Read on 3 more paragraphs
The register lists 6 versions rated at 14.6 to 29.3 kW (20 to 40 hp) from two- to three-cylinder diesel engines of 1,700 to 2,944 cm³, torque of 110 Nm at around 2,000 rpm, a lift capacity of up to 850 kg, kerb weights of 1,400 to 2,020 kg, and a length of 3,880 to 5,020 mm, a width of 1,580 to 1,645 mm and a height of 1,470 to 1,770 mm.
As light general-purpose tractors of the post-war era, the Kombi G models competed with comparable small tractors from other German makers and served the market of smaller, often still mixed-farming holdings in southern Germany, where field work, yard tasks and transport were all handled by the same tractor.
On these vintage tractors, check engine and radiator condition, the clutch and mechanical gearbox, the simple hydraulics with lift, and corrosion on sheet-metal parts, wings and the frame; steering and brakes also belong on any test drive. Spares are now only available through specialist Eicher parts dealers, vintage-machinery markets and reproductions of common wear parts.
Sources: SpecCodex register, model data: Eicher Kombi G
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 40 hp (29.3 kW)correct |
| Cylinders | 3correct |
| Displacement | 2,944 cm³correct |
Dimensions and weights
| Length | 5,020 mmcorrect |
|---|---|
| Width | 1,640 mmcorrect |
| Height | 1,700 mmcorrect |
| Wheelbase | 2,940 mmcorrect |
| Unladen weight | 2,020 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 8/4-Getriebecorrect |
| Forward gears | 8correct |
| Reverse gears | 4correct |
| Front tyres | 6.00 - 16correct |
| Rear tyres | 9 - 36correct |
| Top speed | 20 km/hcorrect |
Origin and approval
| Construction | semi-frame constructioncorrect |
|---|---|
| Units built | 239correct |
Where this model stands
Power-to-weight ratio: 14.5 kW/t (29 kW / 2 t)
Power class: Compact (< 40 hp)
Stronger than 25% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Eicher Kombi G 40 have?
The Eicher Kombi G 40 delivers 40 hp.
How much does the Eicher Kombi G 40 weigh?
The unladen weight is 2,020 kg.
What engine does the Eicher Kombi G 40 have?
3 cylinders, 2,944 cm³ displacement, Diesel.
How fast does the Eicher Kombi G 40 go?
Top speed is 20 km/h.
What are the dimensions of the Eicher Kombi G 40?
5,020 mm × 1,640 mm × 1,700 mm.
When was the Eicher Kombi G 40 built?
Production years: 1964–1966.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
