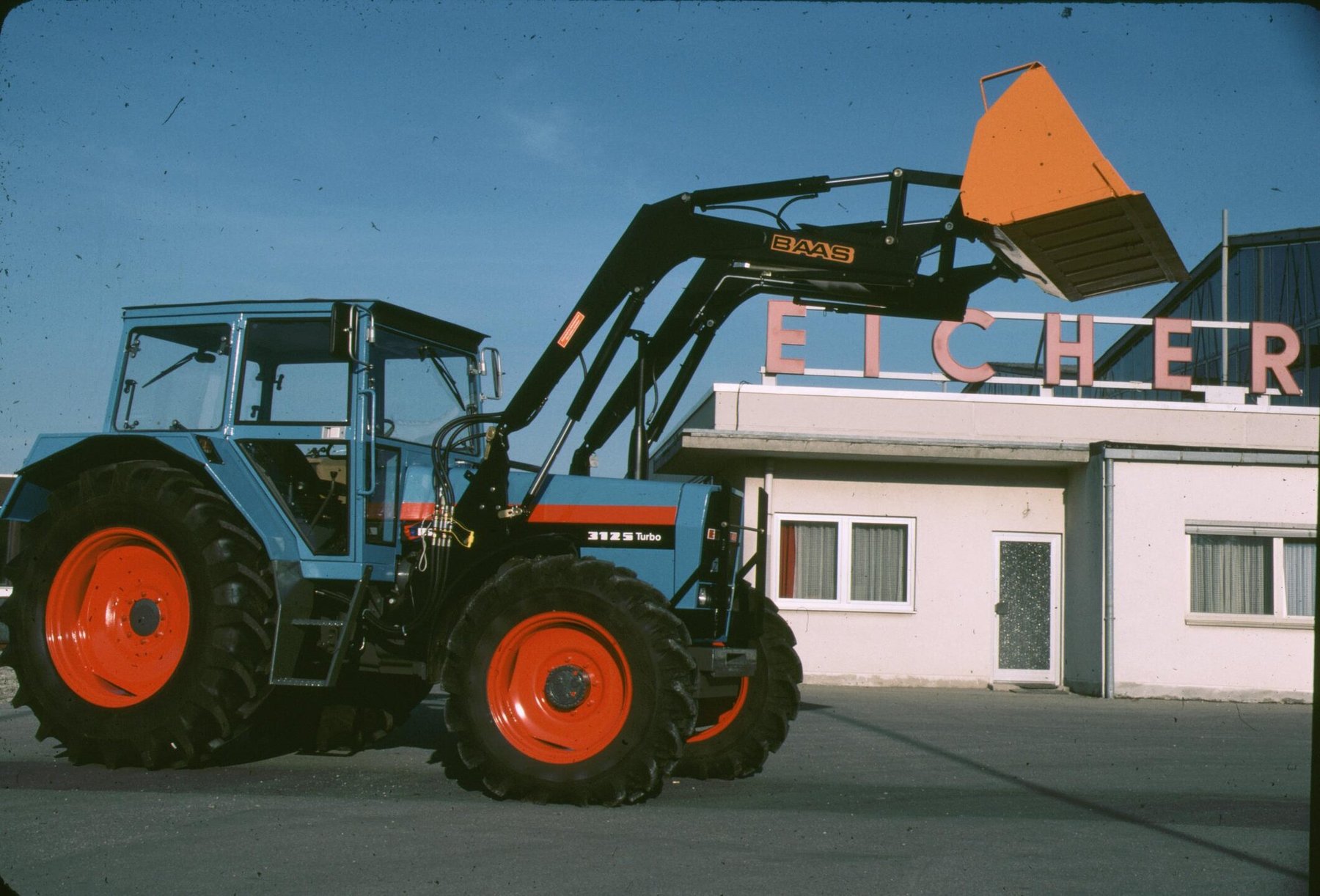

Eicher 635 K
Built: 1986–1993 · Series: 600 er - Reihe
More machines from model year 1986
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Eicher 600 series – the last narrow-track and plantation tractors from Forstern (1986–1993): K, V, P and A, air-cooled two- to four-cylinders
The 600 series is Eicher's tractor programme of the late 1980s and early 1990s – according to the Traktorenlexikon the 642 K ran from 1986 to 1993 – built in Forstern near Munich, where Eicher had made air-cooled diesel tractors since 1936. After Massey Ferguson's shareholding in the 1970s the firm had concentrated on specialty tractors for vineyards, orchards, hops and vegetables; the 600s are the last generation of that direction before production in Forstern ended in the 1990s and the brand lived on at Eicher Motors in India.
Read on 3 more paragraphs
The letters distinguish track width and version, and the register makes the logic visible in the widths: the K models (635 K, 642 K, 645 K) are the narrowest at 905 to 960 mm, the V models (648 V, 656 V, 666 V) measure 983 to 1,025 mm, the P models (656 P, 666 P, 680 P) 1,284 to 1,360 mm; an appended A always means four-wheel drive (642 K versus 642 KA, 656 P versus 656 PA) and makes the machine wider and about 150 kg heavier, and the B in PB and PAB marks an even wider version at 1,341 mm. The models run from 1,963 to 3,927 cm³ with two to four air-cooled cylinders, 56 to 80 hp where output is recorded, unladen weights from 1,510 to 2,825 kg, lengths from 2,495 to 3,450 mm and heights from 1,920 to 2,325 mm.
The air-cooled Eicher engines with individual cylinders on a common crankcase are regarded as robust and easy to repair; a cylinder can be replaced individually, and a radiator cannot leak because there is none.
On used tractors, the condition of cylinders and cooling blower, the gearbox, the steering on narrow-track models and the front axle on four-wheel-drive tractors count; parts supply runs through specialists and an active club scene.
Sources: SpecCodex register, model data: Eicher 600er-Reihe, Traktorenlexikon: Eicher 642 K (Bauzeit 1986–1993) (Wikibooks), Eicher (Traktorenhersteller) (Wikipedia)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 35 hp (26 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Torque | 132 Nmcorrect |
| Speed at max. torque | 1,450 rpmcorrect |
| Cylinders | 2correct |
| Displacement | 1,963 cm³correct |
| Bore | 100 mmcorrect |
| Stroke | 125 mmcorrect |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 2,495 mmcorrect |
|---|---|
| Width | 905 mmcorrect |
| Height | 1,920 mmcorrect |
| Wheelbase | 1,665 mmcorrect |
| Ground clearance | 260 mmcorrect |
| Unladen weight | 1,510 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 11V/2Rcorrect |
| Front tyres | 7.00-12correct |
| Rear tyres | 11.2 R 20correct |
| Top speed | 25.4 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 17.2 kW/t (26 kW / 1.5 t)
Power class: Compact (< 40 hp)
Stronger than 21% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Eicher Eicher 635 K have?
The Eicher Eicher 635 K delivers 35 hp.
How much does the Eicher Eicher 635 K weigh?
The unladen weight is 1,510 kg.
What engine does the Eicher Eicher 635 K have?
2 cylinders, 1,963 cm³ displacement, Diesel.
How fast does the Eicher Eicher 635 K go?
Top speed is 25.4 km/h.
What are the dimensions of the Eicher Eicher 635 K?
2,495 mm × 905 mm × 1,920 mm.
When was the Eicher Eicher 635 K built?
Production years: 1986–1993.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
