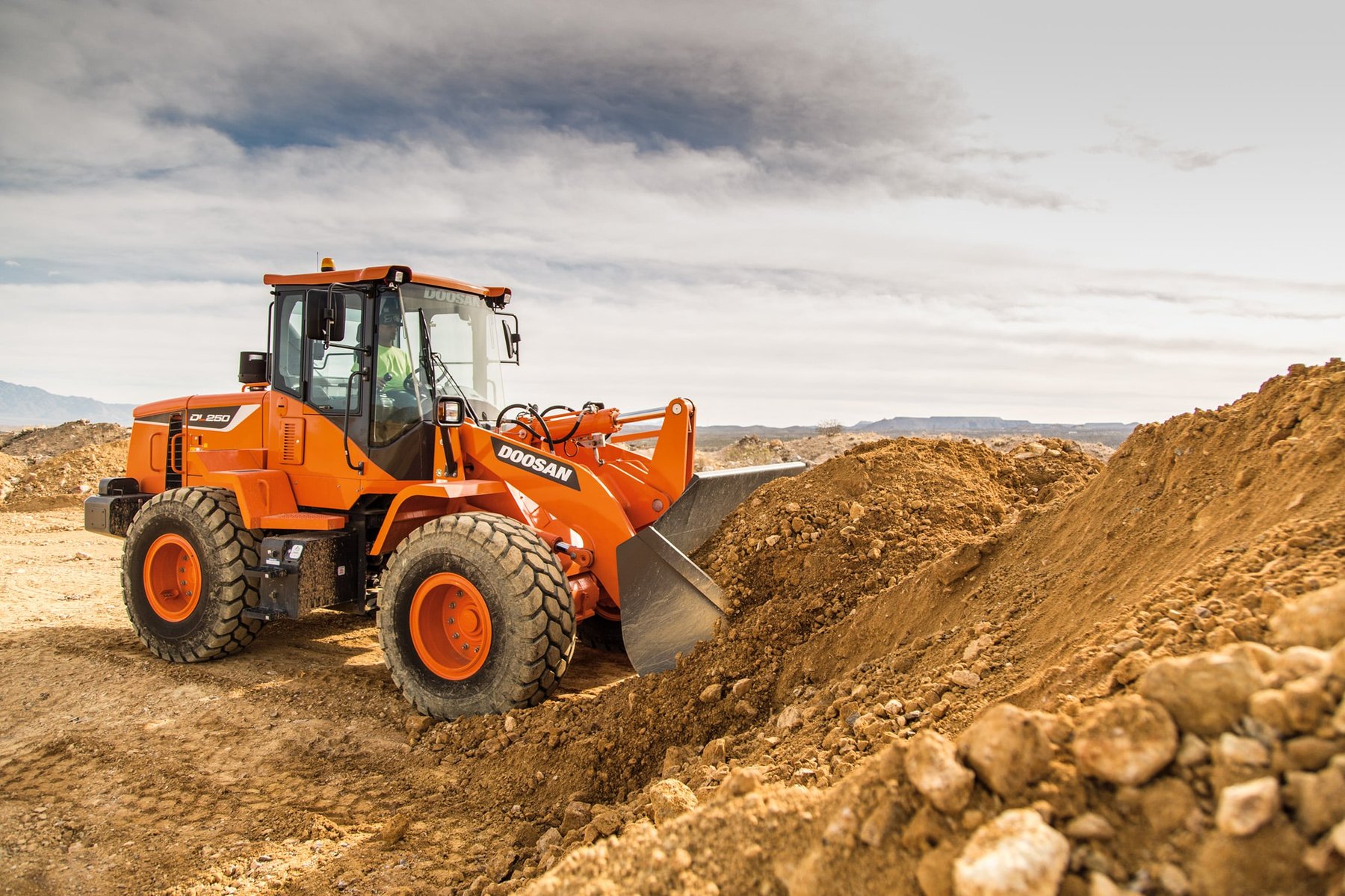

Doosan DL250TC

Series: Doosan Integrated Tool Carrier

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Doosan Integrated Tool Carrier series from Doosan includes the DL250TC. The engine delivers 164.2 hp (114.1 kW), with a displacement of 5,899.3 cm³. Torque is 804 Nm. The unladen weight is 14,099.9 kg. The wheelbase measures 3,020.6 mm. Ground clearance is 411.5 mm. The tank holds 255.1 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. The hydraulic tank holds 158.2 litres. The cooling system holds 45 litres. The oil fill is 27.3 litres. The electrical system runs on 24 V. The engine fitted is the DL06. Tyre size: 20,5R25. The Doosan Integrated Tool Carrier series covers 4 models. Rated output within it ranges from 111.5 to 164.2 hp; the DL250TC sits at the top of that range with 164.2 hp. Its immediate neighbours are the MEGA200TC below it with 145 hp. 314 Doosan models across 20 series are on record. The model is listed under Telehandlers. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine model	DL06correct
Power	164.2 hp (114.1 kW)correct
Torque	804correct
Displacement	5,899.3 cm³correct
Aspiration	turbo compressor and air-air coolingcorrect
Coolant capacity	45 lcorrect
Engine oil capacity	27.3 lcorrect

Dimensions and weights

Wheelbase	3,020.6correct
Ground clearance	411.5correct
Unladen weight	14,099.9 kgcorrect

Drivetrain and chassis

Gearbox type	powershift transmissioncorrect
Forward gears	4correct
Reverse gears	3correct
Tyre size	20.5R25correct
Turning radius	5,490 mmcorrect
System voltage	24 Vcorrect

Working data

Lift height	3,720 mmcorrect
Hydraulic oil capacity	158.2 lcorrect
Fuel tank capacity	255.1 lcorrect

Other data

Cab height	3,261.4correct

More machines with this engine (Doosan DL06, 21)

Where this model stands

Power-to-weight ratio: 8.1 kW/t (114 kW / 14.1 t)

Stronger than 91% of the telehandlers in the register — out of 661 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Doosan DL250TC have?

The Doosan DL250TC delivers 164 hp.

How much does the Doosan DL250TC weigh?

The unladen weight is 14,100 kg.

What engine does the Doosan DL250TC have?

5,899 cm³ displacement.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
