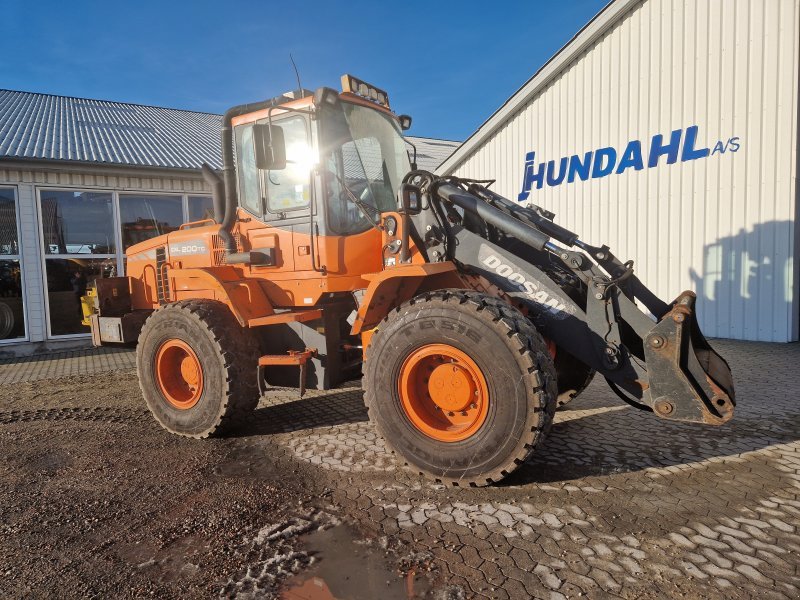

Doosan DL200TC

Series: Doosan Integrated Tool Carrier

Source: https://www.technikboerse.com/gebraucht/radlader-255/doosan-

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Doosan Integrated Tool Carrier series from Doosan includes the DL200TC. The engine delivers 145 hp (102.2 kW), with a displacement of 5,899.3 cm³. Torque is 686 Nm. The unladen weight is 11,580.2 kg. The wheelbase measures 2,901.7 mm. Ground clearance is 445 mm. The tank holds 243 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. The hydraulic tank holds 115.1 litres. The cooling system holds 40.1 litres. The oil fill is 27.3 litres. The electrical system runs on 24 V. The engine fitted is the DL06. Tyre size: 20,5R25. The Doosan Integrated Tool Carrier series covers 4 models. Rated output within it ranges from 111.5 to 164.2 hp; the DL200TC sits in the upper part of that range with 145 hp. Its immediate neighbours are the MEGA160TC below it with 111.5 hp and the DL250TC above it with 164.2 hp. 314 Doosan models across 20 series are on record. The model is listed under Telehandlers. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine model	DL06correct
Power	145 hp (102.2 kW)correct
Torque	686correct
Displacement	5,899.3 cm³correct
Aspiration	turbo compressor and air to air coolingcorrect
Coolant capacity	40.1 lcorrect
Engine oil capacity	27.3 lcorrect

Dimensions and weights

Wheelbase	2,901.7correct
Ground clearance	445correct
Unladen weight	11,580.2 kgcorrect

Drivetrain and chassis

Gearbox type	powershift transmissioncorrect
Forward gears	4correct
Reverse gears	3correct
Tyre size	20.5R25correct
System voltage	24 Vcorrect

Working data

Hydraulic oil capacity	115.1 lcorrect
Fuel tank capacity	243 lcorrect

Other data

Height	3,240correct

Where this model stands

Power-to-weight ratio: 8.8 kW/t (102 kW / 11.6 t)

Stronger than 83% of the telehandlers in the register — out of 658 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Doosan DL200TC have?

The Doosan DL200TC delivers 145 hp.

How much does the Doosan DL200TC weigh?

The unladen weight is 11,580 kg.

What engine does the Doosan DL200TC have?

5,899 cm³ displacement.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
