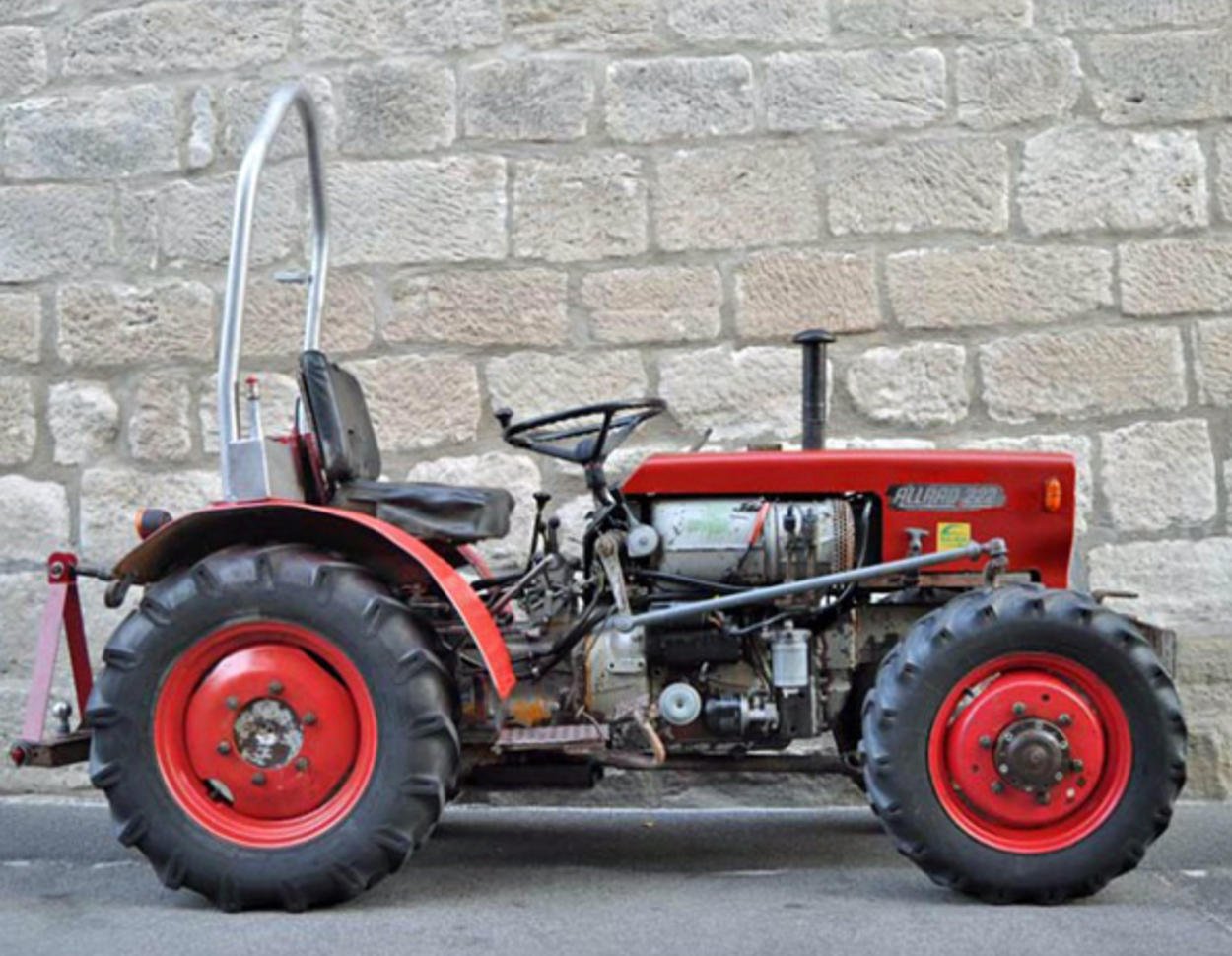

Dexheimer HINTERRAD 222 (MWM D302-2)
Built: 1980–1985 · Series: 222
More machines from model year 1980
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Dexheimer Allrad 222 – the narrow-gauge special-crop tractor: Farymann and MWM two-cylinders, 16 to 23.5 kW, 825 to 900 mm width, 1.03 to 1.22 t
The Allrad 222 is a narrow-gauge four-wheel-drive tractor for special-crop farming, of the kind needed between tight rows in viticulture and orchards: at widths under a metre the machine fits where standard tractors no longer pass. The type logic distinguishes drive and engine: HINTERRAD 222 is the rear-wheel-drive version, ALLRAD 222 the four-wheel-drive version, with the fitted engine given in brackets – Farymann P and Farymann S as well as MWM D302-2 and D325-2, all small, air- or water-cooled industrial diesels with two cylinders, as small-series makers of narrow special-crop tractors typically sourced from suppliers.
Read on 3 more paragraphs
The register lists 5 versions with 16 to 23.5 kW from two-cylinders of 1,276 to 1,689 cm³, operating weights from 1,030 to 1,220 kg, lengths from 2,240 to 2,500 mm and widths from 825 to 900 mm; the recorded overall heights are 1,950 to 1,980 mm, the rated speed around 2,500 rpm.
Such small tractors filled a niche on the steep slopes of viticulture that big makers such as Fendt or Deutz-Fahr only later occupied with their own narrow ranges; on the used market they are rare today and sought chiefly by part-time winegrowers.
On used tractors, the condition of engine and cooling system, leak-free hydraulics, rust on the narrow frame, the condition of the front axle on the four-wheel-drive model and parts supply, now only limited and running through specialists for the small Farymann and MWM engines, are what count.
Sources: SpecCodex register, model data: Dexheimer 222
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 28 hp (21 kW)correct |
| Cylinders | 2correct |
| Displacement | 1,488 cm³correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 2,400 mmcorrect |
|---|---|
| Width | 860 mmcorrect |
| Height | 1,950 mmcorrect |
| Wheelbase | 1,680 mmcorrect |
| Ground clearance | 245 mmcorrect |
| Unladen weight | 1,100 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 6/1correct |
| Front tyres | 5.50-16correct |
| Rear tyres | 7.50-18 AScorrect |
| Top speed | 20 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Other data
| PTO speed | 540 rpmcorrect |
|---|
Where this model stands
Power-to-weight ratio: 19.1 kW/t (21 kW / 1.1 t)
Power class: Compact (< 40 hp)
Stronger than 16% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Dexheimer HINTERRAD 222 (MWM D302-2) have?
The Dexheimer HINTERRAD 222 (MWM D302-2) delivers 28 hp.
How much does the Dexheimer HINTERRAD 222 (MWM D302-2) weigh?
The unladen weight is 1,100 kg.
What engine does the Dexheimer HINTERRAD 222 (MWM D302-2) have?
2 cylinders, 1,488 cm³ displacement, Diesel.
How fast does the Dexheimer HINTERRAD 222 (MWM D302-2) go?
Top speed is 20 km/h.
What are the dimensions of the Dexheimer HINTERRAD 222 (MWM D302-2)?
2,400 mm × 860 mm × 1,950 mm.
When was the Dexheimer HINTERRAD 222 (MWM D302-2) built?
Production years: 1980–1985.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
