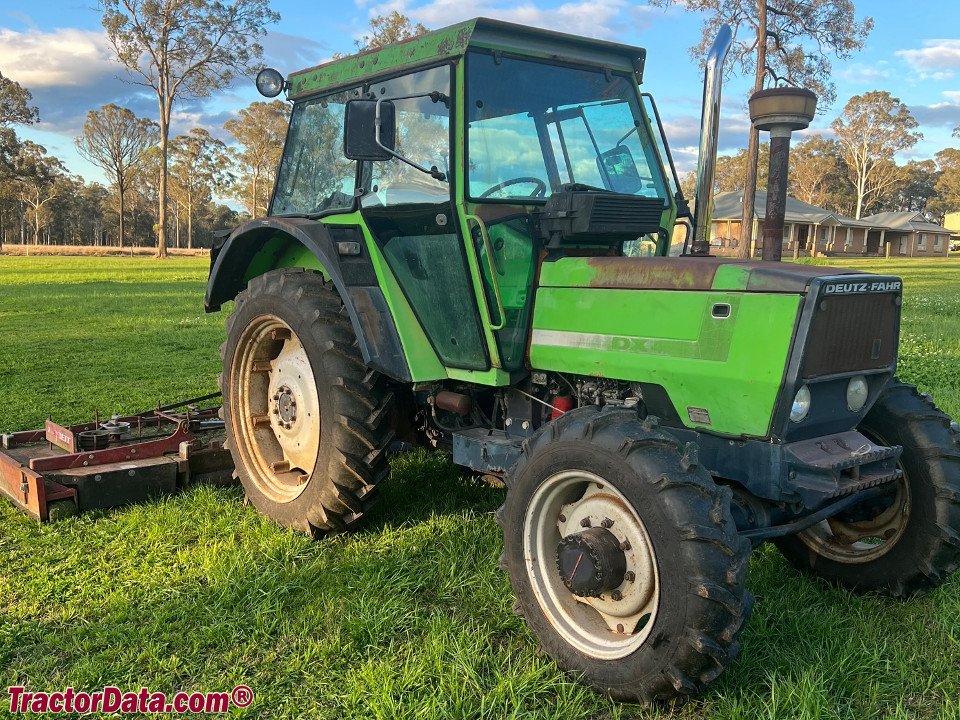

Deutz-Fahr DX 4.30

Built: 1983–1989 · Series: DX 4-Reihe

More machines from model year 1983

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The DX 4-Reihe series from Deutz-Fahr includes the DX 4.30. Production: 1983–1989. The engine delivers 75 hp (54.9 kW), has 4 cylinders, with a displacement of 4,086 cm³. Torque is 266 Nm. Rated speed is 2,300 rpm. The machine is 4,140 mm long, 2,300 mm wide and 2,615 mm high. The unladen weight is 3,920 kg. The wheelbase measures 2,400 mm. Ground clearance is 425 mm. Top speed is 30 km/h. The tank holds 125 litres. Transmission: 15V/5R or 18V/6R. The engine is air-cooled. Tyres: front 13.6-24 AS, rear 18.4 R 34 AS. The fuel is diesel. The bore measures 100 mm. The stroke is 125 mm. Maximum torque is reached at 1,503 rpm. The linkage is category II. The DX 4-Reihe series covers 4 models. Rated output within it ranges from 70 to 90 hp; the DX 4.30 sits in the lower part of that range with 75 hp. Its immediate neighbours are the DX 4.10 below it with 70 hp and the DX 4.50 A above it with 82 hp. Unladen weight within it ranges from 3,660 to 4,170 kg; here the DX 4.30 sits in the middle of that range with 3,920 kg. 692 Deutz-Fahr models across 50 series are on record.

Deutz-Fahr DX 4 series – 1980s compact class from Cologne and Lauingen: type number by power class and development stage, air-cooled four-cylinders, 51.5 to 65.9 kW, A four-wheel-drive version

The DX series was Deutz-Fahr's mid-size range, the company formed in 1968 from the merger of the Cologne engine maker Deutz with the Baden-based farm machinery maker Fahr of Gottmadingen and Lauingen an der Donau. In the 1980s Deutz-Fahr ordered its tractors by power class: the first digit after DX names the class, the digits after the point (here 10, 30, 50, 70) the development stage within that class in ascending power, while the A suffix marks the four-wheel-drive version. All four models are driven by air-cooled Deutz diesel engines that need no coolant or radiator.

Read on 3 more paragraphs

The register lists here four versions with 51.5 to 65.9 kW (70 to 75 hp) from four-cylinder engines of 3,768 to 4,086 cm3 displacement. Unladen weight ranges from 3,660 to 4,170 kg, overall length from 4,040 to 4,170 mm, width sits around 2,300 mm, and height between 2,610 and 2,640 mm. Torque ranges from 237 to 320 Nm at a rated speed of 2,300 rpm.

The DX 4 series targeted mid-sized mixed farms looking for a versatile yard tractor for fieldwork, transport and front-loader work, competing with comparable four-cylinder tractors from Fendt Farmer and Massey Ferguson of the period.

On a used purchase the air-cooled engines deserve particular attention: cooling fins, the fan and the fan belt must be free of dirt and cracks, since a failure of the air cooling quickly leads to engine damage. Also worth checking are the clutch, the gearbox synchro rings, the tightness of the hydraulics and lift linkage, and rust on the stub axles and frame. Wear parts for the Deutz engines are still available through the SDF/Deutz-Fahr parts network.

Sources: SpecCodex register, model data: Deutz-Fahr DX 4-Reihe, Deutz-Fahr (SDF Group, Hersteller)

Technical data

Engine

Fuel	dieselcorrect
Power	75 hp (54.9 kW)correct
Rated speed	2,300 rpmcorrect
Torque	266 Nmcorrect
Speed at max. torque	1,503 rpmcorrect
Cylinders	4correct
Displacement	4,086 cm³correct
Bore	100 mmcorrect
Stroke	125 mmcorrect
Cooling	air-cooledcorrect

Dimensions and weights

Length	4,140 mmcorrect
Width	2,300 mmcorrect
Height	2,615 mmcorrect
Wheelbase	2,400 mmcorrect
Ground clearance	425 mmcorrect
Unladen weight	3,920 kgcorrect

Drivetrain and chassis

Drive	rear- and four-wheel drivecorrect
Gearbox	15V/5R or 18V/6Rcorrect
Front tyres	13.6-24 AScorrect
Rear tyres	18.4 R 34 AScorrect
Top speed	30 km/hcorrect

Working data

Fuel tank capacity	125 lcorrect

Other data

Linkage category	Cat IIcorrect

Where this model stands

Power-to-weight ratio: 14 kW/t (55 kW / 3.9 t)

Power class: Universal (40–100 hp)

Stronger than 51% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Deutz-Fahr DX 4.30 have?

The Deutz-Fahr DX 4.30 delivers 75 hp.

How much does the Deutz-Fahr DX 4.30 weigh?

The unladen weight is 3,920 kg.

What engine does the Deutz-Fahr DX 4.30 have?

4 cylinders, 4,086 cm³ displacement, Diesel.

How fast does the Deutz-Fahr DX 4.30 go?

Top speed is 30 km/h.

What are the dimensions of the Deutz-Fahr DX 4.30?

4,140 mm × 2,300 mm × 2,615 mm.

When was the Deutz-Fahr DX 4.30 built?

Production years: 1983–1989.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
