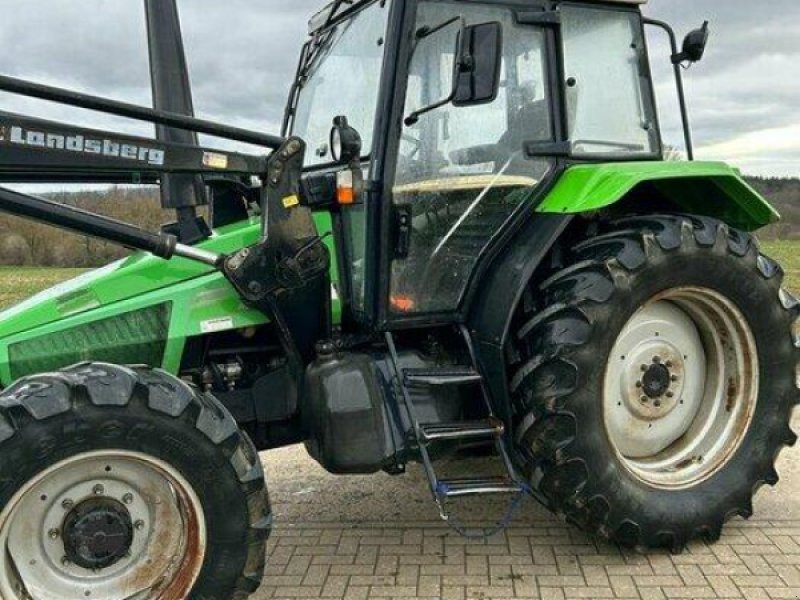

Deutz-Fahr AgroXtra 4.47
Built: 1993–1995 · Series: AgroXtra
More machines from model year 1993
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Deutz-Fahr AgroXtra – the SDF Group's entry class: AgroXtra 3.57 to 6.17, three- to six-cylinder diesels rated 44–83 kW, 3,290–4,550 kg
The AgroXtra line filled out Deutz-Fahr's entry-level segment below the large Agrotron models. Deutz-Fahr has belonged to the SDF Group, headquartered in Treviglio, Italy, since the merger of SAME and Deutz-Fahr. The type designation follows a series-dot-grade pattern, where the first digit marks the series (3, 4 or 6) and the digits after the dot the grade within that series – from the AgroXtra 3.57 with a three-cylinder engine to the AgroXtra 6.17 with a six-cylinder at the top of the range.
Read on 3 more paragraphs
The register lists 6 versions rated at 43.9 to 82.7 kW (60 to 113 hp) from three- to six-cylinder diesel engines of 3,064 to 6,128 cm³, torque of 195 to 387 Nm at 2,300 to 2,500 rpm, kerb weights of 3,290 to 4,550 kg, and a length of 3,680 to 4,530 mm, a width of 1,870 to 2,304 mm and a height of 2,460 to 2,735 mm.
The AgroXtra targeted medium-sized farms wanting a robust, technically simpler tractor below the fully equipped Agrotron class, putting it up against entry models from Fendt, John Deere and Case IH.
On a used example, check engine and injection condition, the clutch and mechanical or power-shift transmission, the hydraulic pump and lift, and cab seals and electrics; on the larger six-cylinder versions also boost pressure and the turbocharger. Spares run through Deutz-Fahr's SDF dealer network.
Sources: SpecCodex register, model data: Deutz-Fahr AgroXtra, Deutz-Fahr (SDF-Gruppe, Hersteller)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 82 hp (60.2 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Torque | 297 Nmcorrect |
| Cylinders | 4correct |
| Displacement | 4,086 cm³correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 4,215 mmcorrect |
|---|---|
| Width | 1,870 mmcorrect |
| Height | 2,640 mmcorrect |
| Wheelbase | 2,440 mmcorrect |
| Ground clearance | 450 mmcorrect |
| Unladen weight | 3,780 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 15V/5R or 18V/6Rcorrect |
| Front tyres | 13.6 R 24 AScorrect |
| Rear tyres | 16.9 R 34 AScorrect |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 130 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 15.9 kW/t (60 kW / 3.8 t)
Power class: Universal (40–100 hp)
Stronger than 57% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Deutz-Fahr AgroXtra 4.47 have?
The Deutz-Fahr AgroXtra 4.47 delivers 82 hp.
How much does the Deutz-Fahr AgroXtra 4.47 weigh?
The unladen weight is 3,780 kg.
What engine does the Deutz-Fahr AgroXtra 4.47 have?
4 cylinders, 4,086 cm³ displacement, Diesel.
How fast does the Deutz-Fahr AgroXtra 4.47 go?
Top speed is 30 km/h.
What are the dimensions of the Deutz-Fahr AgroXtra 4.47?
4,215 mm × 1,870 mm × 2,640 mm.
When was the Deutz-Fahr AgroXtra 4.47 built?
Production years: 1993–1995.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
