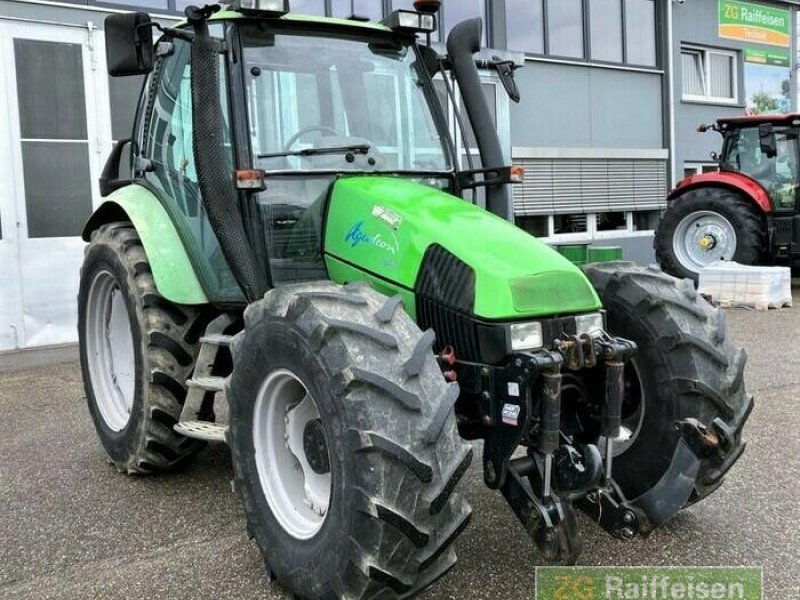

Deutz-Fahr Agrotron 100
Built: 1997–2001 · Series: Agrotron MK2
More machines from model year 1997
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Agrotron 100 (MK2): Deutz-Fahr tractor built 1997 to 2001 with a 3.2-litre four-cylinder engine, 69.9 kW, an unladen weight of 4,220 kg and a gross weight of 7,500 kg
The Agrotron 100 belongs to the second Agrotron generation (MK2) from Deutz-Fahr and was built from 1997 to 2001. At that time, the Agrotron range formed the mid to upper power class within Deutz-Fahr's field-tractor programme.
Read on 3 more paragraphs
The four-cylinder diesel engine with 3,192 cm³ of displacement produces 95 hp, or 69.9 kW, at 2,300 rpm, with 356 Nm of torque. At an unladen weight of 4,220 kg and a gross weight of 7,500 kg, 4,005 mm long, 2,765 mm high, 2,060 mm wide and with a 2,419 mm wheelbase, the tractor is built for a top speed of 30 km/h.
The gap between the 4,220 kg unladen weight and the 7,500 kg gross weight shows that the Agrotron 100 has plenty of payload left for heavy implements and trailers; a four-cylinder engine with just under 70 kW covers both tillage on medium-sized fields and transport work with a fully loaded trailer. Making full use of the gross weight puts extra weight on having a properly working trailer brake, since the chassis was engineered for 30 km/h at this weight class.
When buying a used Agrotron 100 of this age, the condition of the clutch and gearbox matters most, since four-cylinder field tractors from these years have often already run up several thousand hours. Also worth checking are the seals and condition of the hydraulic pump, corrosion on the fenders and step plates, and the brakes under a full trailer load.
Sources: SpecCodex-Register: Kennwerte des Modells Agrotron 100, Deutz-Fahr (manufacturer)
Technical data
Engine
| Fuel | Diesel / Biodieselcorrect |
|---|---|
| Power | 95 hp (69.9 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Torque | 356 Nmcorrect |
| Cylinders | 4correct |
| Displacement | 3,192 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,005 mmcorrect |
|---|---|
| Width | 2,060 mmcorrect |
| Height | 2,765 mmcorrect |
| Wheelbase | 2,419 mmcorrect |
| Ground clearance | 485 mmcorrect |
| Unladen weight | 4,220 kgcorrect |
| Gross vehicle weight | 7,500 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 21V/7R or 24V/8Rcorrect |
| Front tyres | 16.9 R 24 AScorrect |
| Rear tyres | 16.9 R 38 AScorrect |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 180 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 16.6 kW/t (70 kW / 4.2 t)
Power class: Universal (40–100 hp)
Stronger than 63% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Deutz-Fahr Agrotron 100 have?
The Deutz-Fahr Agrotron 100 delivers 95 hp.
How much does the Deutz-Fahr Agrotron 100 weigh?
The unladen weight is 4,220 kg.
What is the gross vehicle weight of the Deutz-Fahr Agrotron 100?
7,500 kg.
What engine does the Deutz-Fahr Agrotron 100 have?
4 cylinders, 3,192 cm³ displacement, Diesel / Biodiesel.
How fast does the Deutz-Fahr Agrotron 100 go?
Top speed is 30 km/h.
What are the dimensions of the Deutz-Fahr Agrotron 100?
4,005 mm × 2,060 mm × 2,765 mm.
When was the Deutz-Fahr Agrotron 100 built?
Production years: 1997–2001.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 27 individual figures for this model. They come from 3 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Sources: Wikibooks Traktorenlexikon (CC BY-SA 4.0) (retrieved August 2026) · Traficom — Finnish vehicle register (retrieved August 2026) · Latvian open data portal (retrieved August 2026) · Values adopted and presented in our own form; changes from the source are possible. · How we check the data
