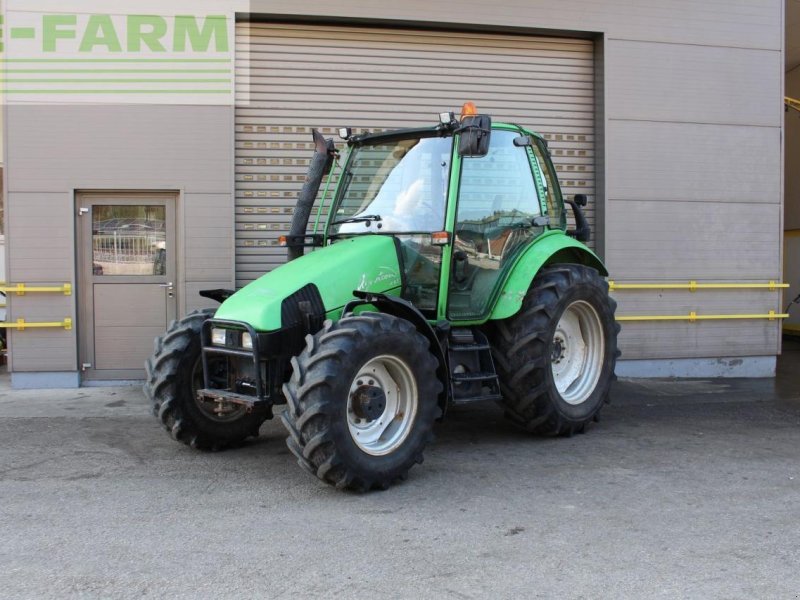

Deutz-Fahr Agrotron 4.85
Built: 1995–1997 · Series: Agrotron (MK1)
More machines from model year 1995
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Deutz-Fahr Agrotron MK1 – 4.85 and 4.90: the upper power class of the first Agrotron generation from Lauingen, 82 to 88 hp, four-cylinder engines at 3,192 cc and 4,040 to 4,160 kg
From 1995 the Agrotron replaced the D-series as Deutz-Fahr's new flagship range, built at the Lauingen an der Donau plant within the SAME Deutz-Fahr group. The 4.85 and 4.90 belong, like the smaller 4.70/4.80, to the first Agrotron generation (MK1), but occupy its upper power step: the figures after the decimal point, 85 and 90, mark the approximate horsepower class within the 4 range.
Read on 3 more paragraphs
The register lists 2 variants with 60.4 to 64.8 kW, or 82 to 88 hp, from four-cylinder engines of 3,192 cc displacement at a rated speed of 2,300 rpm and torque of 297 to 349 Nm. Unladen weights fall between 4,040 and 4,160 kg, with dimensions of 4,005 mm in length, 2,008 mm in width and 2,750 mm in height. Both variants are approved for diesel and biodiesel operation.
With heavier boosting of the same 3.2-litre four-cylinder engine, the 4.85 and 4.90 delivered noticeably more pulling power and displacement utilisation than the smaller Agrotron types, aimed at farms with higher power needs in tillage and haulage, competing directly with the Fendt Favorit and Case IH Maxxum models of the period.
When buying used, the turbocharger and intercooler deserve particular attention given the higher engine output, as does the hydraulic pump under heavy front-loader use. Clutch and cab mounts should be checked for wear, and seals and fuel lines for material compatibility where biodiesel has been used. Parts supply runs reliably through the Deutz-Fahr network.
Sources: SpecCodex register, model data: Deutz-Fahr Agrotron (MK1), Deutz-Fahr (SAME Deutz-Fahr Group, Hersteller)
Technical data
Engine
| Fuel | Diesel / Biodieselcorrect |
|---|---|
| Power | 82 hp (60.4 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Torque | 297 Nmcorrect |
| Cylinders | 4correct |
| Displacement | 3,192 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,005 mmcorrect |
|---|---|
| Width | 2,008 mmcorrect |
| Height | 2,750 mmcorrect |
| Wheelbase | 2,419 mmcorrect |
| Ground clearance | 485 mmcorrect |
| Unladen weight | 4,040 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 21V/7R or 24V/8Rcorrect |
| Front tyres | 16.9 R 24 AScorrect |
| Rear tyres | 16.9 R 38 AScorrect |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 180 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 15 kW/t (60 kW / 4 t)
Power class: Universal (40–100 hp)
Stronger than 57% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Deutz-Fahr Agrotron 4.85 have?
The Deutz-Fahr Agrotron 4.85 delivers 82 hp.
How much does the Deutz-Fahr Agrotron 4.85 weigh?
The unladen weight is 4,040 kg.
What engine does the Deutz-Fahr Agrotron 4.85 have?
4 cylinders, 3,192 cm³ displacement, Diesel / Biodiesel.
How fast does the Deutz-Fahr Agrotron 4.85 go?
Top speed is 30 km/h.
What are the dimensions of the Deutz-Fahr Agrotron 4.85?
4,005 mm × 2,008 mm × 2,750 mm.
When was the Deutz-Fahr Agrotron 4.85 built?
Production years: 1995–1997.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
