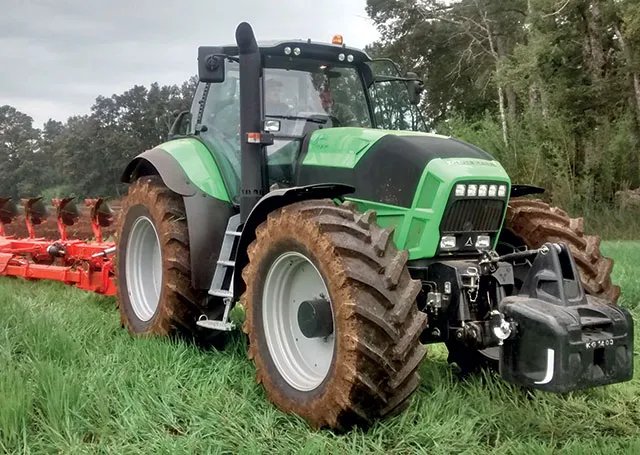

Deutz-Fahr Agrotron L 720
Built: 2006–2013 · Series: Agrotron L
More machines from model year 2006
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Deutz-Fahr Agrotron L – L710 and L720: the large six-cylinder class from Lauingen, 139 to 145 kW, 7,146 cc displacement and 7,236 to 7,520 kg
The Agrotron L range formed the top end of Deutz-Fahr's Agrotron family and, like the rest of the line-up, was built at the Lauingen an der Donau plant. The L in L710 and L720 denotes the large, powerful class within this range, fitted with a six-cylinder engine, with which Deutz-Fahr pushed into the heavy tractor segment for large farms.
Read on 3 more paragraphs
The register lists 2 variants with 139 to 145 kW of power from six-cylinder engines of 7,146 cc displacement at a rated speed of 2,350 rpm and torque of 793 to 820 Nm. Unladen weights fall between 7,236 and 7,520 kg, with dimensions of 4,800 to 5,010 mm in length, 2,500 to 2,550 mm in width and 3,020 mm in height. Both variants are approved for diesel and biodiesel operation up to B100.
With its large-capacity six-cylinder engine and high pulling power, the Agrotron L class competed with the large ranges from Fendt Vario, John Deere and Case IH Puma/Magnum, aimed at large arable operations and contractors with high power needs in tillage and heavy haulage.
When buying used, the turbocharger, intercooler and cooling system deserve particular attention given the high engine output. The large hydraulic pump needs clean hydraulic oil and tight fittings, and cab mounts should be checked for wear in the air suspension. Tyres of this size are costly and worth factoring into the purchase decision; parts supply runs reliably through the Deutz-Fahr network.
Sources: SpecCodex register, model data: Deutz-Fahr Agrotron L, Deutz-Fahr (SAME Deutz-Fahr Group, Hersteller)
Technical data
Engine
| Fuel | Diesel, Biodiesel (B100)correct |
|---|---|
| Power | 197 hp (145 kW)correct |
| Rated speed | 2,350 rpmcorrect |
| Torque | 820 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 7,146 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,800 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Height | 3,020 mmcorrect |
| Wheelbase | 2,985 mmcorrect |
| Ground clearance | 600 mmcorrect |
| Unladen weight | 7,520 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 18/18 or 27/27-powershift transmission transmissioncorrect |
| Forward gears | 27correct |
| Front tyres | 540/65 R 34correct |
| Rear tyres | 650/65 R 42correct |
| Top speed | 40 km/hcorrect |
Origin and approval
| Construction | Standardtraktorcorrect |
|---|
Other data
| Linkage category | Cat II/IIIcorrect |
|---|
Where this model stands
Power-to-weight ratio: 19.3 kW/t (145 kW / 7.5 t)
Power class: Heavy (> 180 hp)
Stronger than 91% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Deutz-Fahr Agrotron L 720 have?
The Deutz-Fahr Agrotron L 720 delivers 197 hp.
How much does the Deutz-Fahr Agrotron L 720 weigh?
The unladen weight is 7,520 kg.
What engine does the Deutz-Fahr Agrotron L 720 have?
6 cylinders, 7,146 cm³ displacement, Diesel, Biodiesel (B100).
How fast does the Deutz-Fahr Agrotron L 720 go?
Top speed is 40 km/h.
What are the dimensions of the Deutz-Fahr Agrotron L 720?
4,800 mm × 2,550 mm × 3,020 mm.
When was the Deutz-Fahr Agrotron L 720 built?
Production years: 2006–2013.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
