Deutz-Fahr 5080 D Ecoline
Built: 2014–2018 · Series: 5 D Ecoline
More machines from model year 2014
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

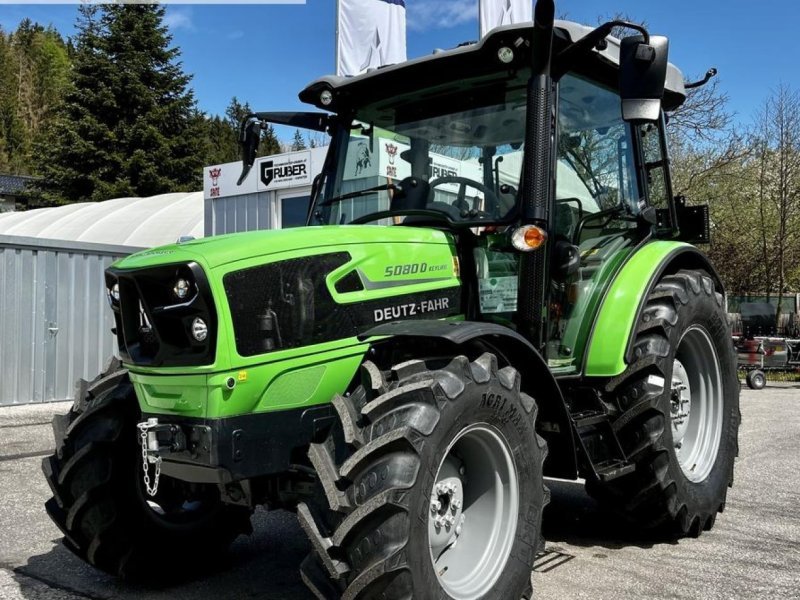

Deutz-Fahr 5080 D Ecoline: water-cooled three-cylinder utility tractor of the Series 5 with 3,000 cm³ displacement, 82 hp (60 kW) and 2,650 kg lift capacity
Deutz-Fahr markets the 5 D range as a compact utility tractor available in several equipment levels; Ecoline denotes the more simply equipped base version. The 5080 D Ecoline is aimed at smaller and medium-sized holdings needing a robust, uncomplicated tractor.
Read on 3 more paragraphs
The three-cylinder diesel engine with 3,000 cm³ displacement is water-cooled and produces 82 hp, or 60 kW, at 2,200 rpm. At 3,200 kg unladen weight and 5,200 kg permissible gross weight, with 3,997 mm length, 1,982 mm width and 2,590 mm height, the hydraulics lift up to 2,650 kg.
With a top speed of 40 km/h, the 5080 D Ecoline reaches the upper limit of driving licence category L. Water cooling of the three-cylinder engine follows the modern Deutz-Fahr standard, and the 2,650 kg lift capacity on the three-point linkage allows operation of medium-weight implements for tillage and grassland work.
When buying a 5080 D Ecoline, check the condition of the radiator, water pump and coolant hoses, and the tightness of the hydraulic cylinders on the lift arms and implements. Also check the clutch, gearbox and hours run, since the simpler Ecoline specification was often used in hard everyday work. It is also worth checking the mounting of the front bonnet and the condition of the on-board electronics, since modern tractors in this class increasingly rely on electronic components that can be costly to replace.
Sources: SpecCodex-Register: Kennwerte des Modells Deutz-Fahr 5080 D Ecoline, Deutz-Fahr (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 82 hp (60 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 3,000 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,997 mmcorrect |
|---|---|
| Width | 1,982 mmcorrect |
| Height | 2,590 mmcorrect |
| Wheelbase | 2,100 mmcorrect |
| Unladen weight | 3,200 kgcorrect |
| Gross vehicle weight | 5,200 kgcorrect |
Drivetrain and chassis
| Gearbox | 10/10, 30/15correct |
|---|---|
| Rear tyres | 480/70R30correct |
| Top speed | 40 km/hcorrect |
Working data
| Lifting capacity | 2,650 kgcorrect |
|---|
Where this model stands
Power-to-weight ratio: 18.8 kW/t (60 kW / 3.2 t)
Power class: Universal (40–100 hp)
Stronger than 56% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Deutz-Fahr 5080 D Ecoline have?
The Deutz-Fahr 5080 D Ecoline delivers 82 hp.
How much does the Deutz-Fahr 5080 D Ecoline weigh?
The unladen weight is 3,200 kg.
What is the gross vehicle weight of the Deutz-Fahr 5080 D Ecoline?
5,200 kg.
What engine does the Deutz-Fahr 5080 D Ecoline have?
3 cylinders, 3,000 cm³ displacement, Diesel.
How fast does the Deutz-Fahr 5080 D Ecoline go?
Top speed is 40 km/h.
How much does the rear linkage of the Deutz-Fahr 5080 D Ecoline lift?
The rear linkage lifts 2,650 kg.
What are the dimensions of the Deutz-Fahr 5080 D Ecoline?
3,997 mm × 1,982 mm × 2,590 mm.
When was the Deutz-Fahr 5080 D Ecoline built?
Production years: 2014–2018.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
