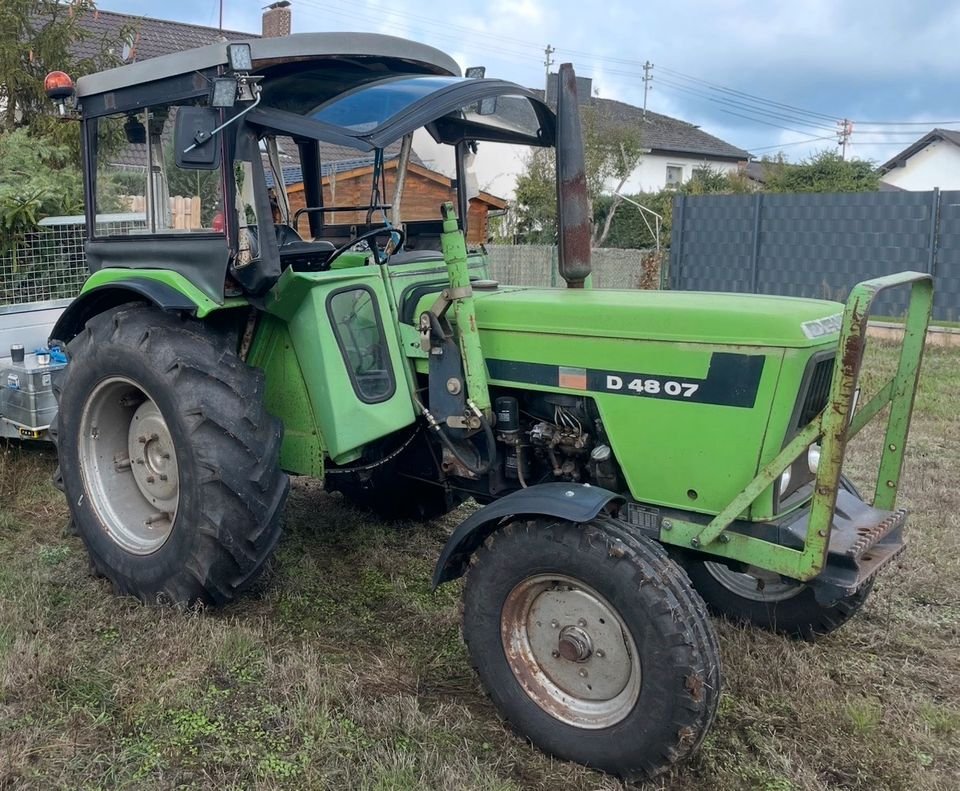

Deutz-Fahr D 4807 (C)
Built: 1980 (C: 1981)–1984 · Series: 07er-Reihe
More machines from model year 1980
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Deutz-Fahr 07 series – D 4807 and D 6907 A: 1970s/80s classics with 33 to 51 kW, three- and four-cylinder engines from 2,826 to 3,768 cc and 2,230 to 2,900 kg
The 07 series comes from Deutz-Fahr production of the 1970s and 1980s, from the years following the merger of Deutz's agricultural machinery division with Fahr AG. The D 4807 and D 6907 A designations follow the Deutz logic of the time: the digits after the D mark the approximate horsepower class, and the A stands for the four-wheel-drive version.
Read on 3 more paragraphs
The register lists 2 variants with 33 to 51 kW of power from three- and four-cylinder engines of 2,826 to 3,768 cc displacement at a rated speed of 2,300 rpm. Unladen weights fall between 2,230 and 2,900 kg, dimensions range from 3,570 to 3,664 mm in length, 1,660 to 2,060 mm in width and 2,360 to 2,454 mm in height, and torque stands at 153 Nm.
The 07 series was a widely used mid-class tractor of its day for arable and grassland farms across the German-speaking region, competing with the contemporary ranges from Fendt, Massey Ferguson and Ford. The four-wheel-drive variant marked with the A extended its use to more difficult ground conditions.
When buying used, check the engine and gearbox of these classics for oil leaks and clutch wear, and on four-wheel-drive models check the front axle for play in the joints. Rust on wings, bonnet and footplates is common on tractors of this age. Parts for the classic Deutz-Fahr models are found through specialist agricultural machinery dealers and vintage tractor clubs.
Sources: SpecCodex register, model data: Deutz-Fahr 07er-Reihe, Deutz-Fahr (SAME Deutz-Fahr Group, Hersteller)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 45 hp (33 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Torque | 153 Nmcorrect |
| Speed at max. torque | 1,600 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,826 cm³correct |
| Bore | 100 mmcorrect |
| Stroke | 120 mmcorrect |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 3,570 mmcorrect |
|---|---|
| Width | 1,660 mmcorrect |
| Height | 2,360 mmcorrect |
| Wheelbase | 1,995 mmcorrect |
| Ground clearance | 460 mmcorrect |
| Unladen weight | 2,230 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 8V/4Rcorrect |
| Front tyres | 7.50-16 ASF (A: 10.5-18 MPT)correct |
| Rear tyres | 14.9-28 AScorrect |
| Top speed | 25 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 14.8 kW/t (33 kW / 2.2 t)
Power class: Universal (40–100 hp)
Stronger than 29% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Deutz-Fahr D 4807 (C) have?
The Deutz-Fahr D 4807 (C) delivers 45 hp.
How much does the Deutz-Fahr D 4807 (C) weigh?
The unladen weight is 2,230 kg.
What engine does the Deutz-Fahr D 4807 (C) have?
3 cylinders, 2,826 cm³ displacement, Diesel.
How fast does the Deutz-Fahr D 4807 (C) go?
Top speed is 25 km/h.
What are the dimensions of the Deutz-Fahr D 4807 (C)?
3,570 mm × 1,660 mm × 2,360 mm.
When was the Deutz-Fahr D 4807 (C) built?
Production years: 1980 (C: 1981)–1984.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 23 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
