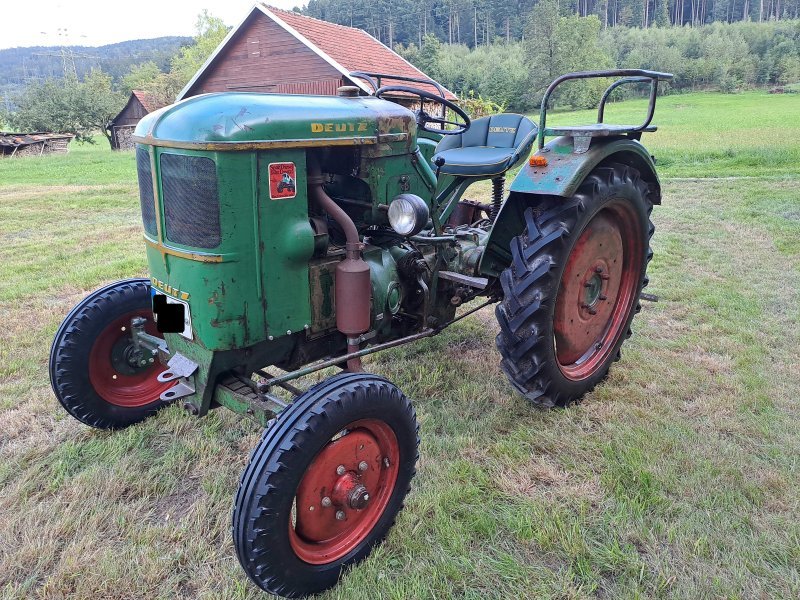

Deutz F1L514/2-N
Built: 1956–1957 · Series: F L 514
More machines from model year 1956
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Deutz F1L514/2-N (1956-1957) from Cologne: air-cooled single-cylinder diesel of 1,330 cc, 15 hp/11 kW at 1,650 rpm, 1,600 mm wide, weight 1,345 kg, top speed 20 km/h
Deutz is a company from Cologne and one of the best-known makers of air-cooled diesel engines in tractor building. The F1L514/2-N was built from 1956 to 1957. In the type designation, the 1 before the L indicates the number of cylinders and the L indicates air cooling, as confirmed by the cooling type given for this model.
Read on 3 more paragraphs
The air-cooled single-cylinder diesel engine has a displacement of 1,330 cc and produces 11 kW (15 hp) at 1,650 rpm. The F1L514/2-N is 2,510 mm long, 1,600 mm wide and 1,540 mm high, with a wheelbase of 1,585 mm and a weight of 1,345 kg. Its top speed is 20 km/h.
At just over 11 kW with a single-cylinder engine, the F1L514/2-N sits in the smallest power class of standard tractors, sufficient for smaller holdings, grassland and lighter PTO work. Its comparatively wide track of 1,600 mm points to a design for general field work rather than narrow row crops.
When buying a used air-cooled single-cylinder diesel, check the condition of the fan and cooling fins, since either can cause overheating if worn or clogged. Beyond that, check the injection pump and nozzle, the clutch and gearbox, the PTO clutch, and rust on the bonnet and wings. Parts for air-cooled single-cylinder engines of this era are supplied by the Deutz parts trade and specialist dealers in classic tractors.
Sources: SpecCodex-Register: Kennwerte des Modells Deutz F1L514/2-N, Deutz
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 15 hp (11 kW)correct |
| Rated speed | 1,650 rpmcorrect |
| Cylinders | 1correct |
| Displacement | 1,330 cm³correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 2,510 mmcorrect |
|---|---|
| Width | 1,600 mmcorrect |
| Height | 1,540 mmcorrect |
| Wheelbase | 1,585 mmcorrect |
| Ground clearance | 400 mmcorrect |
| Unladen weight | 1,345 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 5V/1R-Getriebecorrect |
| Front tyres | 5.00-16 ASFcorrect |
| Rear tyres | 10-28 AScorrect |
| Top speed | 20 km/hcorrect |
Working data
| Fuel tank capacity | 28 lcorrect |
|---|
Origin and approval
| Construction | frameless unit constructioncorrect |
|---|---|
| Units built | 1,529correct |
Other data
| Linkage category | Cat Icorrect |
|---|
Where this model stands
Power-to-weight ratio: 8.2 kW/t (11 kW / 1.3 t)
Power class: Compact (< 40 hp)
Stronger than 3% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Deutz F1L514/2-N have?
The Deutz F1L514/2-N delivers 15 hp.
How much does the Deutz F1L514/2-N weigh?
The unladen weight is 1,345 kg.
What engine does the Deutz F1L514/2-N have?
1 cylinders, 1,330 cm³ displacement, Diesel.
How fast does the Deutz F1L514/2-N go?
Top speed is 20 km/h.
What are the dimensions of the Deutz F1L514/2-N?
2,510 mm × 1,600 mm × 1,540 mm.
When was the Deutz F1L514/2-N built?
Production years: 1956–1957.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
