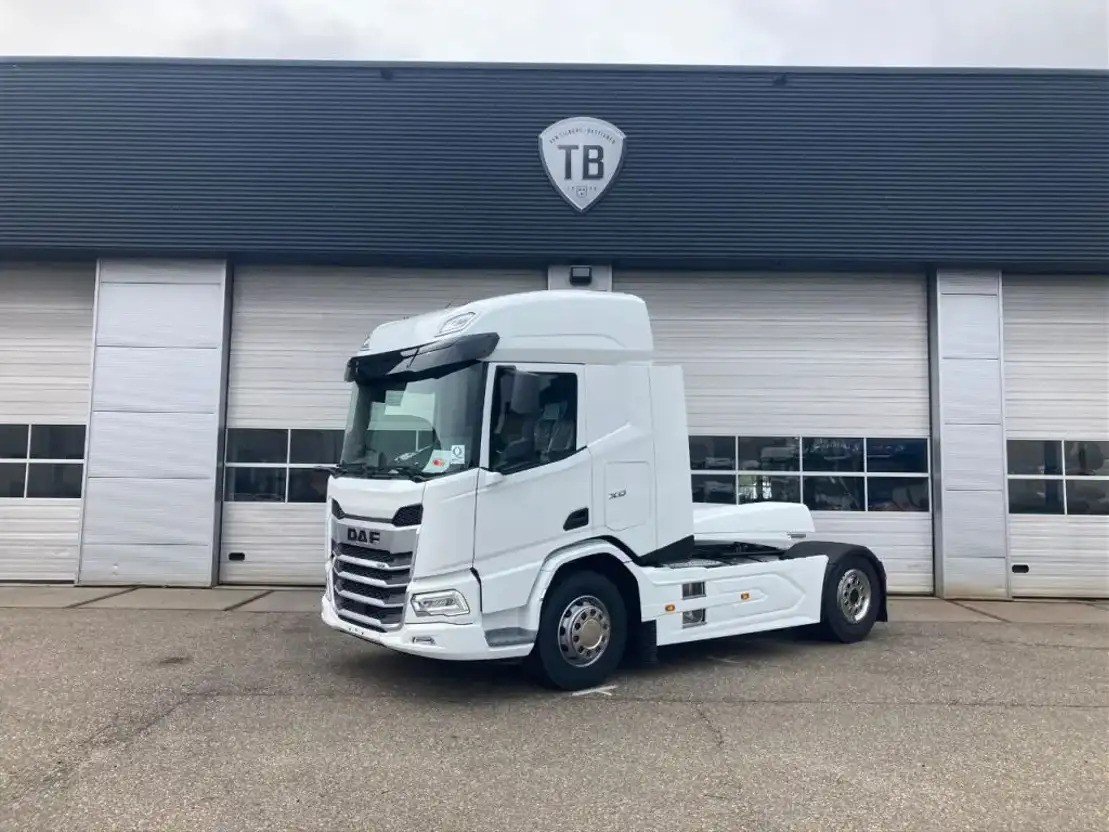

DAF XD 410 FTN
Built: 2024 · Series: XD
More machines from model year 2024
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
DAF XD – distribution and construction chassis between the LF and CF: six-cylinder engines from 189 to 330 kW, 6.7 to 12.9-litre displacement, up to 49 t gross weight, also electric
DAF introduced the XD in 2022 to close the gap between the lighter LF and the heavier CF; the range is built in Westerlo, Belgium, by DAF Trucks, a subsidiary of the American Paccar group. The three-digit types such as XD 230, XD 300 and XD 450 roughly indicate engine output in horsepower, the FA suffix denotes a chassis-cab with a single cab, FT the short bonneted cab, and codes such as FAG, FAN or FAS mark wheelbase and axle-configuration variants; since launch DAF has also offered the XD with a fully electric drivetrain.
Read on 3 more paragraphs
The register lists 60 versions with 189 to 330 kW from six-cylinder engines of 6,690 to 12,902 cm³, unladen weights of 7,245 to 27,086 kg, gross vehicle weights of 19,000 to 49,000 kg, lengths of 6,080 to 12,310 mm and widths of 2,530 to 2,600 mm.
The XD serves the European segment between distribution traffic and medium-heavy construction and municipal use, often fitted with tipper, crane or refuse-compactor bodies; its main rivals are the Mercedes-Benz Arocs/Atego, Volvo FE/FM, Scania P/G series and MAN TGM/TGS, against which DAF positions itself mainly through the Paccar MX engine family and low running costs.
When buying used, check the AdBlue system and particulate filter on the Paccar MX engines, frame and body mounting after years of construction or municipal duty, wear on the air suspension, and battery condition and charge cycles on the electric versions; parts run through the DAF dealer network.
Sources: SpecCodex register, model data: DAF XD, DAF Trucks
Technical data
Engine
| Cylinders | 6correct |
|---|---|
| Displacement | 10,837 cm³correct |
Dimensions and weights
| Length | 7,580 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 4,800 mmcorrect |
| Unladen weight | 18,716 kgcorrect |
| Gross vehicle weight | 29,000 kgcorrect |
Drivetrain and chassis
| Wheels | 8correct |
|---|---|
| Top speed | 90 km/hcorrect |
Frequently asked questions
How much does the DAF XD 410 FTN weigh?
The unladen weight is 18,716 kg.
What is the gross vehicle weight of the DAF XD 410 FTN?
29,000 kg.
What engine does the DAF XD 410 FTN have?
6 cylinders, 10,837 cm³ displacement.
How fast does the DAF XD 410 FTN go?
Top speed is 90 km/h.
What are the dimensions of the DAF XD 410 FTN?
7,580 mm × 2,550 mm.
When was the DAF XD 410 FTN built?
Production years: 2024.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
