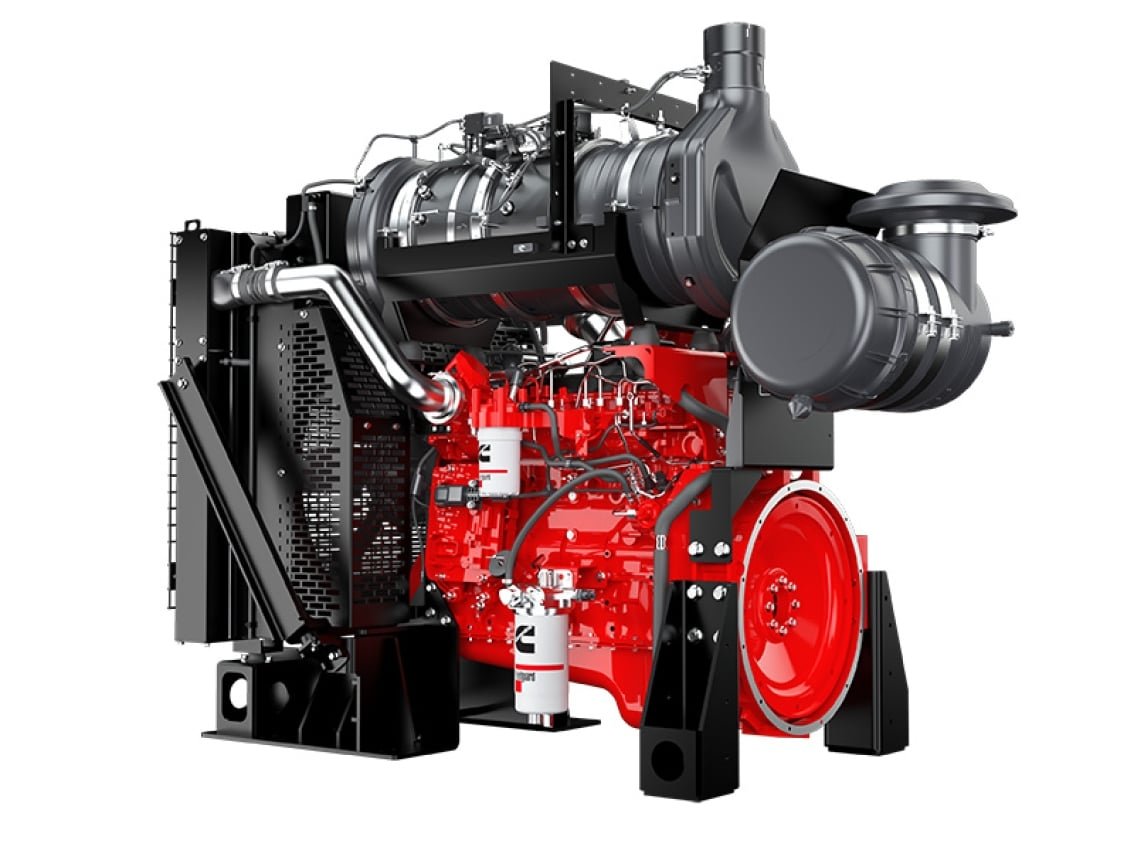

Cummins PX-7 260H
Built: 2016 · Series: PX-7
More machines from model year 2016
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Paccar PX-7 – the Cummins B6.7 under Peterbilt and Kenworth names: 6.7 litres, 200 to 360 hp, certificates since 2014
The PX-7 is not a separate engine but the Cummins B series in Paccar's colours: Peterbilt and Kenworth sell the 6.7-litre six-cylinder in their Class 5 to 7 medium-duty trucks under the name PX-7, just as they list the 8.9-litre as the PX-9. The arrangement dates from the time when Paccar had no medium-duty engine of its own in North America; the European Paccar MX engine from DAF covers only the heavy classes. The EPA certificates are therefore held by Cummins – in the register the PX-7 versions are line-for-line twins of the B6.7.
Read on 3 more paragraphs
The number in the name is the output in hp; suffixes such as H, EV or ST denote torque curves and calibrations. The register lists 22 versions with 195 to 360 hp at 2,400 to 2,600 rpm and 520 to 800 lb-ft (705 to 1,085 Nm) of torque between 1,600 and 1,800 rpm; certifications run from model year 2014 to 2026 – the three earliest entries with electronic direct injection and service class MHDD still belong to the previous ISB6.7 generation, the rest to the B6.7 generation from 2017 with the 'Vocational' application.
For fleet operators the kinship means parts, diagnostics and software are Cummins standard, any Cummins workshop can service the engine, and calibrations can be swapped within the certified power ratings.
On used engines the same checkpoints apply as for the B6.7: aftertreatment with particulate filter and SCR, EGR valve and cooler, injectors and the service history with the prescribed oil grades.
Sources: SpecCodex register, model data: Paccar PX-7 (EPA-Zertifizierungsdaten, Zertifikatsinhaber Cummins), Paccar Powertrain (manufacturer), EPA-Zertifizierungsdaten Motoren
Technical data
Engine
| Engine code | 4607; FR94827correct |
|---|---|
| Engine family | GCEXH0408BAPcorrect |
| Engine families | GCEXH0408BAPcorrect |
| Fuel | dieselcorrect |
| Rated output | 186.4 kW (= 250 bhp)correct |
| Rated speed | 2,600 rpmcorrect |
| Maximum torque | 660 ft·lbfcorrect |
| Speed at max. torque | 1,600 rpmcorrect |
| Operating cycle | dieselcorrect |
| Injection | electronic direct injectioncorrect |
| Aspiration | single-stage turbocorrect |
Origin and approval
| Built from | 2016correct |
|---|---|
| Built to | 2016correct |
| Model year from | 2016correct |
| Model year to | 2016correct |
Other data
| Application | MHDDcorrect |
|---|
Frequently asked questions
How much power does the Cummins PX-7 260H have?
The Cummins PX-7 260H delivers 186 kW.
When was the Cummins PX-7 260H built?
Production years: 2016.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 19 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
