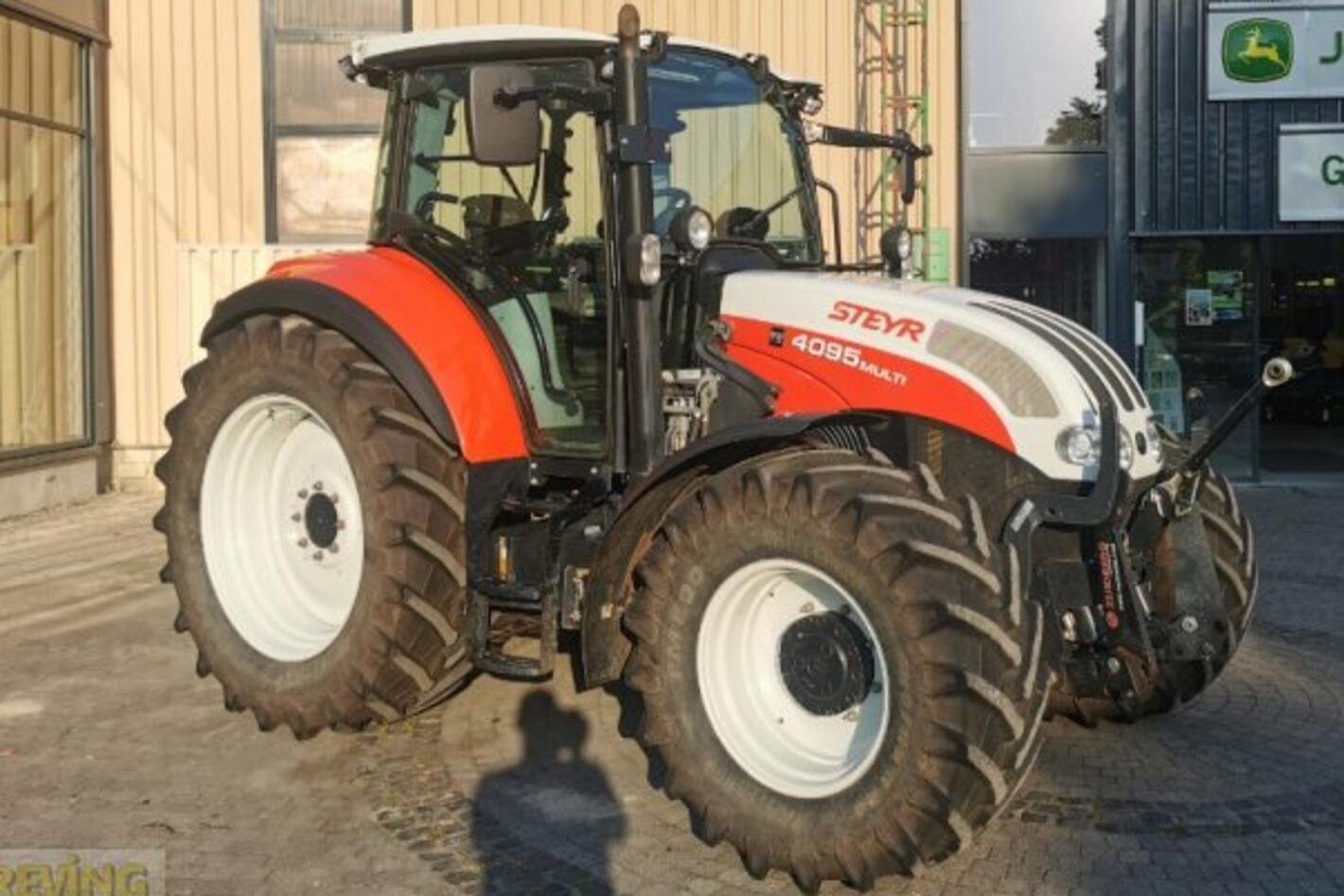

Cnh Steyr 4095 Multi

Built: 2013 · Series: MULTI

More machines from model year 2013

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 4095 Multi from Cnh Steyr is part of the MULTI series. Production: 2013. The engine delivers 99 hp (73 kW), has 4 cylinders, with a displacement of 3,400 cm³. Rated speed is 2,300 rpm. The machine is 4,166 mm long, 2,100 mm wide and 1,915 mm high. The unladen weight is 4,500 kg. The wheelbase measures 2,420 mm. Ground clearance is 459 mm. Top speed is 40 km/h. The engine is water-cooled. Tyres: front 380/70R24 oder 480/65R24, rear 480/70R34 oder 540/65/R38. The fuel is diesel. Rated output across the Cnh Steyr range ranges from 65 to 240 hp; the 4095 Multi sits in the lower part of that range with 99 hp. Its immediate neighbours are the 9100 M below it with 97 hp and the 9105 MT above it with 101 hp. Unladen weight across the Cnh Steyr range ranges from 3,000 to 8,350 kg; here the 4095 Multi sits in the lower part of that range with 4,500 kg. 28 Cnh Steyr models across 14 series are on record.

Steyr 4095 Multi (2013): low-built four-cylinder standard tractor with 3,400 cm³, 73 kW, a 1,915 mm overall height and a 40 km/h top speed

The Multi range rounds out Steyr's line-up, built in St. Valentin, Austria, within the CNH group, with versatile standard tractors. The 4095 Multi was built in 2013 as a reduced-height version of this concept.

Read on 3 more paragraphs

The Steyr 4095 Multi carries a water-cooled four-cylinder diesel engine with 3,400 cm³ of displacement, producing 99 hp, or 73 kW, at 2,300 rpm. At a weight from 4,500 kg, 4,166 mm long, 1,915 mm high, 2,100 mm wide and with a 2,420 mm wheelbase, the machine reaches a top speed of 40 km/h.

At just 1,915 mm tall, the 4095 Multi sits lower than many standard tractors of comparable engine output, making it suitable for work under low barn roofs, in greenhouses or in orchards with limited clearance. Its 73 kW from 3,400 cm³ of displacement is enough for field work with medium-weight implements and for haulage runs on the farm. The low profile does not come at the cost of the 2,420 mm wheelbase, which still gives the machine stability in the field.

When buying a low-built tractor used, the condition of the cab mounting and sealing matters, as low-profile builds are often fitted with adapted cabs. Also worth checking are the tightness of the hydraulic connections, the condition of the clutch, and corrosion damage to the frame and mudguards, common on machines working continuously under barn roofs or in high-humidity settings.

Sources: SpecCodex-Register: Kennwerte des Modells Steyr 4095 Multi, Steyr (manufacturer)

Technical data

Engine

Fueldieselcorrect
Power99 hp (73 kW)correct
Rated speed2,300 rpmcorrect
Cylinders4correct
Displacement3,400 cm³correct
Coolingwater-cooledcorrect

Dimensions and weights

Length4,166 mmcorrect
Width2,100 mmcorrect
Height1,915 mmcorrect
Wheelbase2,420 mmcorrect
Ground clearance459 mmcorrect
Unladen weight4,500 kgcorrect

Drivetrain and chassis

Drivefour-wheel drivecorrect
Gearbox32V/32R 4 Stufen-Lastschaltgetriebecorrect
Front tyres380/70R24 oder 480/65R24correct
Rear tyres480/70R34 oder 540/65/R38correct
Top speed40 km/hcorrect

Where this model stands

Power-to-weight ratio: 16.2 kW/t (73 kW / 4.5 t)

Power class: Universal (40–100 hp)

Stronger than 65% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Cnh Steyr 4095 Multi have?

The Cnh Steyr 4095 Multi delivers 99 hp.

How much does the Cnh Steyr 4095 Multi weigh?

The unladen weight is 4,500 kg.

What engine does the Cnh Steyr 4095 Multi have?

4 cylinders, 3,400 cm³ displacement, Diesel.

How fast does the Cnh Steyr 4095 Multi go?

Top speed is 40 km/h.

What are the dimensions of the Cnh Steyr 4095 Multi?

4,166 mm × 2,100 mm × 1,915 mm.

When was the Cnh Steyr 4095 Multi built?

Production years: 2013.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
  • Shift the gearbox cold and warm — jumps only show up at temperature.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
