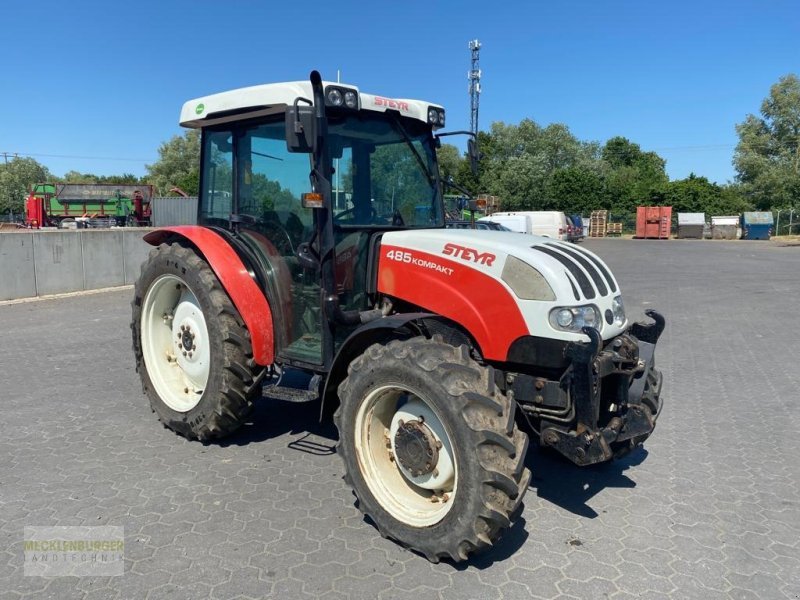

Cnh Steyr 485 Kompakt
Built: 2005–2007 · Series: Kompakt
More machines from model year 2005
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
CNH Steyr Kompakt – the small four-cylinder range after the Case takeover: 4095 Kompakt and 485 Kompakt, 60 to 73 kW, 3,400 to 4,500 cc, also approved for biodiesel
Since Case's takeover in 1996, Steyr has built tractors in St. Valentin as part of CNH and shares technical platforms with Case IH; the Kompakt range bundles smaller four-cylinder models such as the 4095 Kompakt and 485 Kompakt for operations too small for the larger Steyr ranges. The type number roughly reflects the power class. Like Steyr's other ranges, the Kompakt line is built in St. Valentin for the European market and benefits from shared development work within the CNH group.
Read on 3 more paragraphs
The register lists 2 variants at 60 to 73 kW from four-cylinder diesels of 3,400 to 4,500 cc, kerb weights of 3,050 to 3,600 kg, a lift capacity of 4,400 kg, lengths of 3,568 to 4,241 mm, a width of 2,300 mm, heights of 2,400 to 2,495 mm and a rated 2,300 rpm; one model is also approved for biodiesel.
In this power class Steyr competes with its own sister brands Case IH and New Holland as well as with Fendt, John Deere and Deutz-Fahr; the Kompakt range targets mixed and smaller farms in the European market.
Buying one of these more modern four-cylinder tractors, the engine and transmission electronics matter, along with the condition of the hydraulic pump and pto, the tightness of the common-rail or injection system, and rust on the frame and mounting points; parts run through the CNH dealer network for Steyr and Case IH, and with heavy front-loader use the mounting console and lift arms are also worth a close look.
Sources: SpecCodex register, model data: CNH Steyr Kompakt, Steyr (manufacturer)
Technical data
Engine
| Fuel | Diesel / Biodieselcorrect |
|---|---|
| Power | 82 hp (60 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,500 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,568 mmcorrect |
|---|---|
| Width | 2,300 mmcorrect |
| Height | 2,400 mmcorrect |
| Wheelbase | 2,185 mmcorrect |
| Unladen weight | 3,050 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 16V / 16Rcorrect |
| Front tyres | 14, 9 LR 20correct |
| Rear tyres | 16, 9 R 30correct |
| Top speed | 40 km/hcorrect |
Where this model stands
Power-to-weight ratio: 19.7 kW/t (60 kW / 3 t)
Power class: Universal (40–100 hp)
Stronger than 56% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Cnh Steyr 485 Kompakt have?
The Cnh Steyr 485 Kompakt delivers 82 hp.
How much does the Cnh Steyr 485 Kompakt weigh?
The unladen weight is 3,050 kg.
What engine does the Cnh Steyr 485 Kompakt have?
4 cylinders, 4,500 cm³ displacement, Diesel / Biodiesel.
How fast does the Cnh Steyr 485 Kompakt go?
Top speed is 40 km/h.
What are the dimensions of the Cnh Steyr 485 Kompakt?
3,568 mm × 2,300 mm × 2,400 mm.
When was the Cnh Steyr 485 Kompakt built?
Production years: 2005–2007.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
