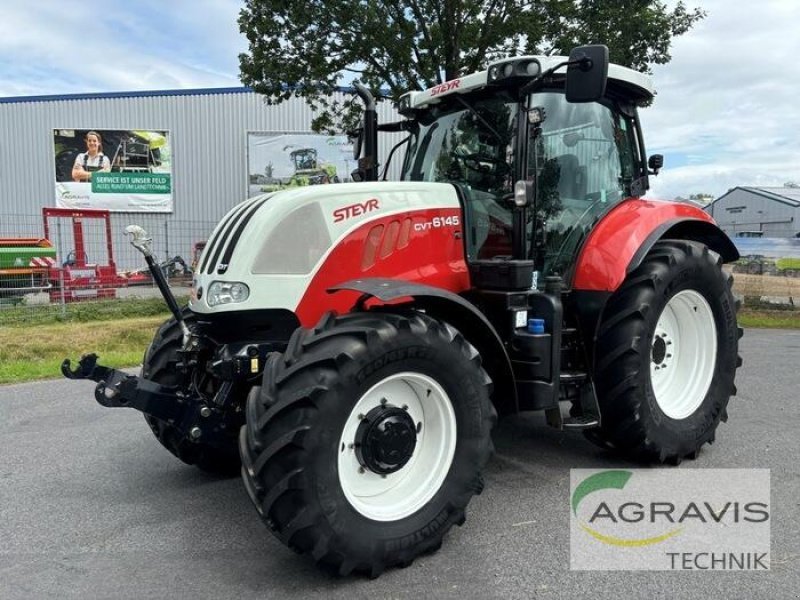

Cnh Steyr CVT 6145

Built: 2003–2006 · Series: CVT - Zweite Reihe

More machines from model year 2003

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Cnh Steyr CVT 6145 belongs to the CVT - Zweite Reihe series. Production: 2003–2006. The engine delivers 147 hp (108 kW), has 6 cylinders, with a displacement of 6,597 cm³. Rated speed is 2,100 rpm. The machine is 4,740 mm long, 2,490 mm wide and 3,000 mm high. The unladen weight is 6,390 kg. The wheelbase measures 2,806 mm. Top speed is 40 km/h. Transmission: continuously variable. The engine is water-cooled. Tyres: front 540 / 65 R 28, rear 650 / 65 R 38. The fuel is Diesel / Rapsdiesel. Rated output across the Cnh Steyr range ranges from 65 to 240 hp; the CVT 6145 sits in the middle of that range with 147 hp. Its immediate neighbours are the CVT 6140 below it with 141 hp and the CVT 6150 above it with 150 hp. Rated output across the Cnh Steyr range ranges from 48 to 176 kW; here the CVT 6145 sits in the middle of that range with 108 kW. 28 Cnh Steyr models across 14 series are on record.

CNH Steyr CVT – the entry six-cylinder step with continuously variable transmission: CVT 6135 and CVT 6145, 101 to 108 kW, 6,597 cc, kerb weight 6,390 kg, rapeseed-diesel approved

Steyr was among the first tractor makers to offer a continuously variable transmission as standard, developed jointly with ZF and marketed in-house as S-Matic; the CVT range with the six-cylinder diesel bundles several power steps on this basis, here with the CVT 6135 and CVT 6145 at the lower end of this six-cylinder line-up. The transmission's control range fully replaces the classic stepped gearbox and lets travel speed be adjusted independently of engine speed.

Read on 3 more paragraphs

The register lists 2 variants at 101 to 108 kW from a six-cylinder diesel of 6,597 cc, a kerb weight of 6,390 kg, a length of 4,740 mm, a width of 2,490 mm, a height of 3,000 mm and a rated 2,100 rpm; both models are approved for rapeseed diesel.

With a CVT gearbox and around 135 to 145 hp, these models target larger arable farms and contractors who switch frequently between field work and road transport; competition comes from the CVT models of sister brand Case IH as well as from Fendt Vario and John Deere AutoPowr.

Buying a CVT tractor, the condition and oil-change intervals of the continuously variable transmission matter above all, along with hydraulic tightness, the state of the six-cylinder diesel including the turbocharger, and the electronics and sensors of the transmission control; servicing and parts run through the CNH dealer network for Steyr and Case IH; a test drive across the full control range shows whether the transmission shifts smoothly and without jerking.

Sources: SpecCodex register, model data: CNH Steyr CVT zweite Reihe, Steyr (manufacturer)

Technical data

Engine

Fuel	Diesel / Rapsdieselcorrect
Power	147 hp (108 kW)correct
Rated speed	2,100 rpmcorrect
Cylinders	6correct
Displacement	6,597 cm³correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	4,740 mmcorrect
Width	2,490 mmcorrect
Height	3,000 mmcorrect
Wheelbase	2,806 mmcorrect
Unladen weight	6,390 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	continuously variablecorrect
Front tyres	540 / 65 R 28correct
Rear tyres	650 / 65 R 38correct
Top speed	40 km/hcorrect

Where this model stands

Power-to-weight ratio: 16.9 kW/t (108 kW / 6.4 t)

Power class: Large (100–180 hp)

Stronger than 82% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Cnh Steyr CVT 6145 have?

The Cnh Steyr CVT 6145 delivers 147 hp.

How much does the Cnh Steyr CVT 6145 weigh?

The unladen weight is 6,390 kg.

What engine does the Cnh Steyr CVT 6145 have?

6 cylinders, 6,597 cm³ displacement, Diesel / Rapsdiesel.

How fast does the Cnh Steyr CVT 6145 go?

Top speed is 40 km/h.

What are the dimensions of the Cnh Steyr CVT 6145?

4,740 mm × 2,490 mm × 3,000 mm.

When was the Cnh Steyr CVT 6145 built?

Production years: 2003–2006.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →

Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 17 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →

Other models in this series

CVT 6135
