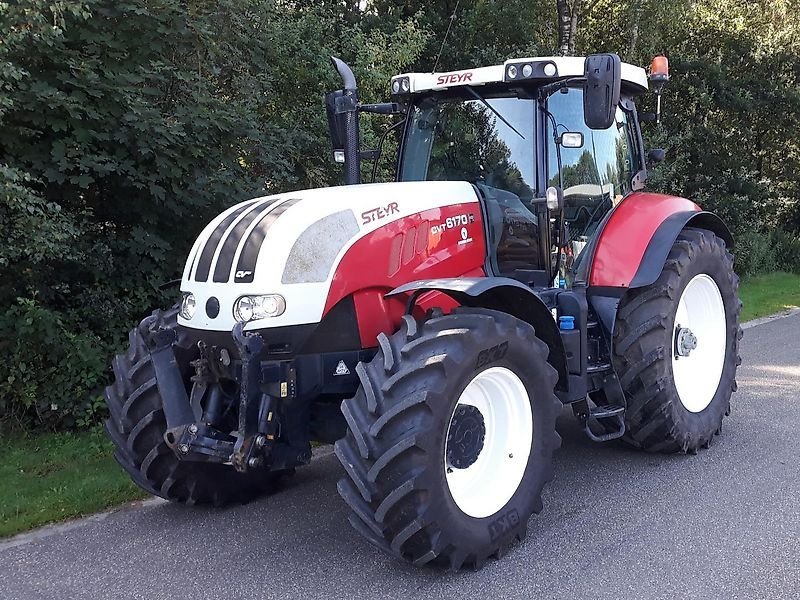

Cnh Steyr CVT 6170
Built: 2003–2006 · Series: CVT - Zweite Generation
More machines from model year 2003
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
CNH Steyr CVT – the powerful six-cylinder step with continuously variable transmission: CVT 6170 and CVT 6190, 126 to 141 kW, 6,597 cc, kerb weight 6,770 kg, rapeseed-diesel approved
At the top of Steyr's CVT range with the six-cylinder diesel and continuously variable transmission sit the CVT 6170 and CVT 6190; compared with the smaller CVT models, the same 6.6-litre block delivers noticeably more power here through boost and tuning, without any change in displacement or cylinder count. The higher torque places correspondingly higher demands on the gearbox, cooling and trailer brakes than on the less powerful CVT models.
Read on 3 more paragraphs
The register lists 2 variants at 126 to 141 kW from a six-cylinder diesel of 6,597 cc, a kerb weight of 6,770 kg, lengths of 4,766 to 4,776 mm, a width of 2,490 mm, a height of 3,000 mm and a rated 2,100 rpm; both models are approved for rapeseed diesel.
At close to 170 to 190 hp, these models target large arable farms, contractors and work with wide implements and heavy trailers, where CVT gearboxes show their strength under constantly changing draft loads; here they compete with the large CVT and Vario models from Case IH, Fendt and John Deere.
Buying one of these more powerful CVT models, the turbocharger and charge-air cooling matter especially, along with the condition of the transmission electronics and the CVT's cooling under sustained load, hydraulic output for heavy implements, and tyre and axle condition given the higher towed weights; servicing runs through the CNH network for Steyr and Case IH; with trailer work, the brake system and hitch are also worth checking.
Sources: SpecCodex register, model data: CNH Steyr CVT zweite Generation, Steyr (manufacturer)
Technical data
Engine
| Fuel | Diesel / Rapsdieselcorrect |
|---|---|
| Power | 171 hp (126 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,597 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,766 mmcorrect |
|---|---|
| Width | 2,490 mmcorrect |
| Height | 3,000 mmcorrect |
| Wheelbase | 2,832 mmcorrect |
| Unladen weight | 6,770 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | continuously variablecorrect |
| Front tyres | 540 / 65 R 30correct |
| Rear tyres | 650 / 65 R 42correct |
| Top speed | 40 km/hcorrect |
Where this model stands
Power-to-weight ratio: 18.6 kW/t (126 kW / 6.8 t)
Power class: Large (100–180 hp)
Stronger than 88% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Cnh Steyr CVT 6170 have?
The Cnh Steyr CVT 6170 delivers 171 hp.
How much does the Cnh Steyr CVT 6170 weigh?
The unladen weight is 6,770 kg.
What engine does the Cnh Steyr CVT 6170 have?
6 cylinders, 6,597 cm³ displacement, Diesel / Rapsdiesel.
How fast does the Cnh Steyr CVT 6170 go?
Top speed is 40 km/h.
What are the dimensions of the Cnh Steyr CVT 6170?
4,766 mm × 2,490 mm × 3,000 mm.
When was the Cnh Steyr CVT 6170 built?
Production years: 2003–2006.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
