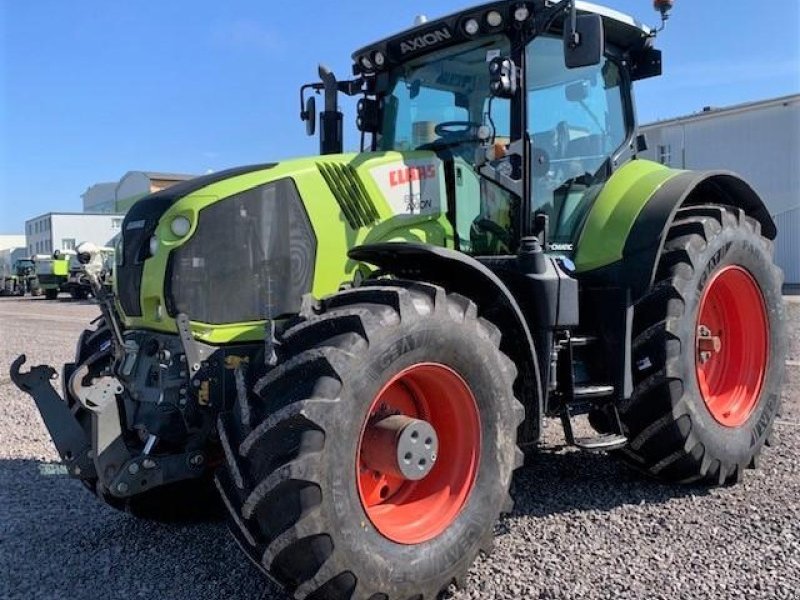

CLAAS AXION 870 – specifications
Built: 2020-2026 · Series: AXION
The CLAAS AXION 870 is a model in the AXION series. Production: 2020-2026. The engine delivers 221 kW, has 6 cylinders, with a displacement of 6,728 cm³. The machine is 5,432 mm long and 3,000 mm wide. The unladen weight is 9,750 kg. The gross vehicle weight is 15,000 kg. The AXION series covers 22 models. Rated output within it ranges from 122 to 230 kW; the AXION 870 sits at the top of that range with 221 kW. Its immediate neighbours are the Axion 880 below it with 197.6 kW and the AXION 8 above it with 230 kW. Unladen weight within it ranges from 8,869.5 to 10,119.6 kg; here the AXION 870 sits in the upper part of that range with 9,750 kg. 856 CLAAS models across 54 series are on record.
Data for the version built 2020-2026 · Data origin: Official register · sources
More machines from model year 2020
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
CLAAS Axion – High-Power Tractor Since 2003: Concept, Power Class, CMATIC Option, 122 to 230 kW and Operating Weight from 8,869.5 to 10,119.6 kg
CLAAS launched the Axion in 2003 as a new large-tractor series, built at its own plant in Le Mans acquired along with Renault Agriculture. According to the register, output of the recorded models ranges from 122 to 230 kW, with models rated in horsepower spanning 163 to 205 hp, using six-cylinder engines with displacement from 6,700.7 to 6,789.2 cm³.
Read on 3 more paragraphs
Recorded operating weight runs from 8,869.5 to 10,119.6 kg, and top speed of the listed models is 50.1 km/h. Besides conventional powershift gearboxes, CLAAS also offers stepless CMATIC transmission within the Axion family, identifiable from the corresponding model designations in the register.
Within the CLAAS range, the Axion sits above the Arion series and below the Xerion as a classic large tractor for arable farms with heavy draft requirements. Buyers of a used Axion should check gearbox variant, hydraulic equipment and emissions stage, since the range changed considerably across model years.
With rated outputs from 122 to 230 kW, the Axion falls within ISO 730 Category III for the rear three-point hitch, with a standard dual-speed power take-off at 540 and 1,000 revolutions per minute for heavy implements. The six-cylinder diesel engines are turbocharged and charge-air cooled, as is common throughout tractors of this power class.
Sources: SpecCodex register, model data: CLAAS Axion, CLAAS
Technical data
Engine
| Power | 221 kWcorrect |
|---|---|
| Cylinders | 6correct |
| Displacement | 6,728 cm³correct |
Dimensions and weights
| Length | 5,432 mmcorrect |
|---|---|
| Width | 3,000 mmcorrect |
| Unladen weight | 9,750 kgcorrect |
| Gross vehicle weight | 15,000 kgcorrect |
Origin and approval
| Version | AXION 870 C-MATICcorrect |
|---|
Frequently asked questions
Area: Machines
Where this model stands
Power-to-weight ratio: 22.7 kW/t (221 kW / 9.8 t)
Power class: Heavy (> 180 hp)
Stronger than 97% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 4 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Are you the manufacturer or a dealer of this machine? Check the data and add missing figures — we mark your correction as manufacturer or dealer information.
Check and complete the data →Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
