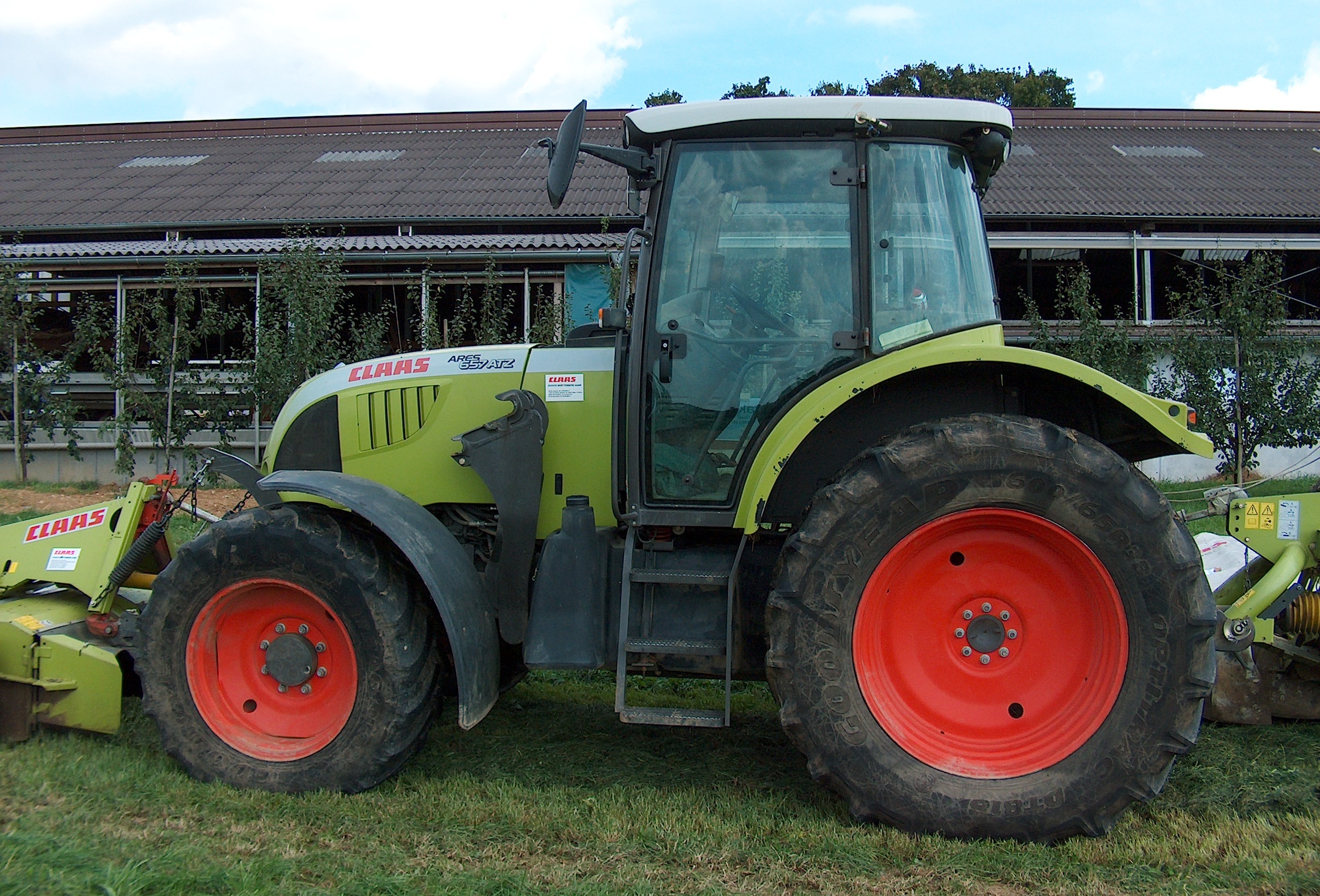

CLAAS Ares
Series: Ares
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
CLAAS Ares – Tractor Series With Renault Roots
The Ares series was originally developed by Renault Agriculture and continued under the CLAAS name after CLAAS took over the Le Mans plant in 2003; the register lists models up to model year 2007. Output of the recorded models ranges from 66 to 143 kW, with models rated in horsepower spanning 90 to 194 hp, using four- and six-cylinder engines with displacement from 4,525 to 6,788 cm³.
Read on 2 more paragraphs
Recorded operating weight runs from 5,010 to 6,450 kg, wheelbase from 2,564 to 2,876 mm, and top speed of the listed models spans 40 to 40.1 km/h. The Ares family also included ATZ-badged versions with a narrower track width or adapted chassis for specialised applications.
Within the CLAAS line-up, the Ares sat between the smaller Celtis and the larger Axion series, aimed at arable farms with medium to higher power requirements. When buying a used Ares, the exact variant matters, as chassis, cab and hydraulic equipment differ between versions.
Sources: Kennwerte der Modelle CLAAS Ares
Technical data
Engine
| Engine | DPS (Diesel, 6788 cm³80, 9 – 103 kW)correct |
|---|
Dimensions and weights
| Wheelbase | 2,820correct |
|---|
Drivetrain and chassis
| Top speed | 40correct |
|---|
Frequently asked questions
How fast does the CLAAS Ares go?
Top speed is 40 km/h.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 3 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
