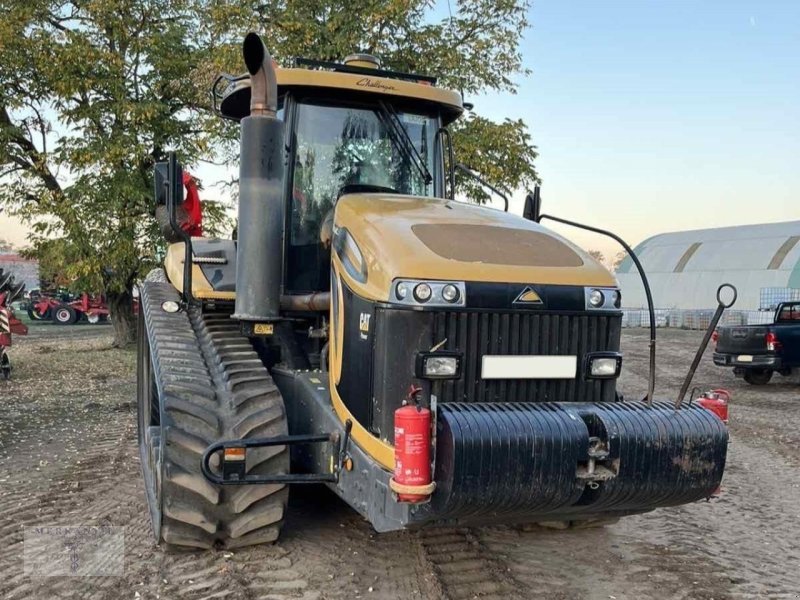

Challenger WT540
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Challenger WT540 is a tractor from Challenger. The six-cylinder engine produces 109 kW. Rated speed is 2,400 rpm.
Propulsion comes from MFWD.
It is powered by diesel. Within the range, rated power spans from 16.8 to 470 kW; with 109 kW, the WT540 sits in the mid-field. Directly alongside are the MT565 with 108 kW below and the MT635 with 120 kW above.
Technical data
Engine
| Engine make | Challenger/SISUcorrect |
|---|---|
| Engine model | 620DSR Turbocorrect |
| Fuel | dieselcorrect |
| Power | 146 hp (109 kW)correct |
| Rated speed | 2,400 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6.6 lcorrect |
| Naturally aspirated | naturally aspiratedcorrect |
Dimensions and weights
| Length | 5,040 mmcorrect |
|---|---|
| Width | 2,628 mmcorrect |
| Height | 2,930 mmcorrect |
| Wheelbase | 2,763 mmcorrect |
| Turning circle | 5,740 mmcorrect |
| Unladen weight | 7,500 kgcorrect |
Drivetrain and chassis
| Drive | selectable four-wheel drivecorrect |
|---|---|
| Forward gears | 12correct |
| Reverse gears | 4correct |
| Clutch | dry diskcorrect |
Working data
| Lifting capacity | 7,700 kgcorrect |
|---|---|
| Fuel tank capacity | 160 lcorrect |
| PTO speed | 540/1000correct |
| Linkage category | Cat IIcorrect |
Origin and approval
| Plant | Brazilcorrect |
|---|
Frequently asked questions
How much power does the Challenger WT540 have?
The Challenger WT540 delivers 146 hp.
What engine does the Challenger WT540 have?
6 cylinders, diesel.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
