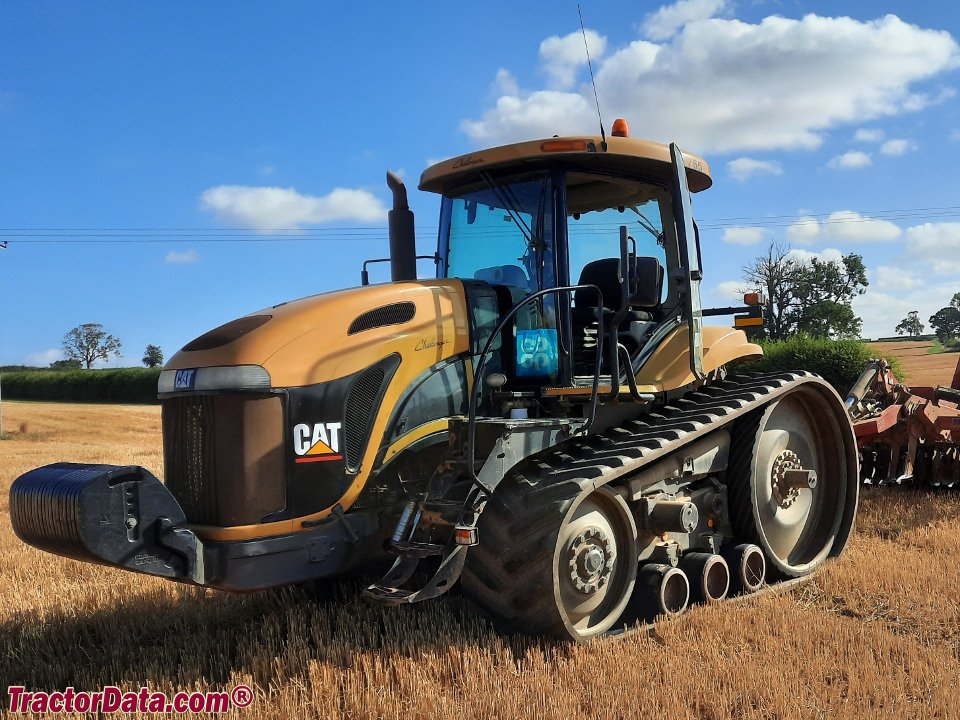

Challenger MT745
Built: 2001-2006 · Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Built in 2001-2006, the Challenger MT745 is a tractor from Challenger. The six-cylinder engine produces 153 kW.
Gearbox: Powershift; drive type: track.
It is powered by diesel. The predecessor was the Caterpillar Challenger MT745, the successor the Challenger MT745B. Within the range, rated power spans from 16.8 to 470 kW; with 153 kW, the MT745 sits in the mid-field. Directly alongside are the MT585D with 134 kW below and the MT655C with 168 kW above.
Technical data
Engine
| Engine make | Caterpillarcorrect |
|---|---|
| Engine model | C-9correct |
| Fuel | dieselcorrect |
| Power | 205 hp (153 kW)correct |
| Cylinders | 6correct |
| Displacement | 538 cu incorrect |
| Naturally aspirated | naturally aspiratedcorrect |
Dimensions and weights
| Turning circle | spot turncorrect |
|---|
Drivetrain and chassis
| Drive | tracked undercarriagecorrect |
|---|---|
| Gearbox | powershift transmissioncorrect |
| Gearbox make | Caterpillarcorrect |
| Forward gears | 16correct |
| Reverse gears | 4correct |
| Rear tyres | Trackscorrect |
Working data
| Lifting capacity | 16,000 lbs (7257,5 kg)correct |
|---|---|
| PTO speed | 1,000correct |
Origin and approval
| Plant | Jackson, Minnesota, USAcorrect |
|---|---|
| Predecessor | Caterpillar Challenger MT745correct |
| Successor | Challenger MT745Bcorrect |
Frequently asked questions
How much power does the Challenger MT745 have?
The Challenger MT745 delivers 205 hp.
What engine does the Challenger MT745 have?
6 cylinders, diesel.
When was the Challenger MT745 built?
Production years: 2001-2006.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 23 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
