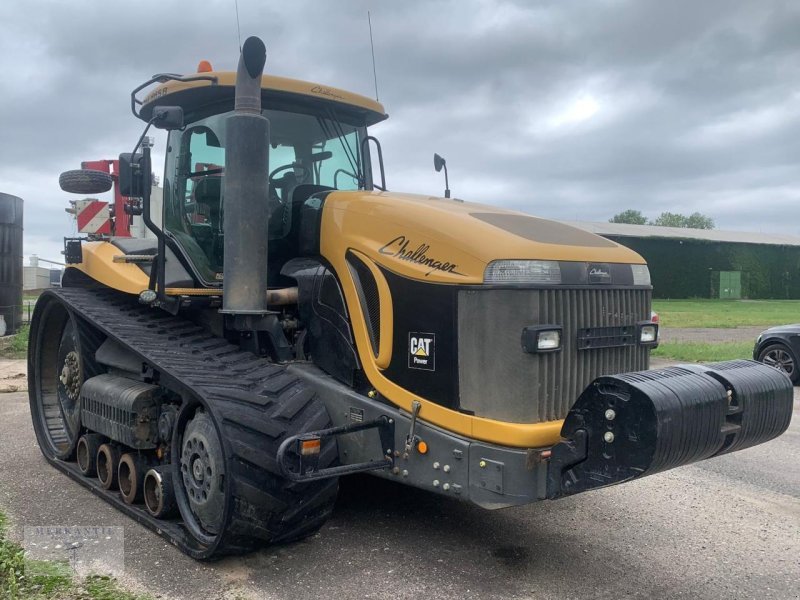

Challenger MT865B 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Challenger MT865B is a tractor from the Challenger 4WD Tractor series. Power comes from a six-cylinder engine; from 18.1 litres it draws 517 hp (380.3 kW). Rated speed is 2,100 rpm.
At 40 km/h, that is as fast as it goes. Empty, it weighs 19,142 kg.
Within the range, rated power spans from 22.8 to 593 hp; with 517 hp, the MT865B sits at the top. Directly alongside are the MT855B with 466 hp below and the MT865C with 532 hp above.
Technical data
Engine
| Engine model | C18 ACERTcorrect |
|---|---|
| Power | 517.1 hp (380.3 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 18,107.7 cm³correct |
| Aspiration | Turbocharged and Air-to-Air Aftercooledcorrect |
Dimensions and weights
| Ground clearance | 366correct |
|---|---|
| Unladen weight | 19,141.6 kgcorrect |
Drivetrain and chassis
| Gearbox type | powershift transmissioncorrect |
|---|---|
| Forward gears | 16correct |
| Reverse gears | 4correct |
| Top speed | 39.6 km/hcorrect |
| System voltage | 12 Vcorrect |
Working data
| Pump flow | 164.7 l/mincorrect |
|---|---|
| Hydraulic pressure | 199.9correct |
| Fuel tank capacity | 1,254.1 lcorrect |
Other data
| Height | 3,511.3correct |
|---|
Where this model stands
Power-to-weight ratio: 19.9 kW/t (380 kW / 19.1 t)
Power class: Heavy (> 180 hp)
Stronger than 100% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Challenger MT865B have?
The Challenger MT865B delivers 517 hp.
How much does the Challenger MT865B weigh?
The unladen weight is 19,142 kg.
What engine does the Challenger MT865B have?
6 cylinders, 18,108 cm³ displacement.
How fast does the Challenger MT865B go?
Top speed is 39.6 km/h.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
