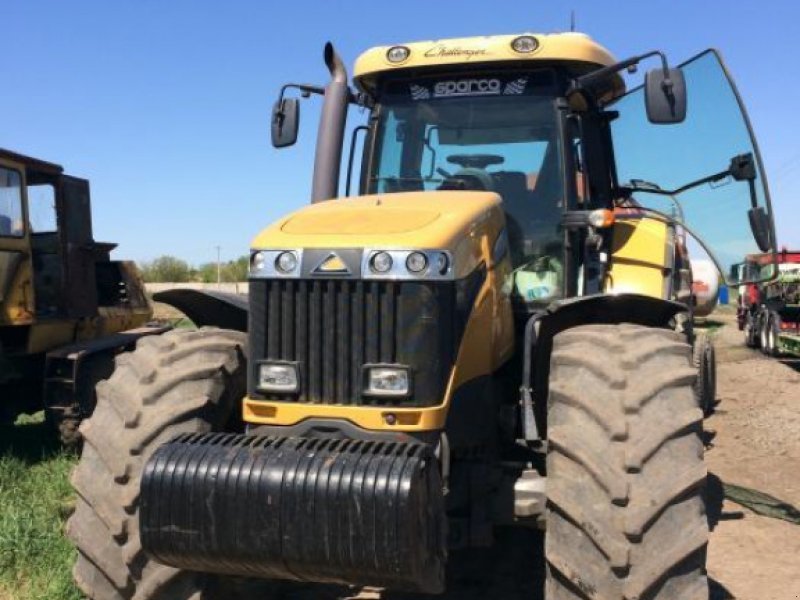

Challenger MT545B MFWD 2WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a tractor, the Challenger MT545B MFWD belongs to the Challenger 2WD Tractor series. The engine is a six-cylinder unit displacing 6.6 litres. Rated power is reached at 2,200 rpm.
It will not go faster than 40 km/h — a working pace, not a travelling one. It measures 2.06 m across. Unladen, it tips the scales at 5,420 kg.
Technical data
Engine
| Engine model | C6.6 ACERTcorrect |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,600.7 cm³correct |
| Aspiration | Turbocharged and Aftercooledcorrect |
| Coolant capacity | 25.7 lcorrect |
Dimensions and weights
| Width | 2,060.4correct |
|---|---|
| Wheelbase | 2,828.5correct |
| Ground clearance | 392.2correct |
| Unladen weight | 5,420 kgcorrect |
Drivetrain and chassis
| Gearbox type | Auto Powercorrect |
|---|---|
| Top speed | 40.2 km/hcorrect |
| System voltage | 24 Vcorrect |
Working data
| Pump flow | 110.2 l/mincorrect |
|---|---|
| Hydraulic oil capacity | 70 lcorrect |
| Fuel tank capacity | 270.3 lcorrect |
Frequently asked questions
How much does the Challenger MT545B MFWD weigh?
The unladen weight is 5,420 kg.
What engine does the Challenger MT545B MFWD have?
6 cylinders, 6,601 cm³ displacement.
How fast does the Challenger MT545B MFWD go?
Top speed is 40.2 km/h.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 16 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
