Ceg Premium DG 280M-65-2
Series: DG
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
CEG Premium DG – three-phase motor range from the Italian maker in Vicenza, manufactured entirely in China, frame sizes 80 to 355, 0.75 to 160 kW, 2- to 8-pole
This page gathers the Premium DG range motors from CEG as listed in the Australian energy-efficiency register. CEG is an Italian electric-motor maker from Vicenza in the Veneto; the Premium DG range itself, however, is according to the register entries manufactured entirely in China. The type designations, such as DG 100 L-28-2 or DG 160L-42-4, follow the scheme DG <frame size> <length>-<digit sequence>-<pole count>.
Read on 3 more paragraphs
The register lists here 68 versions with 0.75 to 160 kW, two- to eight-pole, full-load efficiencies from 77.1 to 96.6% and at 75% load from 75.9 to 96.8%. Frame sizes run from 80 to 355, almost all motors are recorded with IP56 protection. Testing followed AS/NZS 1359.5:2004 throughout, with test method B; none of the 68 motors reaches a documented High Efficiency Level under GEMS.
Marketed as a "Premium" line, the DG range supplements CEG's programme, used chiefly in pumps, fans, compressors and conveying plant in the European and Australian markets, competing with larger Italian and international suppliers.
When buying used, what matters is bearing condition and a checked insulation resistance of the winding, visible corrosion on the terminal box and fan cover, the condition of shaft and key, and a legible nameplate with frame size and pole count; since none of the motors carries a High Efficiency classification, actual efficiency under variable-speed drive operation should be checked case by case. Spares run through CEG's European distribution.
Sources: SpecCodex register, model data: CEG Premium DG
Technical data
Engine
| Rated output | 110 kWcorrect |
|---|
Dimensions and weights
| Weight | 630 kgcorrect |
|---|
Electrical data
| Rated voltage | 400/690 Vcorrect |
|---|---|
| Number of poles | 2correct |
| Protection class | IP56correct |
| Frame size | 280 M (foot)correct |
| Mounting (IEC 60034-7) | B3, B34, B35, B5, B6, B7, B8, V1, V3, V15, V18, V19, V36, V4correct |
| Efficiency at full load | 95.6 %correct |
| Efficiency at 75 % load | 95.5 %correct |
| Efficiency at half load | 94.5 %correct |
Origin and approval
| Country of manufacture | Chinacorrect |
|---|
Other data
| Standard applied | AS/NZS 1359.5:2004correct |
|---|---|
| Test method | AS/NZS 1359.102.3:2000correct |
Frequently asked questions
How much power does the Ceg Premium DG 280M-65-2 have?
The Ceg Premium DG 280M-65-2 delivers 110 kW.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- Check the ingress rating against the installation site — outdoors or in dust the demands differ.
- Hold the mounting form and dimensions against the existing seat before ordering.
- The pole count sets the speed — when replacing an older unit, compare this first.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 24 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Other models in this series
DG 100 L-28-2
DG 100 L1-28-4
DG 100 L2-28-4
DG 100L-28-6
DG 100L1-28-8
DG 112 M-28-2
DG 112 M-28-4
DG 112 M-28-6
DG 112M-28-8
DG 1132 S1-38-2
DG 132 M-38-2
DG 132 M-38-4
Sources: Energy Rating — Australian government equipment register (retrieved August 2026) · How we check the data

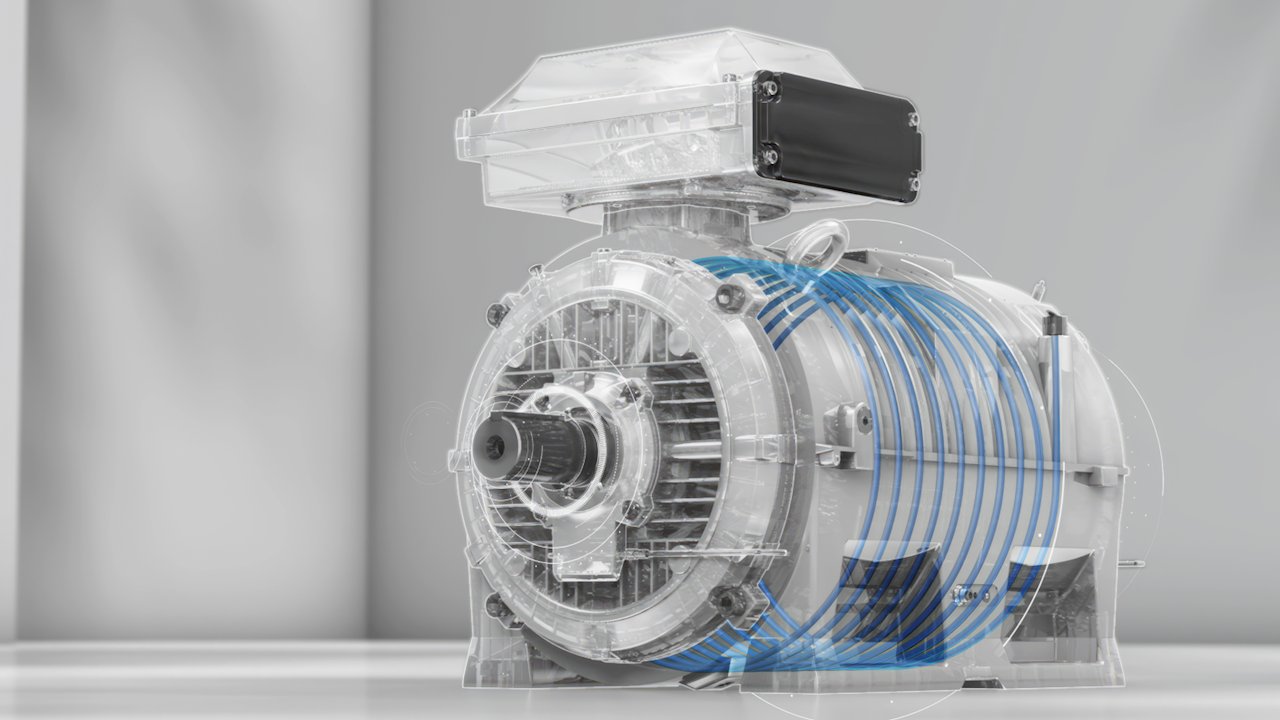

Electric motor in 3D section
