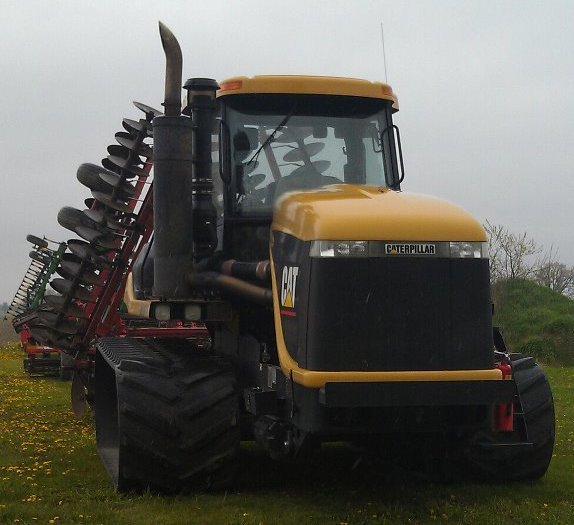

Caterpillar Challenger 75E
Built: 1997-2001 · Series: Challenger
← Predecessor: Challenger 75D · Successor: Challenger MT755 →
More machines from model year 1997
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Caterpillar Challenger — Cat's rubber-track tractor, now built by AGCO
The Challenger line covers 15 models in the database from 149 to 310 kW, consistently with six-cylinder engines — a power class that clearly points to large farm tractors rather than construction machines: the Challenger was Caterpillar's entry into rubber-tracked agricultural tractors.
Read on 4 more paragraphs
Cat launched the line in 1986 with the Challenger 65, fitted with its own Mobile-Trac System — sprung rubber tracks combining the flotation and pulling power of steel tracks with tyre-like road manners. In 2002 Caterpillar sold the entire Challenger tractor business to AGCO, licensing the name and livery — since then the line has continued under the Challenger brand at AGCO, while Caterpillar itself refocused on construction equipment.
Challenger tractors were, and still are, used mainly in large-scale row-crop farming, where the soil-friendliness of rubber tracks combined with high drawbar pull is the deciding factor.
For an older, originally Cat-built Challenger (pre-2002), the condition of the rubber track undercarriage and the suspension components matters most.
In short: reading "Caterpillar Challenger" historically means buying a farm tractor, not a construction machine — and depending on the build year, either an original Cat product or a later AGCO product under Cat licence.
Sources: SpecCodex register, model data: Caterpillar Challenger, — Challenger Tractor (Wikipedia), — Why did Caterpillar sell off the Challenger line? (The Western Producer)
Technical data
Engine
| Engine make | Caterpillarcorrect |
|---|---|
| Engine model | 3,176 Ccorrect |
| Fuel | dieselcorrect |
| Power | 340 hp (250 kW)correct |
| Cylinders | 6correct |
| Displacement | 629 cu incorrect |
| Bore | 4.92 in (125 mm)correct |
| Stroke | 5.51 in (140 mm)correct |
| Cooling | water-cooledcorrect |
Drivetrain and chassis
| Drive | tracked undercarriagecorrect |
|---|---|
| Forward gears | 10correct |
| Reverse gears | 2correct |
Working data
| Lifting capacity | 5,985 kgcorrect |
|---|---|
| Lifting capacity | 13194 lbs (5984.7 kg)correct |
| Fuel tank capacity | 280 galcorrect |
Origin and approval
| Plant | USAcorrect |
|---|
Other data
| Linkage category | Cat III and Cat IV Narrowcorrect |
|---|---|
| PTO speed | 1,000correct |
| Predecessor | Caterpillar Challenger 75Dcorrect |
| Successor | Challenger MT755correct |
More machines with this engine (Caterpillar 3176, 2)
Frequently asked questions
How much power does the Caterpillar Challenger 75E have?
The Caterpillar Challenger 75E delivers 340 hp.
What engine does the Caterpillar Challenger 75E have?
6 cylinders, Diesel.
How much does the rear linkage of the Caterpillar Challenger 75E lift?
The rear linkage lifts 5,985 kg.
When was the Caterpillar Challenger 75E built?
Production years: 1997-2001.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 23 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
