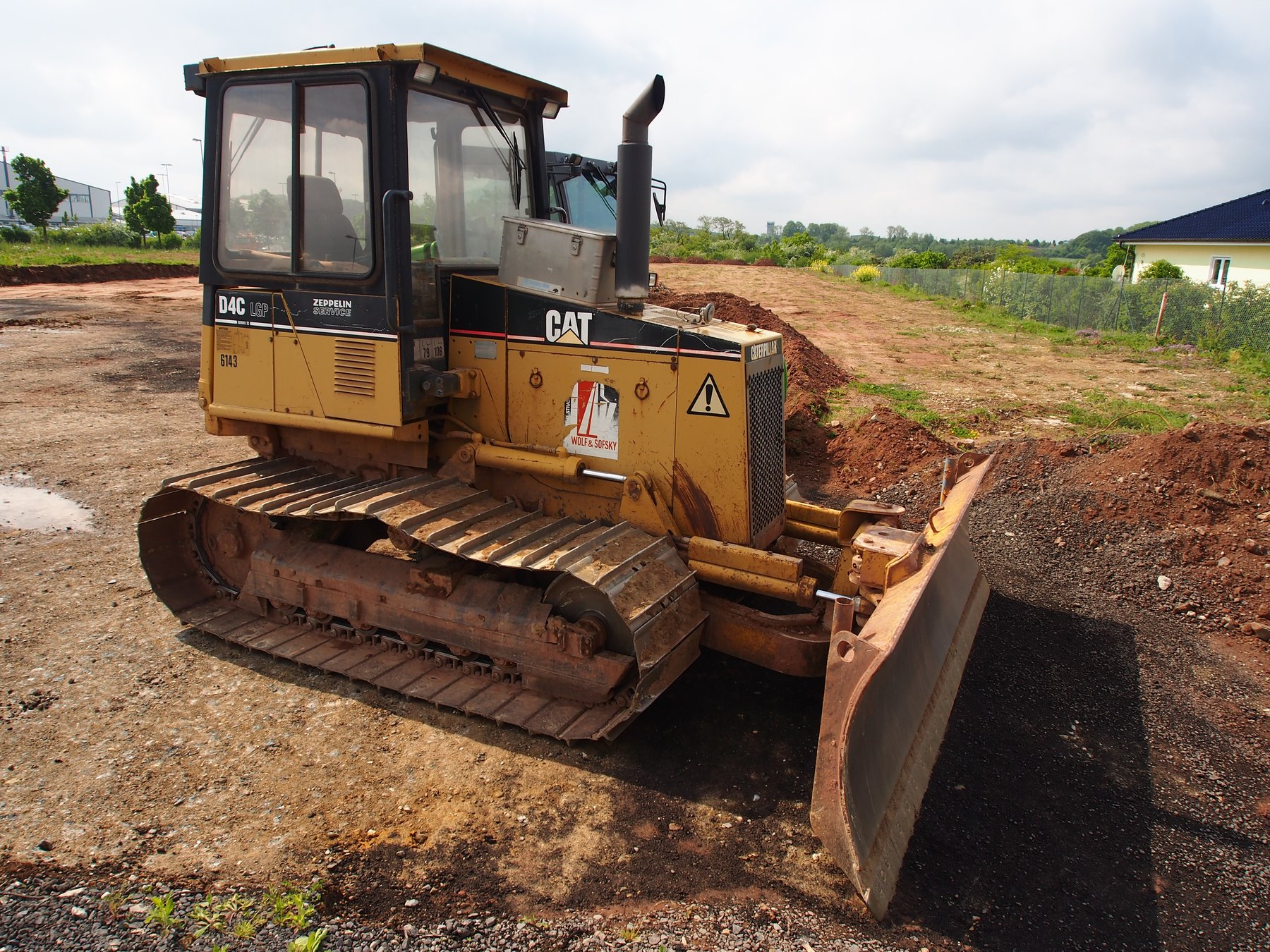

Caterpillar D4C LGP Series III Hystat Crawler
Series: D4C
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Caterpillar D4C — one model designation, used twice
At 59 to 60 kW, 7.3 to 7.9 tonnes and 5.0 to 5.2 litres of displacement, the D4C sits one class above the D3C in Caterpillar's line-up. Eight live models are on record, including D4C Series II and Series III plus LGP and XL variants, some with hydrostatic drive (Hystat) instead of steering clutches.
Read on 4 more paragraphs
The D4C designation was used twice at Caterpillar: an earlier D4C, per Caterpillar's version overview, ran 1959 to 1963, then replaced by the D4D, D4E and D4H. The models on record in this database, however, belong to a later, technically separate D4C line: Series II ran from 1990, Series III from 1993 — sold alongside the large D4H/D5 line as a more compact offering within the C-programme.
Like the smaller D3C, the D4C mainly sees use in compact earthworks and site-clearing jobs where the large standard dozers would be too big or too heavy for the ground.
For a used Hystat variant, check the hydrostatic drive unit closely, since it's more prone to costly repairs than the simpler steering clutches on the standard versions; otherwise the same wear points apply as on the D3C — track links, rollers, final drives.
In short: a D4C found in this database is the compact C-series unit from the 1990s, not the like-named model from the 1960s.
Sources: SpecCodex register, model data: Caterpillar D4C, — Caterpillar D4 (Wikipedia)
Technical data
Engine
| Engine model | Cat 3046correct |
|---|---|
| Power | 89.2 hp (60.4 kW)correct |
| Rated speed | 2,400 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 4,998.1 cm³correct |
| Aspiration | Naturalcorrect |
| Coolant capacity | 21.2 lcorrect |
| Engine oil capacity | 13.2 lcorrect |
Dimensions and weights
| Height | 2,730 mmcorrect |
|---|---|
| Ground clearance | 374.9 mmcorrect |
| Unladen weight | 7,785 kgcorrect |
Drivetrain and chassis
| Gearbox type | hydrostatic transmissioncorrect |
|---|---|
| Forward gears | 3correct |
| Reverse gears | 3correct |
Working data
| Pump flow | 66.6 l/mincorrect |
|---|---|
| Hydraulic pressure | 172.4 barcorrect |
| Fuel tank capacity | 157.1 lcorrect |
Other data
| Cab height | 2,731 mmcorrect |
|---|---|
| System voltage | 12 Vcorrect |
More machines with this engine (Cat 3046, 13)
Where this model stands
Power-to-weight ratio: 7.8 kW/t (60 kW / 7.8 t)
Stronger than 22% of the mining equipment in the register — out of 944 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Caterpillar D4C LGP Series III Hystat have?
The Caterpillar D4C LGP Series III Hystat delivers 89.2 hp.
How much does the Caterpillar D4C LGP Series III Hystat weigh?
The unladen weight is 7,785 kg.
What engine does the Caterpillar D4C LGP Series III Hystat have?
6 cylinders, 4,998 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
