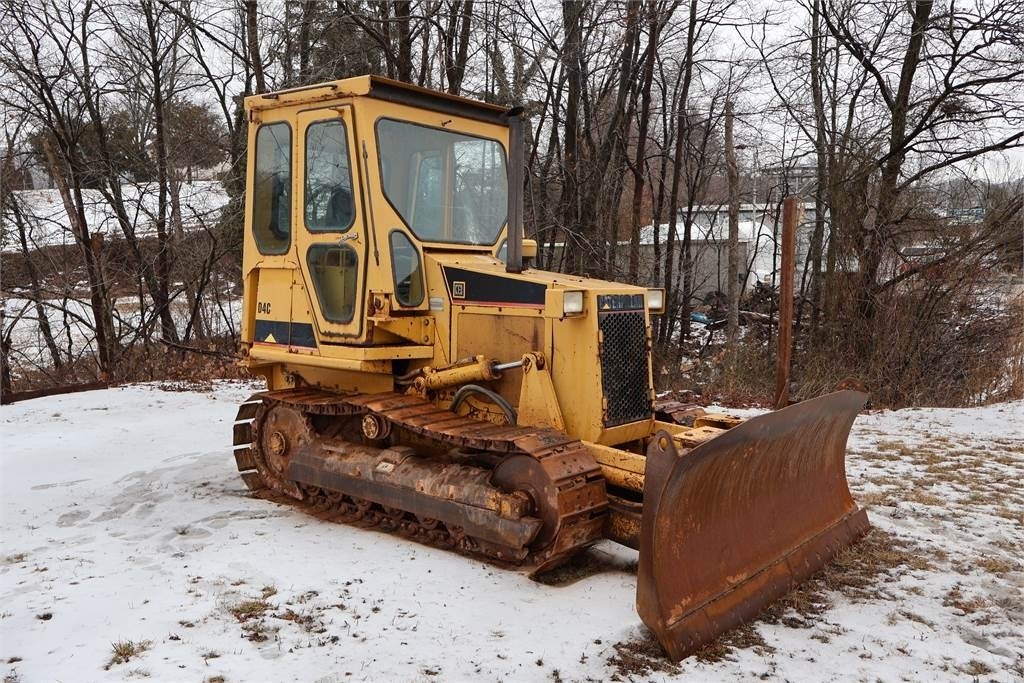

Caterpillar D4C Series II Crawler

Series: D4C

Source: https://www.ritchielist.com/construction/dozers-crawler-doze

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Caterpillar Crawler Tractor series from Caterpillar includes the D4C Series II. The engine delivers 81.1 hp (59.7 kW), with a displacement of 5,201.3 cm³. The unladen weight is 7,581 kg. Ground clearance is 292.6 mm. The tank holds 114.3 litres. The gearbox has 3 forward gears. There are also 3 reverse gears. The pump delivers 55.3 l/min. Working pressure is 172.4 bar. The engine fitted is the 3,204. The Caterpillar Crawler Tractor series covers 152 models. Rated output within it ranges from 48.7 to 948 hp; the D4C Series II sits at the bottom of that range with 81.1 hp. Its immediate neighbours are the D3C XL Series III below it with 79.1 hp and the D4E LGP above it with 81.6 hp. 1091 Caterpillar models across 47 series are on record. The model is listed under Mining equipment. 13 verified figures from 1 source are on file.

Technical data

Engine

Engine model3,204correct
Power81.1 hp (59.7 kW)correct
Displacement5,201.3 cm³correct

Dimensions and weights

Ground clearance292.6correct
Unladen weight7,581 kgcorrect

Drivetrain and chassis

Gearbox typepowershift transmissioncorrect
Forward gears3correct
Reverse gears3correct

Working data

Pump flow55.3 l/mincorrect
Hydraulic pressure172.4correct
Fuel tank capacity114.3 lcorrect

Other data

Cab height2,660.9correct

More machines with this engine (Caterpillar 3204, 37)

Where this model stands

Power-to-weight ratio: 7.9 kW/t (60 kW / 7.6 t)

Stronger than 20% of the mining equipment in the register — out of 944 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Caterpillar D4C Series II have?

The Caterpillar D4C Series II delivers 81.1 hp.

How much does the Caterpillar D4C Series II weigh?

The unladen weight is 7,581 kg.

What engine does the Caterpillar D4C Series II have?

5,201 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
