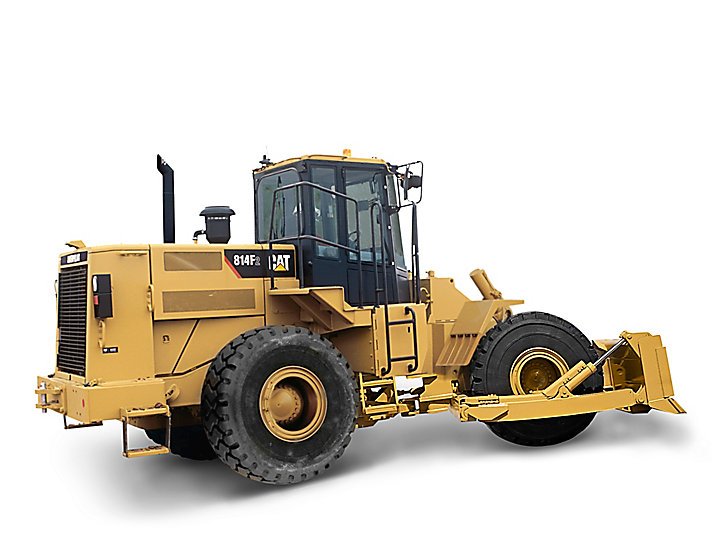

Caterpillar 814F

Series: Caterpillar Wheel Dozer

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Caterpillar Wheel Dozer series from Caterpillar includes the 814F. The engine delivers 257.5 hp (179 kW), has 6 cylinders, with a displacement of 10,300.9 cm³. Rated speed is 2,100 rpm. The unladen weight is 21,716.6 kg. The wheelbase measures 3,352.8 mm. Ground clearance is 365.8 mm. The tank holds 446.3 litres. The gearbox has 4 forward gears. There are also 4 reverse gears. The hydraulic tank holds 88.2 litres. The cooling system holds 55.3 litres. The oil fill is 34.1 litres. The electrical system runs on 24 V. The engine fitted is the Cat 3176C ATAAC. Tyre size: 23,5-25 12PR. The Caterpillar Wheel Dozer series covers 16 models. Rated output within it ranges from 219 to 919.6 hp; the 814F sits at the bottom of that range with 257.5 hp. Its immediate neighbours are the 814B below it with 219 hp and the 824C above it with 319.4 hp. 1091 Caterpillar models across 47 series are on record. The model is listed under Mining equipment. 18 verified figures from 1 source are on file.

Technical data

Engine

Engine modelCat 3176C ATAACcorrect
Power257.5 hp (179 kW)correct
Rated speed2,100 rpmcorrect
Cylinders6correct
Displacement10,300.9 cm³correct
Coolant capacity55.3 lcorrect
Engine oil capacity34.1 lcorrect

Dimensions and weights

Wheelbase3,352.8correct
Ground clearance365.8correct
Unladen weight21,716.6 kgcorrect

Drivetrain and chassis

Forward gears4correct
Reverse gears4correct
Tyre size23.5-25 12PRcorrect
System voltage24 Vcorrect

Working data

Hydraulic oil capacity88.2 lcorrect
Fuel tank capacity446.3 lcorrect

Other data

Height3,328.4correct

Where this model stands

Power-to-weight ratio: 8.2 kW/t (179 kW / 21.7 t)

Stronger than 62% of the mining equipment in the register — out of 945 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Caterpillar 814F have?

The Caterpillar 814F delivers 258 hp.

How much does the Caterpillar 814F weigh?

The unladen weight is 21,717 kg.

What engine does the Caterpillar 814F have?

6 cylinders, 10,301 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
