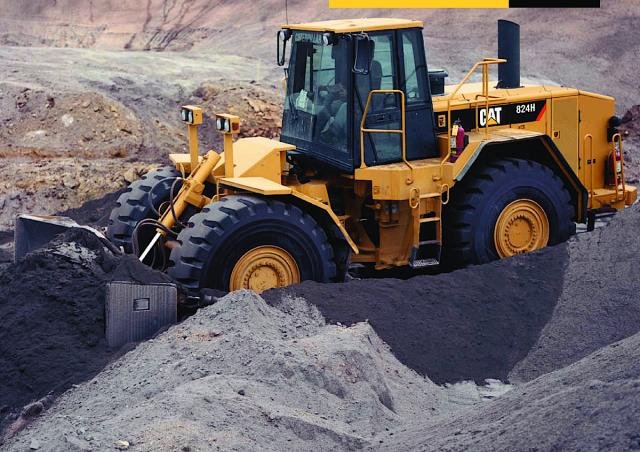

Caterpillar 824H

Series: Caterpillar Wheel Dozer

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the 824H, Caterpillar offers a model from the Caterpillar Wheel Dozer series. The engine delivers 406.6 hp (264 kW), with a displacement of 15,207.2 cm³. Rated speed is 1,800 rpm. The unladen weight is 28,723.7 kg. The wheelbase measures 3,700.3 mm. Ground clearance is 356.6 mm. The tank holds 700.3 litres. The gearbox has 4 forward gears. There are also 4 reverse gears. The hydraulic tank holds 87.8 litres. The cooling system holds 82.9 litres. The oil fill is 34.1 litres. The engine fitted is the Cat C15 ACERT. Tyre size: 29,5-25 L-3. The Caterpillar Wheel Dozer series covers 16 models. Rated output within it ranges from 219 to 919.6 hp; the 824H sits in the lower part of that range with 406.6 hp. Its immediate neighbours are the 824C below it with 319.4 hp and the 834B above it with 456.2 hp. 1091 Caterpillar models across 47 series are on record. The model is listed under Mining equipment. 16 verified figures from 1 source are on file.

Technical data

Engine

Engine modelCat C15 ACERTcorrect
Power406.6 hp (264 kW)correct
Rated speed1,800 rpmcorrect
Displacement15,207.2 cm³correct
Coolant capacity82.9 lcorrect
Engine oil capacity34.1 lcorrect

Dimensions and weights

Wheelbase3,700.3correct
Ground clearance356.6correct
Unladen weight28,723.7 kgcorrect

Drivetrain and chassis

Forward gears4correct
Reverse gears4correct
Tyre size29.5-25 L-3correct

Working data

Hydraulic oil capacity87.8 lcorrect
Fuel tank capacity700.3 lcorrect

Other data

Height3,700.3correct

Where this model stands

Power-to-weight ratio: 9.2 kW/t (264 kW / 28.7 t)

Stronger than 76% of the mining equipment in the register — out of 945 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Caterpillar 824H have?

The Caterpillar 824H delivers 407 hp.

How much does the Caterpillar 824H weigh?

The unladen weight is 28,724 kg.

What engine does the Caterpillar 824H have?

15,207 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
